On-A-Roll Lifter Standard Plus | 33.5" Lift Height | 61586
Details
Details

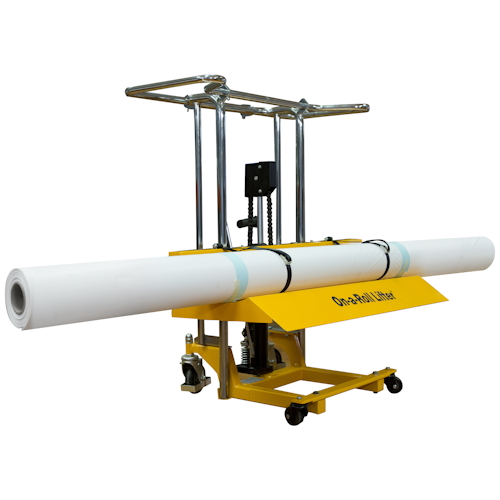

On-A-Roll® Lifter Standard Plus
Holds rolls securely. Moves them easily.
Manual Lifting
Save Your Back
No pulling. No heaving. No hefting. In minutes, with no strain to the back, you can lift heavy or wide rolls associated with today's larger and faster print runs. The On-A-Roll® Lifter's sturdy steel construction allows the lifting of media up to 660 lbs and up to 16' 5" wide.
Save Money
Avoid costly and dangerous mishandling mistakes that result in damaged media.
Save Time
What was once a two-person job becomes manageable by one, allowing a single employee to safely handle oversized and heavy media.
Save Space
Sleek and solid, the On-A-Roll® Lifter is designed to operate in the tightest of shops, even those with limited floor space. The On-A-Roll® Lifter has a 4" clearance on the bottom fork, allowing it to work with most brands of printers.
Designed specifically for sign makers and other businesses with the need to handle wide or heavy media rolls with a larger tray, the On-A-Roll® Lifter Standard Plus enables users to quickly and effortlessly lift media as heavy as 660 lbs (300 kg) and as wide as 16 feet 5 inches (5 m), with diameters up to 15.75 inches (40 cm). The ergonomic pull bar allows users to maneuver around tight corners and through narrow passages.
Outstanding Features
Nylon Safety Straps
Nylon safety straps allow solo users to pull media rolls of up to 660 lbs into the securing tray for transport.
Foot Pump
The easy-to-use foot pump allows users to raise material for transport with minimal effort.
Rotating Casters
Heavy-duty rotating casters allow users to navigate through standard doors and narrow passages.
Ergonomic Push Bar
Ergonomic push bar permits easy maneuvering of large, heavy rolls.
Efficient Loading
Slide media rolls directly up to the printer for efficient loading.
Optional Roller Platform
Model #63161 optional roller platform allows operators to feed rolls directly into their machines from the lifter.
Standard Features
- Extended nylon safety straps for leverage and secure transport
- Concave trough design stabilizes rolls during movement
- Smooth, effortless lifting via foot pump
- 360-degree heavy-duty rotating and locking casters
- Solid steel handle extension for added control in tight spaces
Specifications
| Model | 61586 |
| Roll Weight Capacity | 660 lbs (300 kg) |
| Lift Height | 33.5" H (85 cm) |
| Maximum Roll Width | 16' 5" (500 cm) |
| Maximum Roll Diameter | 15.75" (40 cm) |
| Overall Dimensions (W x D x H) | 47.25" x 31.5" x 47" (80 x 80 x 119.4 cm) |
| Media Lifter Weight | 188 lbs (85 kg) |
| Bottom Fork Clearance | 4" (10 cm) |
| Front Swivel Castors | 2.36" (6 cm) |
| Rear Swivel Castors | 5" (12.7 cm) |
On-A-Roll Lifter Standard & Standard Plus Related Item Numbers:
| 61584 | On-A-Roll Lifter Standard |
| 61586 | On-A-Roll Lifter Standard Plus |
| 63161 | Roller platform for Hi-Rise/Standard/Low Profile (800 x 325) |
