On-A-Roll Lifter Power Jumbo
Details

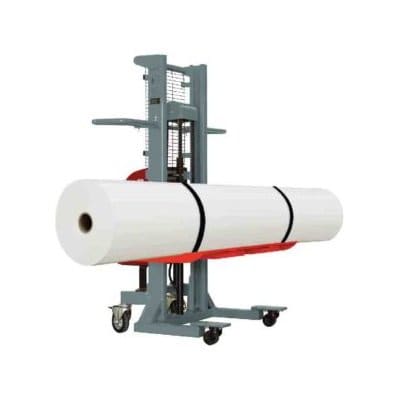

On-A-Roll Lifter Power Jumbo
Motorized lifter designed to handle large and heavy rolls.
With a powerful 12-volt DC motor, the On-a-Roll Lifter Power Jumbo allows one operator to easily lift and lower rolls as heavy as 990 lbs (450 kg), as wide as 16 feet 5 inches (5 m), and with diameters as great as 19.6 inches. This motorized lifter securely positions large and heavy rolls while providing a safe, effortless, and efficient solution for handling.
In any shop handling rolls of print media or other material, a Foster On-a-Roll Lifter is a must-have tool. Here are just a few reasons:
- Material damage is reduced or eliminated when moving rolls.
- Large media and heavy material rolls are handled quickly and easily.
- The powerful 12-volt DC motor makes lifting effortless.
- Nylon safety straps enable one operator to move even the heaviest media rolls.
Outstanding Features of the On-A-Roll Lifter Power Jumbo
- Pair of heavy-duty swivel casters with easy step-on locking brake.
- The large tray is specifically designed to handle large diameter, heavy rolls.
- Key controlled power. Easy to read battery indicator.
- 12V/60AH DC motor
- With the push of a button the Power Jumbo easily lifts and lowers.
- Built-In 110V AC Charger
- 63292 Optional Tray with Roll Ramp for Power Jumbo Lifters.
- Optional Roller Platform is designed to allow operators to feed rolls into their machines directly from the lifter.
- Optional Roller Ball Tray is designed to allow operators to easily load rolls on/off the tray and feed rolls into their machines from the lifter.
Features:
- Powerful DC motor easily lifts and lowers rolls, eliminating manual labor
- Power lift reduces roll changeover time
- Pair of heavy-duty swivel casters with easy step-on locking brake
- Reduces on-the-job injuries and enables all workers to move heavy rolls
- User-friendly operation avoids costly and dangerous handling mistakes that damage media
- Rugged construction ensures long lifter life
- Single-person operation saves labor and time
- 2-year warranty on hydraulics and media tray. 5-year warranty on cross bars. Power operated lifters carry a one-year warranty under normal use for the Battery and Electric.
SPECIFICATIONS | Lifter Power Jumbo (61595) (This Model) | Lifter Power Jumbo 70" (61599) |
---|---|---|
Roll Weight Capacity | 990 lbs (450 kg) | 990 lbs (450 kg) |
Lift Height | 42.25" H (115 cm) | 70" H (178 cm) |
Max. Roll Width | 16" 5" (500 cm) | 16" 5" (500 cm) |
Max. Roll Diameter | 19.6" (50 cm) | 19.6" (50 cm) |
Overall Media Lifter Dimensions | 47.24" W x 45.2" D x 61.2" H (120 x 114.8 x 155 cm) | 47.24" W x 30.51" D x 72.25" H (120 x 77.48 x 183.5 cm) |
Media Lifter Weight | 600 lbs (272 kg) | 600 lbs (272 kg) |
Bottom Fork Clearance | 4.33” (11 cm) | 4.33” (11 cm) |
Electric | 12V/60AH DC motor | 12V/60AH DC motor |
Battery | Maintenance free lead acid battery | Maintenance free lead acid battery |
Charger | Built-In 110V AC charger | Built-In 110V AC charger |
On-A-Roll Lifter Power Jumbo
61595 | On-A-Roll Lifter Power Jumbo |
63119 | Roller Ball Tray for Jumbo/Power Jumbo |
63292 | Tray with Roll Ramp for Jumbo/Power Jumbo |
61595-1 | Roller Platform for Jumbo/Power Jumbo (800 x 495) |
