On-A-Roll Lifter Narrow Web Power Pole Lifter with Roller Spindle 86" Lift Height 61550
Details
Details

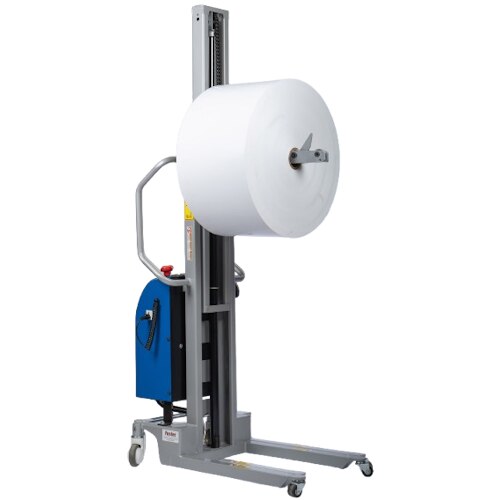

On-A-Roll® Lifter Narrow Web: Power Pole Lifter with Roller Spindle 86"H
Designed for Label Printers and Converters
Motorized Lifting
Narrow Web On-A-Roll® Lifters for label printers and converters provide a fast, safe, and efficient solution for positioning and loading narrow web rolls onto presses and converting machines. Motorized lifting significantly reduces operator effort while improving safety and consistency during roll handling.
User-friendly operation minimizes the risk of costly and dangerous roll handling mistakes that can damage valuable media or cause workplace injuries. With minimal training, operators can confidently and safely handle heavy narrow web rolls.
In any shop that regularly handles rolls of print media or similar materials, the Foster Narrow Web On-A-Roll® Power Pole Lifter is an essential productivity tool. Heavy material rolls are lifted smoothly and positioned accurately, helping streamline workflows and reduce downtime.
The Narrow Web On-A-Roll® Lifter is compatible with many popular flexographic and digital narrow web presses, including Bobst, Edale, Gallus, Mark Andy, MPS, Nilpeter, Omet, and RotaFlex.
Features
- Motorized lifting with manual movement for controlled handling
- Spindle with rollers for smooth roll positioning
- Four swivel casters for easy maneuvering in tight spaces
- Durable Pantone gray 11 finish

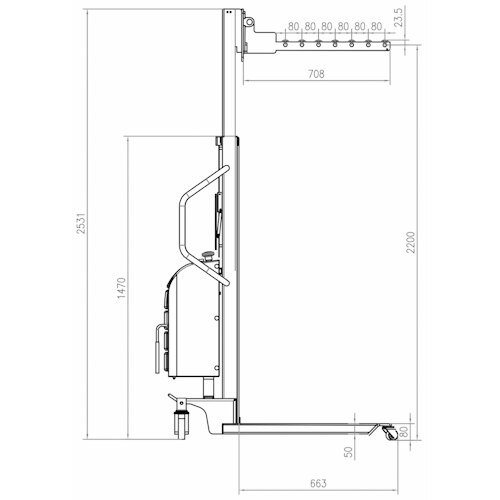

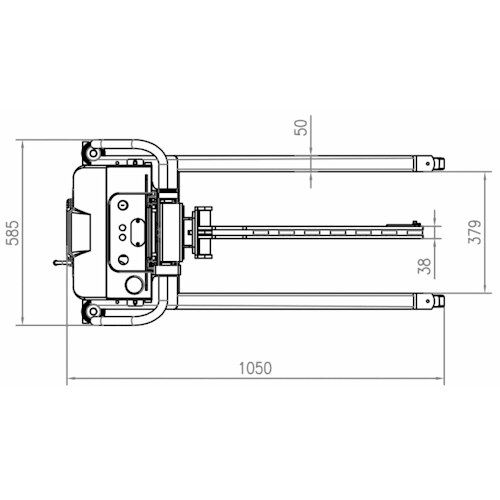

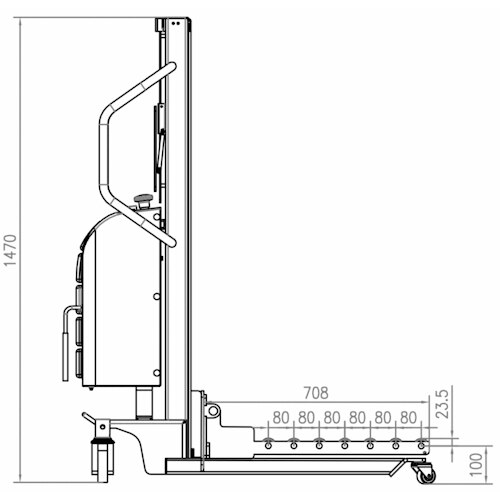

Specifications
| Model | 61550 |
| Roll Weight Capacity | 440 lbs (200 kg) |
| Lift Height | 86" (220 cm) from floor to roll center |
| Maximum Roll Width | 26" (66 cm) |
| Maximum Roll Diameter | 30" (76 cm) |
| Overall Dimensions (W x D x H) | 23"W x 41.34"D x 57.87"H (58.5 x 105 x 147 cm) |
| Roller Spindle Length | 27.9" (70.8 cm) |
| Media Lifter Weight | 299 lbs (136 kg) |
| Bottom Fork Clearance | 3.15" (8 cm) |
