On-A-Roll Lifter Jumbo 70" Lift Height
Details

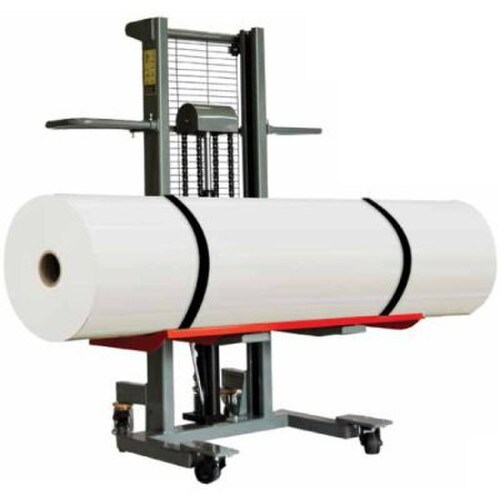

On-A-Roll Lifter Jumbo 70" Lift Height
Specifically designed to handle large diameter, heavy rolls.
One operator can easily lift rolls as heavy as 990 lbs (450 kg), as wide as 16 feet 5 inches (5 m), and with diameters as great as 19.6 inches (50 cm). Designed for EFI, Reggiani and Matan printers, the Foster On-a-Roll Lifter Jumbo is perfect for businesses operating grande- or extra-wide printers, fabric printers, or those handling floor coverings and similar materials.
In any shop handling rolls of print media or other material, a Foster On-a-Roll Lifter is a must-have tool. Here are just a few reasons:
- Material damage is reduced or eliminated when moving rolls.
- Large media and heavy material rolls are handled quickly and easily.
- The simple hydraulic foot pump makes lifting effortless.
- Nylon safety straps enable one operator to move even the heaviest media rolls.
Outstanding Features of the On-A-Roll Lifter Jumbo
- Pair of heavy-duty swivel casters with easy step-on locking brake.
- The large tray is specifically designed to handle large diameter, heavy rolls.
- Ergonomic push bar permits easily maneuvering of large, heavy rolls.
- Rugged construction ensures long lifter life.
- Optional Tray with Roll Ramp for Jumbo Lifters.
- Optional Roller Platform is designed to allow operators to feed rolls into their machines directly from the lifter.
- Optional Roller Ball Tray is designed to allow operators to easily load rolls on/off the tray and feed rolls into their machines from the lifter.
Features:
- Pair of heavy-duty swivel casters with easy step-on locking brake
- Reduces on-the-job injuries and enables all workers to move heavy rolls
- User-friendly operation avoids costly and dangerous handling mistakes that damage media
- Rugged construction ensures long lifter life
- Single-person operation saves labor and time
- Foot pump allows for smooth, effortless lifting within minutes.
- 2-year warranty on hydraulics and media tray. 5-year warranty on cross bars.
| SPECIFICATIONS | 61577 On-A-Roll Lifter Jumbo | 61575 (This Machine) On-A-Roll Lifter Jumbo 70" Lift |
|---|---|---|
| Roll Weight Capacity | 990 lbs (450 kg) | 990 lbs (450 kg) |
| Lift Height | 58.95" H (150 cm) | 70" H (178 cm) |
| Max. Roll Width | 16' 5" (500 cm) | 16' 5" (500 cm) |
| Max. Roll Diameter | 19.6" (50 cm) | 19.6" (50 cm) |
| Overall Media Lifter Dimensions | 47.24" W x 30.51" D x 61.22" H (120 x 77.48 x 155.5 cm) | 47.24" W x 30.51" D x 72.25" H (120 x 77.48 x 183.5 cm) |
| Media Lifter Weight | 295 lbs (134 kg) | 295 lbs (134 kg) |
| Bottom Fork Clearance | 4.33” (11 cm) | 4.33” (11 cm) |
On-A-Roll Lifter Jumbo
| 61577 | On-A-Roll Lifter Jumbo |
| 63119 | Roller Ball Tray for Jumbo/Power Jumbo |
| 63292 | Tray with Roll Ramp for Jumbo/Power Jumbo |
| 61595-1 | Roller Platform for Jumbo/Power Jumbo (800 x 495) |
