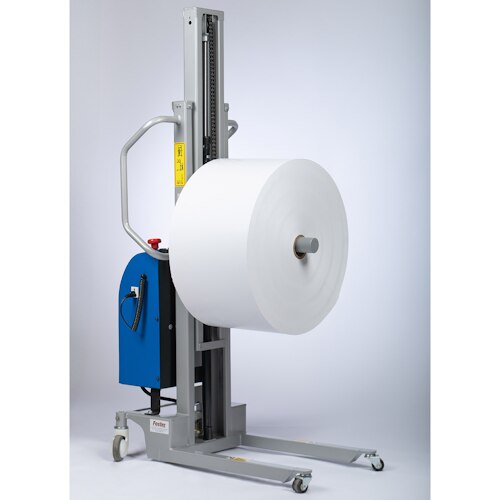

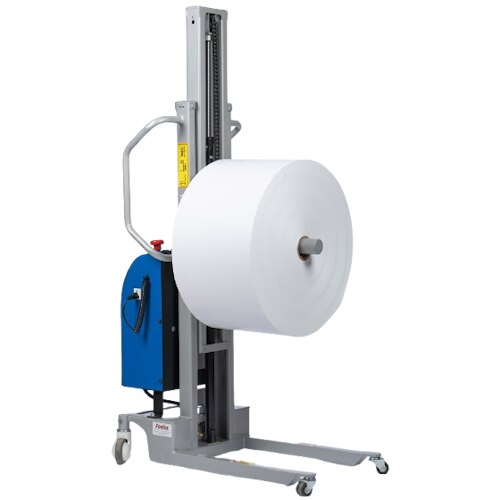

On-A-Roll Lifter Narrow Web: Power Pole Lifter 86" H - 61540
Designed for Label Printers and Converters
The On-A-Roll Lifter Narrow Web Power Pole Lifter is a motorized lifting solution designed to safely position and load narrow web rolls onto presses and converting machines. Built for label printers and converters, this lifter improves workplace safety while minimizing the risk of costly media damage.
User-friendly operation allows operators to handle heavy rolls quickly and efficiently with minimal training. By reducing manual handling, the lifter helps prevent injuries and avoids roll damage caused by improper loading.
In any shop handling rolls of print media or similar materials, a Foster Narrow Web On-A-Roll Lifter is an essential productivity and safety tool.
Compatible Press Brands
Bobst, Edale, Gallus, Mark Andy, MPS, Nilpeter, Omet, RotaFlex, and other narrow web flexographic and digital presses.
Key Features
- Motorized lifting operation
- 4 swivel casters for easy maneuverability
- Supplied with lifting pole
- Pantone Gray 11 finish
- Packed in a protective crate

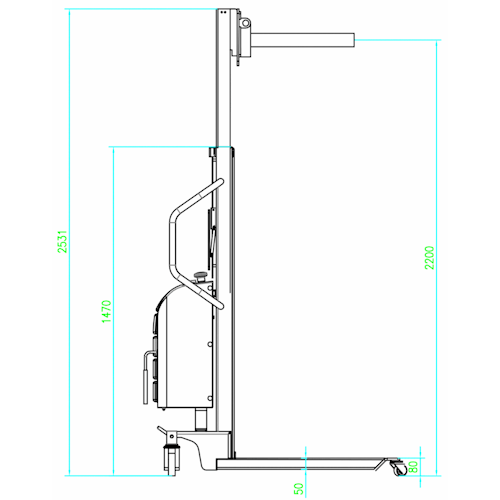

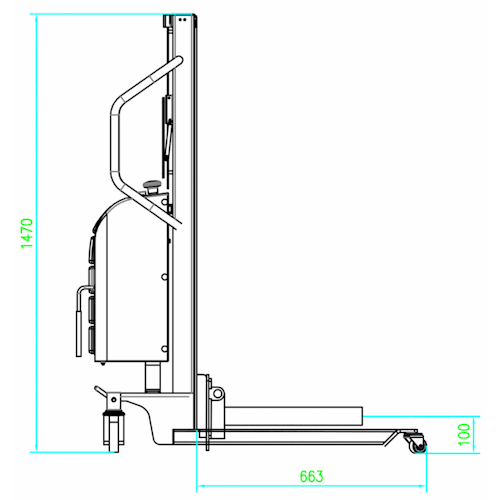

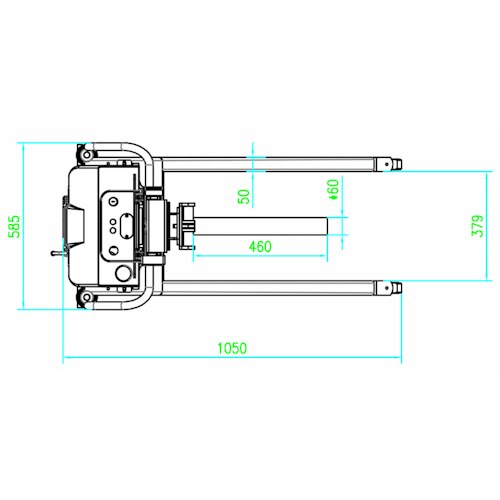

Specifications
| Model Number | 61540 |
| Roll Weight Capacity | 440 lbs (200 kg) |
| Lift Height | 86" (220 cm) from floor to roll center |
| Maximum Roll Width | 26" (66 cm) |
| Maximum Roll Diameter | 30" (76 cm) |
| Overall Dimensions (W x D x H) | 23" x 41.34" x 57.87" (58.5 x 105 x 147 cm) |
| Media Lifter Weight | 295 lbs (134 kg) |
| Pole Length | 18" (46 cm) |
| Pole Diameter | 2.36" (6 cm) |
| Bottom Fork Clearance | 3.15" (8 cm) |
