MBM Triumph 6655 Package CU0491P 25 1/2" Automatic Cutter with Side Tables, Knife, and Sticks

$18,479.00
SKU: MBMT6655-Package
Back

Details

The MBM Triumph 6655 Packages is a programmable cutter with automatic clamp, power back gauge, and digital touchpad. Cutting width is a full 25 1/2 inches. The package includes the cutter, side tables, extra cutting knife, and extra set of cutting sticks.

Comprehensive SCS safety package: patented EASY CUT electronic blade activation bars for true two-hand operation; transparent, electronically controlled front safety guard; safety cover on rear table; main switch and safety lock with key; 24 volt controls (low voltage); patented IDEAL safety drive; automatic blade and clamp return from every position; disc brake for instant blade stop; blade changing device covers cutting edge of blade; blade depth adjustment from outside of machine; blade and cutting stick can be changed without removing covers.

Features:

  • Ergonomic, 37 inch working height
  • Electric blade and clamp drive
  • Electric back gauge drive with touchpad for easy programming
  • Digital measurement display (cm or inches) with multilingual operator guidance, accurate to 1/10 mm or 1/100 inch
  • Stores 99 programs with up to 99 steps in each (up to 15 repeat cuts can be integrated as a single step)
  • Pre-programmed for standard paper sizes
  • Memory key for repeat cuts
  • Automatic SET function for reference measurement and EJECT function for pushing out paper
  • Self-diagnostic system with error indication on display
  • Electronic hand wheel with variable speed control for manual back gauge setting
  • Bright, LED optical cutting line
  • Adjustable, spindle guided back gauge with narrow separations and plastic gliders
  • Dual side guides on front and rear tables
  • High quality, German steel blade
  • Solid steel blade carrier and adjustable blade guides
  • All-metal construction
  • Includes stand with storage shelf, easy-access tool holder, and paper blocking tool
  • Side tables increase work surface
  • UL and C UL approved.

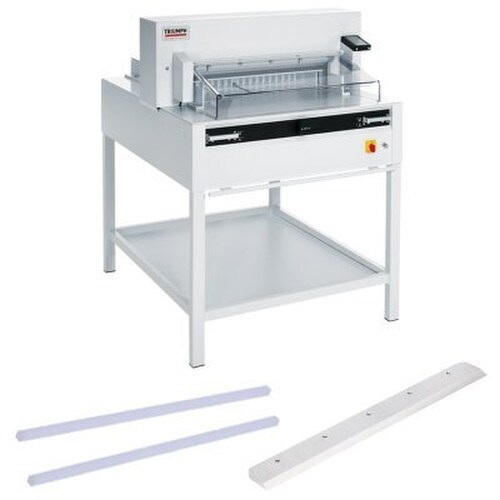

Package Includes: Cutter, Side Tables (CU0495), Cutting Knife (AC0656), Cutting Sticks (AC0679)

Electrical requirements: 115 V, 60 Hz (20 amp dedicated line required)
Motor output, horsepower: 2
Dimensions (D x W x H), inches: 48 x 39 x 51 (61 1/2 W with side tables)
Shipping Weight (Free Shipping!): 793 lbs

Cutting Width:25 1/2"
Cutting Height:3"
Narrow Cut:1"
Length behind Blade:24"
