MBM Triumph 4855 Automatic Paper Cutter 18.7" Cutting Width - CU0419

Professional programmable cutter with automatic clamp, power back gauge, and digital touchpad featuring EASY CUT blade activation.

The MBM Triumph 4855 programmable paper cutter offers advanced, precise, high-volume cutting functionality. Equipped with an automatic clamp and power back gauge, it ensures fast and accurate cuts for various paper sizes. The user-friendly digital touchpad allows for easy programming and control, streamlining operations and enhancing efficiency. Perfect for offices, print shops, and commercial environments, the Triumph 4855 paper cutter provides consistent, high-quality results with minimal effort. Built for durability and reliability, this cutter is ideal for businesses seeking a powerful solution for large-scale paper cutting with precision and ease.

Key Features:

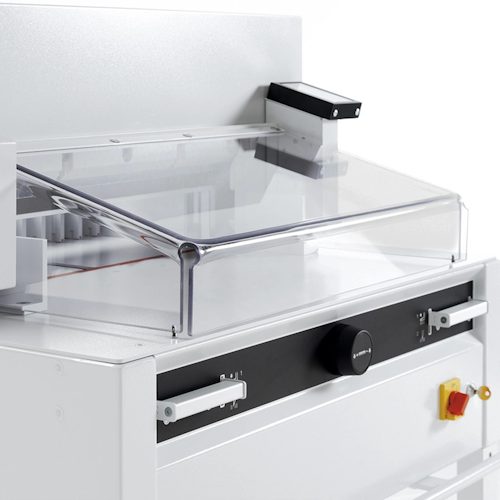

Transparent Safety Guard:

A cut can only be executed if the hinged, electronically controlled safety guard is in the closed position.

Electronic Hand Wheel:

The electronic hand wheel, with infinitely variable speed control, is used for manual back gauge positioning.

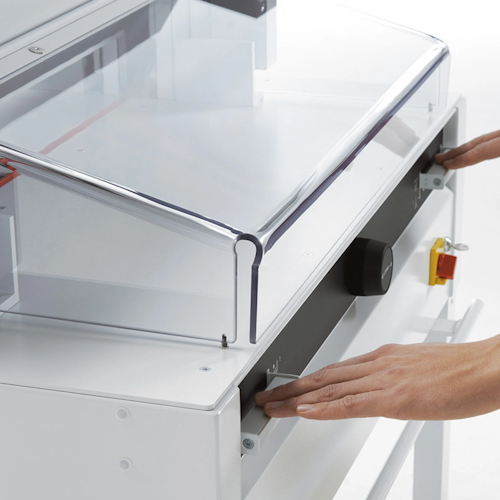

Easy Cut Blade Activation Bars:

Patented EASY CUT blade activation bars ensure true, two-hand operation and allow blade and clamp to be activated independently.

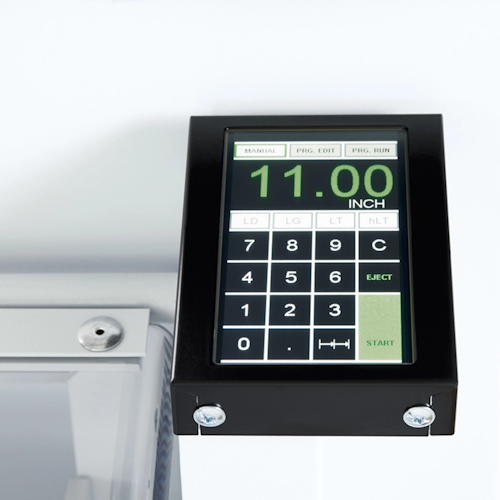

Digital Touchpad:

The programmable control module is equipped with a multilingual touchpad for easy operation. 99 programs with 99 steps in each can be stored in memory.

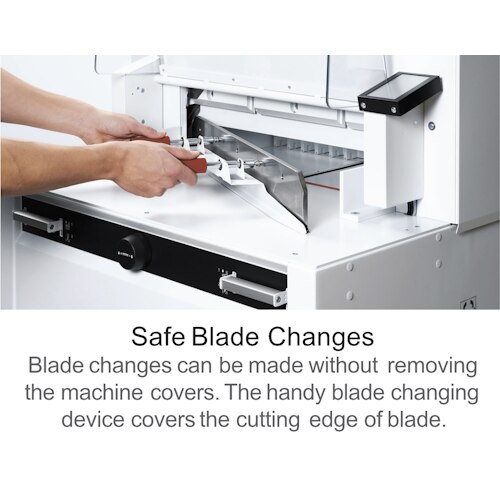

Safe Blade Changes:

Blade changes can be made without removing the machine covers. The handy blade changing device covers the cutting edge of blade.

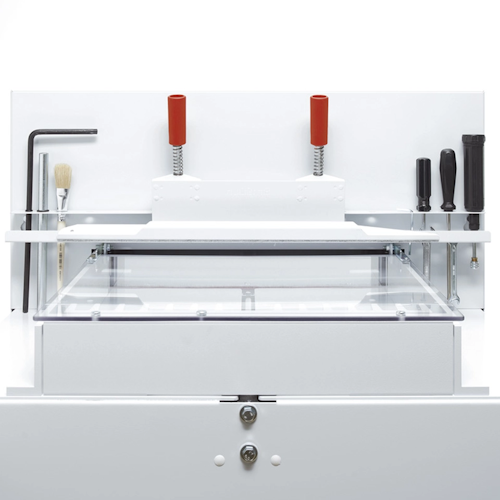

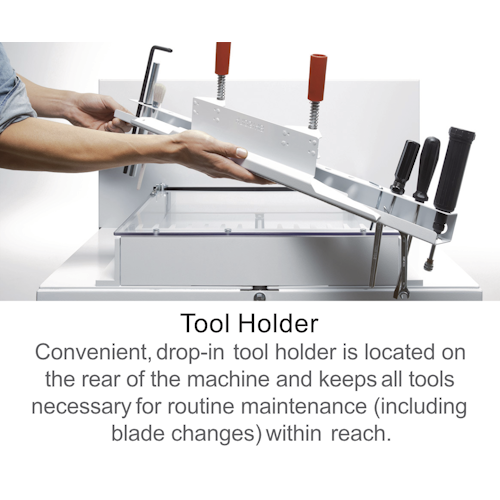

Tool Holder:

Convenient, drop-in tool holder is located on the rear of the machine and keeps all tools necessary for routine maintenance (including blade changes) within reach.

Safety Features:

• Patented EASY CUT electronic blade activation bars for true two-hand operation
• Transparent, electronically controlled front safety guard
• Safety cover on rear table
• Main switch and safety lock with key
• 24 volt controls (low voltage)
• Patented IDEAL safety drive
• Automatic blade return from every position
• Disc brake for instant blade stop
• Blade changing device covers cutting edge of blade
• Blade depth adjustment from outside of machine
• Blade and cutting stick can be changed without removing covers

Features:

• Comprehensive SCS safety package
• Digital measurement display with multilingual operator guidance, accurate to 1/10 mm or 1/100"
• Stores 99 programs with up to 99 steps in each program
• Pre-programmed for standard paper sizes
• Memory key for repeat cuts
• Automatic set function for reference measurement and eject function for pushing out paper
• Self-diagnostic system with error indication on display
• Bright, LED optical cutting line
• Automatic blade and clamp return from every position
• Programmable cutter with automatic clamp, power back gauge, and digital touchpad
• Electric blade and clamp drive
• Electric back gauge drive with touchpad for easy programming
• Stores 99 programs with up to 99 steps in each (up to 15 repeat cuts can be integrated as a single step)
• Electronic hand wheel with variable speed control for manual back gauge setting
• Adjustable, spindle guided back gauge with narrow separations and plastic gliders
• Dual side guides on front and rear tables
• High quality, German steel blade
• Solid steel blade carrier and adjustable blade guides
• All-metal construction
• Includes stand with storage shelf, easy-access tool holder, and paper blocking tool
• Optional side tables increase work surface
• UL and C UL approved

Specifications:
