The MBM 4810 has been replaced by the Triumph 4815 Semi Automatic Cutter

SKU: MBM-4815

Ships via Truck


This is the replacement machine for the Triumph 4810.

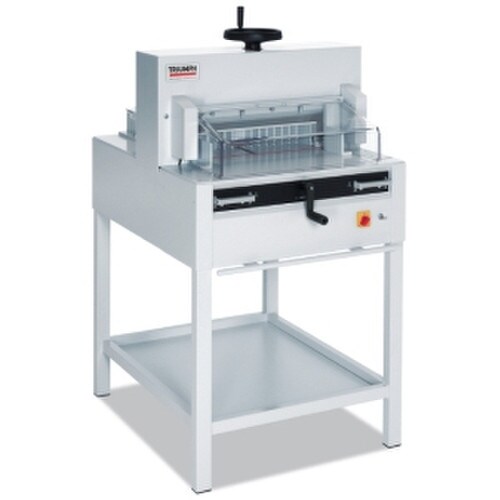

The MBM Triumph 4815 is a powerful, semi-automatic cutter with electric blade drive, manual spindle clamp, and EASY CUT blade activation.


Comprehensive SCS safety packageErgonomic, 37 inch working height
Patented EASY CUT electronic blade activation bars for true two-hand operationElectric blade drive
Transparent, electronically controlled front safety guardSpindle-guided back gauge with calibrated crank
Safety cover on rear tableFront table digital display (cm or inches) for precise back gauge positioning
Main switch and safety lock with keyBright, LED optical cutting line
24 volt controls (low voltage)Adjustable back gauge with narrow separations and plastic gliders
Patented IDEAL safety driveManual spindle clamp is guided on both sides to apply even pressure along entire cutting width
Automatic blade return from every positionDual side guides on front and rear tables
Disc brake for instant blade stopHigh quality, German steel blade
Blade changing device covers cutting edge of bladeSolid steel blade carrier and adjustable blade guides
Blade depth adjustment from outside of machineAll-metal construction
Blade and cutting stick can be changed without removing coversIncludes stand with storage shelf, easy-access tool holder, and paper blocking tool
Optional side tables increase work surfaceUL and C UL approved

Cutting width, inches18 5/8
Cutting height, inches3
Narrow cut, inches1
Length behind blade, inches18

Electrical requirements: 115 V, 60 Hz
Motor output, horsepower: 1.5
Dimensions (D x W x H), inches: 41 1/2 x 30 x 55 1/2 (53 W with side tables)
Shipping weight, pounds: 531 (552 with side tables)

To order the MBM 4815 by phone, call 1-866-455-9900.
