Product Description:
|

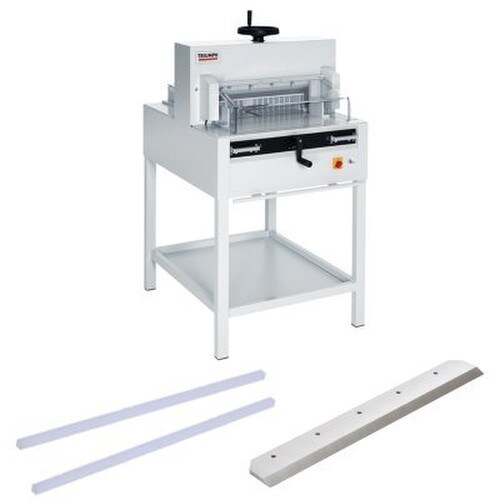

The MBM Triumph 4815 Package is a powerful, semi-automatic cutter with electric blade drive, manual spindle clamp, and EASY CUT blade activation. The package includes the cutter, side tables, extra cutting knife, and extra set of cutting sticks.
Features:
| Comprehensive SCS safety package |
Ergonomic, 37 inch working height |
| Patented EASY CUT electronic blade activation bars for true two-hand operation |
Electric blade drive |
| Transparent, electronically controlled front safety guard |
Spindle-guided back gauge with calibrated crank |
| Safety cover on rear table |
Front table digital display (cm or inches) for precise back gauge positioning |
| Main switch and safety lock with key |
Bright, LED optical cutting line |
| 24 volt controls (low voltage) |
Adjustable back gauge with narrow separations and plastic gliders |
| Patented IDEAL safety drive |
Manual spindle clamp is guided on both sides to apply even pressure along entire cutting width |
| Automatic blade return from every position |
Dual side guides on front and rear tables |
| Disc brake for instant blade stop |
High quality, German steel blade |
| Blade changing device covers cutting edge of blade |
Solid steel blade carrier and adjustable blade guides |
| Blade depth adjustment from outside of machine |
All-metal construction |
| Blade and cutting stick can be changed without removing covers |
Includes stand with storage shelf, easy-access tool holder, and paper blocking tool |
| Side tables increase work surface |
UL and C UL approved |
| Cutting Width: |
18 5/8" |
| Cutting Height: |
3" |
| Narrow Cut: |
1" |
| Length behind Blade: |
18" |
Package Includes: Cutter, Side Tables (CU0495), Cutting Knife (AC0653), Cutting Sticks (AC0675)
Electrical Requirements: 115 V, 60 Hz
Motor Output, Horsepower: 1.5
Dimensions (D x W x H): 41 1/2" x 30" x 55 1/2" (53 W with side tables)
Shipping Weight (Free Shipping!): 552 lbs Item Number: CU0418LP
To order the MBM 4815 by phone, call 1-866-455-9900.
|
 User Manual - MBM Triumph 4815 Package CU0418LP 18 5/8" Semi Automatic Cutter with Side Tables, Knife, and Sticks
|
|
|
|
|
