MBM Triumph 4315 Semi-Automatic Cutter with Digital Display, 16 7/8" Cutting Width
Details
The MBM 4315 is a Semi-Automatic Tabletop is a dependable semi-automatic tabletop cutter with electric blade drive, manual fast-action clamp, and EASY CUT blade activation.
Comprehensive SCS safety package: patented EASY CUT electronic blade activation bars for true two-hand operation; transparent, electronically controlled front safety guard; transparent safety cover on rear table; main switch and safety lock with key; 24 volt controls (low voltage); patented IDEAL safety drive; automatic blade return from every position; disc brake for instant blade stop; blade changing device covers cutting edge of blade; blade depth adjustment from outside of machine; blade and cutting stick can be changed without removing covers.
Features:
- Electric blade drive
- Spindle-guided back gauge with calibrated crank
- Front table digital display (cm or inches) for precise back gauge positioning
- Bright, LED optical cutting line
- Patented lever-activated, fast-action clamp
- Precision side guide
- High quality, German steel blade
- Solid steel blade carrier and adjustable blade guides
- All-metal construction

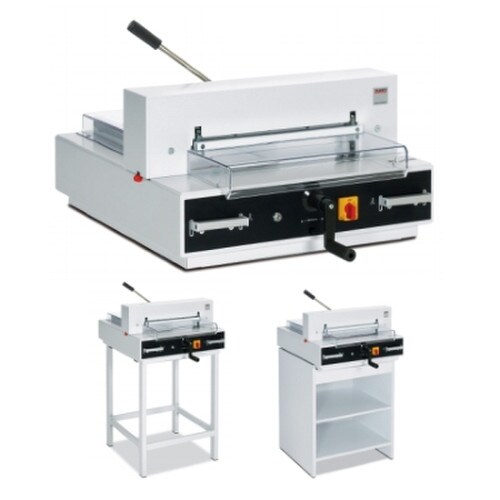

- Optional stand (shown above), or cabinet with storage shelves
- UL and C UL approved
Electrical requirements: 115 V, 60 Hz
Motor output, horsepower: 0.6
Dimensions (D x W x H), inches: 34 1/4 x 25 x 14 (42 3/4 H with stand, 42 1/2 H with cabinet)
Shipping weight, pounds: 191 (217 with stand, 286 with cabinet)
Cutting width, inches | 16 7/8 |
---|---|
Cutting height, inches | 1 1/2 |
Narrow cut, inches | 1 3/8 |
Length behind blade, inches | 17 |
