Product Description:
|
The MBM Triumph 4705 is a manual tabletop cutter with an 18 3/4-inch cutting width and fast-action clamp. SCS features ensure operator safety.
SCS safety features: hinged, transparent safety guard on front table (locks automatically while cutting); transparent safety cover on rear table; safety catch (locks blade lever in up position); blade changing device covers cutting edge of blade; blade depth adjustment from outside of machine; blade and cutting stick can be changed without removing covers.
Features:
- Spindle-guided back gauge with calibrated crank
- Manual spindle clamp is guided on both sides to apply even pressure along entire cutting width
- Front table measurement scale (mm / inches)
- High quality, German steel blade
- Solid steel blade carrier and adjustable blade guides

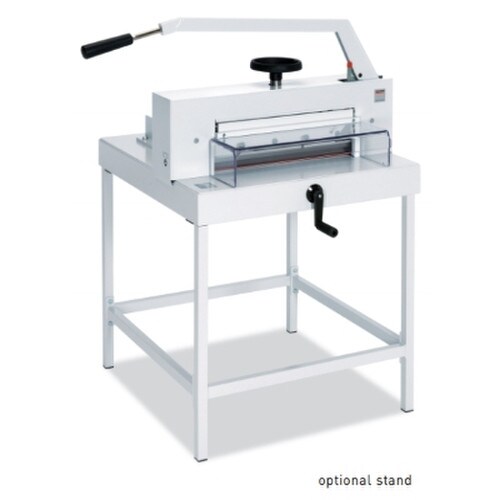

- All-metal construction. Optional stand (shown above)
- UL and C UL approved.
Dimensions (D x W x H), inches: 35 x 39 x 23 (50 H with stand)
Shipping weight, pounds: 297 (320 with stand)
| Cutting width, inches |
18 3/4 |
| Cutting height, inches |
2 3/4 |
| Narrow cut, inches |
1 3/16 |
| Length behind blade, inches |
18 |
|
 User Manual - MBM Triumph 4705 Manual Paper Cutter 18 3/4" Cutting Width
|
|
|
|
|
