Product Description:
|

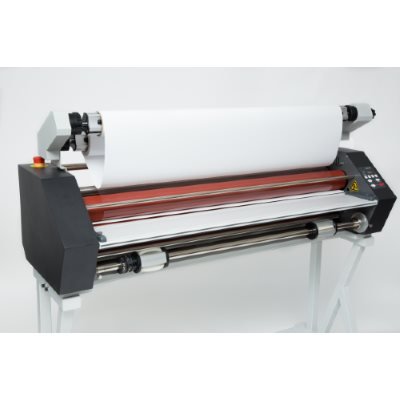

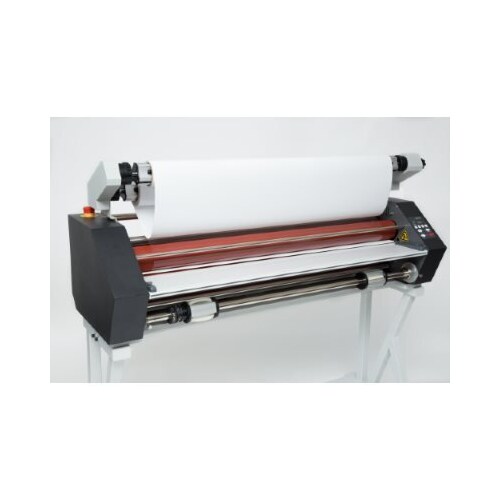

The Phoenix 4400-DHP laminator continues the evolution of the line of Phoenix laminators. The 4400-DHP offers a sleek design full of useful features to complete both thermal and PSA applications in one unit. This laminator was designed to provide long-term durability and reliable performance at a price point which will easily fit into your budget.
Running at a speed of 8 feet per minute with large 4.5" heated rollers, the Phoenix 4400 meets your production requirements while maintaining heat consistency for beautiful output. The 44" width capacity is an ideal match for your digital wide format output for both PSA and thermal finishing. The 4400-DHP will encapsulate or mount in both applications. We also have your safety in mind! Safety photo eye prevents entanglement with unit. When the machine is not being used, it will go into a standby mode after 3 hours and heat will shut off completely after a total of 4 hours.
|
Production
- 8 feet per minute
- 4.5" heated silicone coated rollers
- PSA liner rewind
- Sleep mode and auto shut-off
- Cooling fans ensure flat output
|
Versatile and Quality
- Capacity 44" wide & 1/4“ thick
- Photo eye safety sensor
- Independent heat controls
- Variable Speed
- All metal construction
|
Easy to use
- Simple, easy to use digital control panel
- Gap controller for a variety of thicknesses
- Foot pedal for hands-free operation
- J channel for easy loading on bottom roll
|
Designed for quality lamination with many applications including
Placemats - Trade Show Graphics - Rigid Displays - POP Displays - Flexible Displays - Window Graphics - Banners
Tech Specs:
| Maximum Laminating Width |
44" Wide |
| Silicone Coated Heat Rollers |
4.5" Diameter |
| Independent Tension Controls |
Yes |
| PSA Liner Rewind |
Yes |
| Speed Control |
Variable From 0-8 FPM (feet per minute) |
| Film Thickness |
1.5 To 10 Mil and PSA |
| Foot Pedal |
Yes |
| Dimensions With Stand |
60-1/4" W X 24" D X 52-5/8" H |
| Power Consumption |
3300 Watts |
| Shipping Weight |
508 Lbs |
| Core Diameter |
Accepts 3" and 2-1/4" Cores |
| Independent Heat Controls |
Yes |
| Protective Shield |
Optical Safety Eye |
| Pressure Adjustment |
5 Lever Controls Up To 1/4" |
| Cooling Fans |
Yes |
| Stand |
Included |
| Auto Grip Supply Shafts |
Yes |
| Electrical |
220 VAC, 15 Amps 615P NEMA Plug |
| Weight |
401 lbs |
| Warranty |
1 Year Labor/Parts - Rollers 90 Days |
|
 User Manual - Phoenix 4400 DHP 44" Thermal and PSA Wide Format Laminator
|
|
|
|
|
