On-A-Roll Lifter Power Universal Hi-Rise

SKU: FS-61565

Ships via Truck

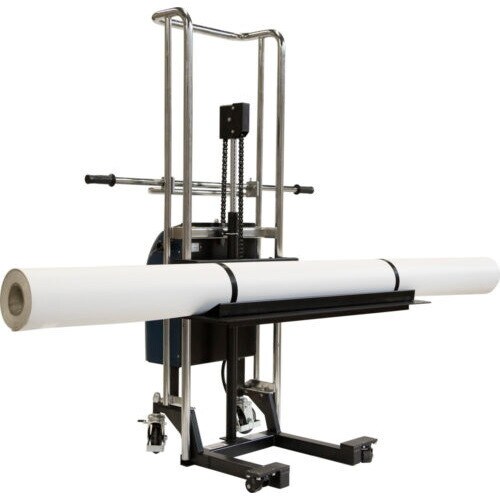

On-A-Roll Lifter Power Universal Hi-Rise

With a powerful DC motor, the On-A-Roll® Lifter Power Universal Hi-Rise easily lifts and lowers rolls by eliminating manual labor and reduces roll changeover time. The Foster On-A-Roll® Lifter Power Universal Hi-Rise enables users to quickly and effortlessly lift rolls as heavy as 300 kg (660 lbs) and as wide as 500 cm (16' 5"). The flat roll loading tray fits most laminators and easily reaches laminator’s upper loading shaft height. Two adjustable roll wedges for positioning rolls on the tray are removable for loading and unloading.

Outstanding Features of the On-A-Roll® Lifter Power Universal Hi-Rise:

  • The tray lifts and lowers with the push of a button, re-charges standard outlets
  • 3” high front swivel casters fit under Kala Laminators and other machines with low clearances
  • Safety straps secure rolls to the tray and prevent shifting during transport
  • 45” lift height reaches top roller
  • Removable roll ramps and thin flat roll tray fits between rollers and openings.
  • Model #63161 Optional Roller Platform is designed to allow operators to feed rolls into their machines directly from the lifter.

More Features:

  • Powerful DC motor easily lifts and lowers rolls, eliminating manual labor and power lift reduces roll changeover time
  • Lifts rolls up to 57” to easily load and unload rolls onto the laminators
  • Thin flat roll tray easily fits into the side of the roll loading area on laminators
  • Pair of heavy-duty rear swivel casters with easy step-on locking brake
  • Reduces on-the-job injuries and enables all workers to move heavy rolls
  • User-friendly operation avoids costly and dangerous handling mistakes that damage media
  • Rugged construction ensures long lifter life
  • Single-person operation saves labor and time


  • 2-Year Warranty on hydraulics and media tray.
  • 5-Year Warranty on cross bars.
  • Power operated lifters carry a one-year warranty under normal use for the battery and electric.


Roll Weight Capacity660 lbs (300 kg)
Lift Height54" H (135 cm)
Max. Roll Width13" (400 cm)
Max. Roll Diameter15.75" (40 cm)
Overall Media Lifter Dimensions (W x D x H)47.25" W x 35.5" D x 68" H
(120 x 90.3 x 173 cm)
Media Lifter Weight271 lbs (123 kg)
Bottom Fork Clearance3.25" (8.25 cm)
Front Swivel Castors2" (5cm)
Rear Swivel Castors5" (12.7 cm)
Electric12V/60AH DC motor USA
(220V/50HZ DC motor Europe)
BatteryMaintenance free lead acid battery
ChargerBuilt-In 110V AC charger USA
(Built-In 220V AC charge Europe)
