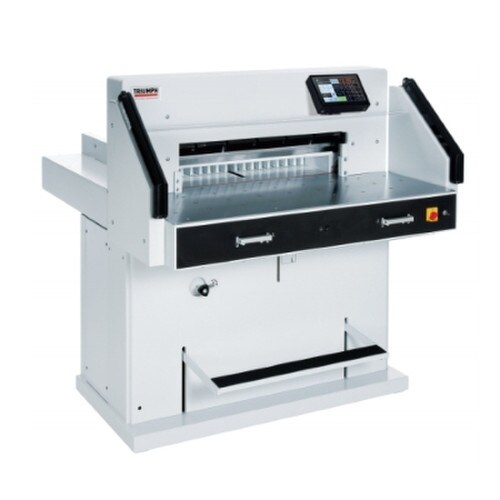

MBM Triumph 7260 Programmable Hydraulic Paper Cutter, 28" Cutting Width
|
| Item #:
MBMT7260 |
|
|
|
|
|
|
 Free Shipping! |
|
Frequently Bought Together |
Expand - Choose Related Items:
|
|
Product Description:
|
The Triumph 7260 is a 28 inch programmable cutter with hydraulic clamp, power back gauge, electronic control module, and IR safety light beams on front table.
- Call 1-866-455-9900 to order -
Comprehensive SCS safety package: patented EASY CUT electronic blade activation bars for true two-hand operation; IR light beam safety curtain on front table; safety cover on rear table; main switch and safety lock with key; 24 volt controls (low voltage); patented IDEAL safety drive; automatic blade and clamp return from every position; disc brake for instant blade stop; blade changing device covers cutting edge of blade; blade depth adjustment from outside of machine; blade and cutting stick can be changed without removing covers.
MBM Triumph 7260 Features:
- Hydraulic clamp drive
- Foot pedal for pre-clamping
- Electric back gauge drive with control module for easy programming
- Digital measurement display (cm or inches) with multilingual operator guidance, accurate to 1/10 mm or 1/100 inch
- Stores 99 programs with up to 99 steps in each (up to 9 repeat cuts can be integrated as a single step)
- Pre-programmed for standard paper sizes
- Memory keys for repeat cuts (manual) and quick setting of frequently needed measurements
- Automatic SET function for reference measurement and paper EJECT function with and without program mode
- DELETE and INSERT mode for correcting and modifying programs
- Automatic correction in case of back gauge displacement
- Push buttons for fast back gauge movement (forward and reverse)
- Integrated calculator
- Self-diagnostic system with error indication on display
- Electric blade drive with solid steel carrier and adjustable guides
- Electronic hand wheel with variable speed control for manual back gauge setting
- Clamp pressure is fully adjustable between 550 and 4,400 psi
- False clamp plate with optical indicator
- Bright, LED optical cutting line
- This MBM paper cutter has a stainless-steel work surface
- Standard air tables (front and rear)
- High quality, German HSS blade
- Precision swing cut blade movement
- All-metal construction
- Includes easy-access tool holder and paper blocking tool
- Optional side tables increase work surface
- UL and C UL approved
Dimensions (D x W x H), inches: 60 1/2 x 51 3/8 x 52 1/2 (63 D, 82 1/2 W with side tables)
Shipping weight, pounds: 1,534 (1,622 with side tables)
| Cutting width, inches |
28 |
| Cutting height, inches |
3 |
| Narrow cut, inches |
3/4 (3 1/2 with false clamp) |
| Length behind blade, inches |
28 |
- Call 1-866-455-9900 to order -
|
 User Manual - MBM Triumph 7260 Programmable Hydraulic Paper Cutter, 28" Cutting Width
|
|
|
|
|
