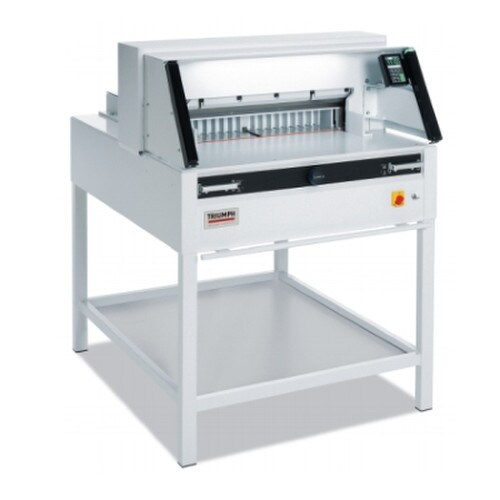

MBM Triumph 6660 Automatic Programmable Paper Cutter, 25.5" Cutting Width w/Light Beam Safety
Details
The MBM Triumph 6660 is a programmable cutter with automatic clamp, power back gauge, digital touchpad, and IR safety light beams on front table.
Comprehensive SCS safety package: patented EASY CUT electronic blade activation bars for true two-hand operation; IR light beam safety curtain on front table; safety cover on rear table; main switch and safety lock with key; 24 volt controls (low voltage); patented IDEAL safety drive; automatic blade and clamp return from every position; disc brake for instant blade stop; blade changing device covers cutting edge of blade; blade depth adjustment from outside of machine; blade and cutting stick can be changed without removing covers.
Features:
- Ergonomic, 37 inch working height
- Electric blade and clamp drive
- Electric back gauge drive with touchpad for easy programming
- Digital measurement display (cm or inches) with multilingual operator guidance, accurate to 1/10 mm or 1/100 inch
- Stores 99 programs with up to 99 steps in each (up to 15 repeat cuts can be integrated as a single step)
- Pre-programmed for standard paper sizes
- Memory key for repeat cuts
- Automatic SET function for reference measurement and EJECT function for pushing out paper
- Self-diagnostic system with error indication on display
- Electronic hand wheel with variable speed control for manual back gauge setting
- Bright, LED optical cutting line
- 3-step, LED front table illumination
- Adjustable, spindle guided back gauge with narrow separations and plastic gliders
- Dual side guides on front and rear tables
- High quality, German steel blade
- Solid steel blade carrier and adjustable blade guides
- All-metal construction
- Includes stand with storage shelf, easy-access tool holder, and paper blocking tool
- Optional side tables increase work surface
- UL and C UL approved.
Electrical requirements: 115 V, 60 Hz (20 amp dedicated line required)
Motor output, horsepower: 2
Dimensions (D x W x H), inches: 48 x 39 x 51 (61 1/2 W with side tables)
Shipping weight, pounds: 775 (796 with side tables)
Cutting width, inches | 25 1/2 |
---|---|
Cutting height, inches | 3 |
Narrow cut, inches | 1 |
Length behind blade, inches | 24 |
