Product Description:
|
The GBC C-500 / Ibimaster 500 Multi-Punch and Bind Machine has been replaced by the Akiles WireMac-Combo.

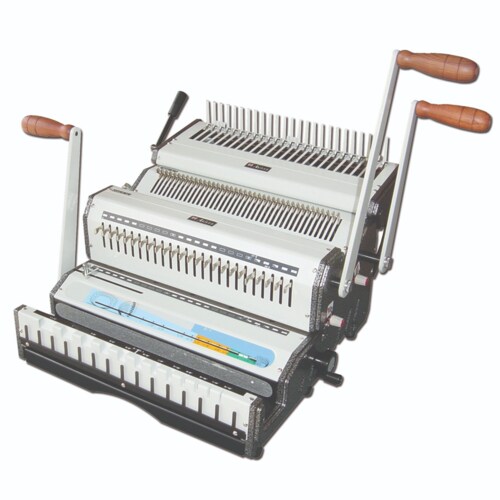

Akiles WireMac-Combo Heavy Duty Manual WireBind & CombBind Machine DuoWire & Comb Binding - TWO-IN-ONE!
The Akiles WireMac superior combo binding machine does the work of two. With both WIRE and COMB punching dies, this versatile & easy to-use combo binding machine allows you to punch & bind both DuoWires in 3:1 or 2:1 pitch and plastic comb in one single machine, without ever changing punching dies!
- Heavy-duty / Multi-Functional (Versatile) / Reliable / Easy to use
- Die Disengagement Pins: All dies can be independently disengaged, allows punching of any size document while preventing partial side-end perforation.
- Side Margin Control: Provides and evenly centered punch for all document sizes.
- Vertical Wire Closer
- Wire Holder: Holds wire in place for easier inserting of sheets.
- Waste Drawer
- Diameter Scale: Measures document’s thickness in order to select best wire/comb size option
- Master Selector: Determines the correct: Wire Diameter, Closing Position, Depth Margin & Wire Pitch.
- Wire Closer Control: With continuous adjusting scale for an exact and secure closure every time.
- Punch Throat & Ruler for Comb
- Open Punching Throat & Continuous Punching Guide: For an easy alignment & punching of longer documents.
- Depth Margin Control: Provides the correct punch margin depth for each wire/comb size. Maximizes document tear resistance.
- Punch Throat & Ruler for WIRE
- Wire Punch Handle
- Comb Punch Handle
- Comb Opener / Comb Opener Handle
- Wire Closer Handle
| Model: |
WIREMAC-COMBO 31 |
WIREMAC-COMBO 21 |
| Punching Pitch: |
3:1, 3 holes per inch (Wire)
Standard Comb Pitch (Comb) |
2:1, 2 holes per inch (Wire)
Standard Comb Pitch (Comb) |
| Punching Length: |
14" (with Open Ends for longer sizes) |
| Disengagement Dies: |
All 40 dies (Wire)
All 24 dies (Comb) |
All 27 dies (Wire)
All 24 dies (Comb) |
| Hole Sizes: |
Square 4mm x 4mm (Wire)
Rectangular 3.12 x 7.94mm (Comb) |
Rectangular 4mm x 5.5mm (Wire)
Rectangular 3.12 x 7.94mm (Comb) |
| Single Punching Capacity: |
Up to 20 sheets of 20 lbs paper |
| Binding Capacity: |
3/16" – 9/16" (Wire)
3/16" – 2" (Comb) |
5/8" – 1-1/4" (Wire)
3/16" – 2" (Comb) |
| Adjustable Side Margin: |
Included |
| Adjustable Depth Margin: |
Included |
| Machine Dimensions: |
20.5" (D) x 27" (W) x 20" (H) |
| Carton Dimensions: |
19" (D) x 21" (W) x 13" (H) |
| Weight & Volume: |
64 lbs - Free Shipping! |
| Warranty: |
One Year |
|
 User Manual - GBC C-500 / Ibimaster 500 Plastic Comb Bind Machine
|
|
|
|
|
