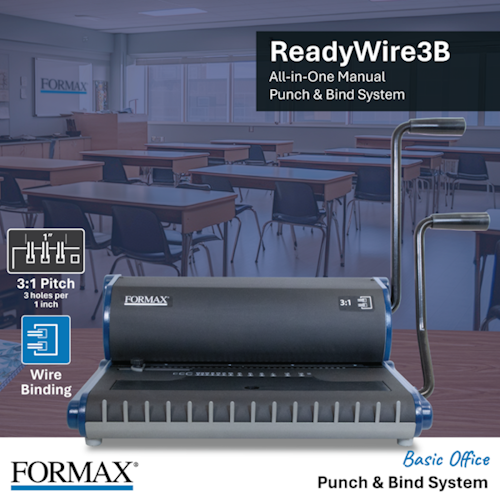

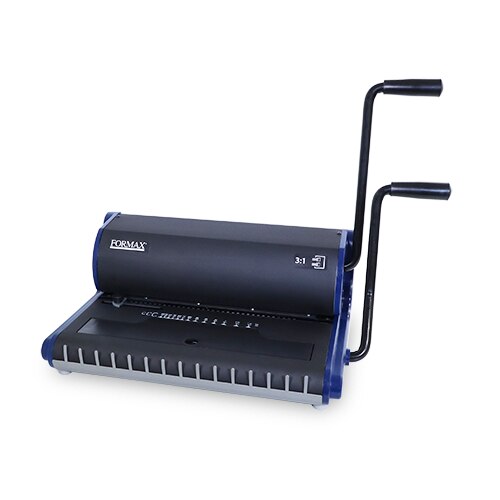

Formax ReadyWire 3B Manual Punch & Binding System - 3:1 Pitch
The Formax ReadyWire 3B is a compact manual punching and binding system designed for offices and organizations with low binding volumes. Its 3:1 pitch configuration produces a refined, professional wire-bound appearance and accommodates double-loop wire diameters from 1/4" to 5/8", with a binding capacity of up to 135 sheets.
An ergonomic two-lever design separates punching and binding operations for simple, comfortable use. The low-force punching lever can punch up to 20 sheets at a time, while the integrated wire comb holder helps keep pages properly positioned before binding. A built-in wire diameter guide and quick-adjust sliding binding control make it easy to select and set the appropriate wire size for each project.
The ReadyWire 3B produces professional wire-bound documents that open a full 360 degrees and lay flat for easier reading, writing, and scanning. Double-loop wire keeps pages securely bound while providing a polished appearance designed for long-term use.
Key Features
- 3:1 pitch punching and binding system
- Manual punching and binding operation
- Compact, rugged metal construction
- Ergonomic two-lever system
- Low-force punching of up to 20 sheets at a time
- Binding capacity up to 135 sheets
- Supports 1/4" to 5/8" diameter double-loop wire
- Integrated wire comb holding device for easier paper positioning
- Integrated wire diameter measurement guide
- Quick sliding adjustment for binding diameter
- Fixed punching margin depth
- Adjustable paper stop
- Easy-empty sliding waste tray
- Smooth, quiet operation
- Finished documents open 360 degrees and lay flat
Specifications
| Model | ReadyWire 3B |
|---|---|
| Pitch | 3:1 |
| Punching / Binding | Manual |
| Punching Capacity | Up to 12,000 sheets per hour |
| Sheets Per Punch | Up to 20 sheets |
| Punching Width | 0.39" to 11.8" (10 to 300 mm) |
| Maximum Punching Thickness | Up to 0.08" (2 mm) |
| Punch Hole | Square, 4 x 4 mm |
| Binding Speed | Up to 200 books per hour |
| Maximum Binding Capacity | Up to 135 sheets |
| Wire Diameter | 1/4" to 5/8" |
| Dimensions | 23" W x 13" D x 17.5" H (584 x 330 x 445 mm) |
| Weight | 34 lb (15.4 kg) |
Easy Setup and Adjustment
The ReadyWire 3B includes an onboard wire diameter guide with clear graphics to help operators select the appropriate wire gauge for each project. Binding dimensions can be changed quickly using the sliding adjustment, helping streamline setup when moving between different booklet thicknesses.
Professional 3:1 Wire Binding
The 3:1 pitch configuration provides a refined finished appearance and is designed for wire diameters from 1/4" through 5/8". The ReadyWire 3B can produce professionally bound documents containing up to 135 sheets.

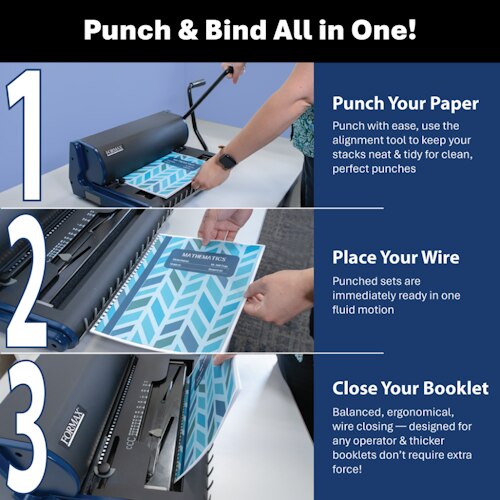

For convenient loading, the integrated wire comb holder keeps the binding wire in position while punched sheets are placed onto the loops. Once bound, documents can rotate a full 360 degrees and lay flat, making them easy to read, write in, and scan.
