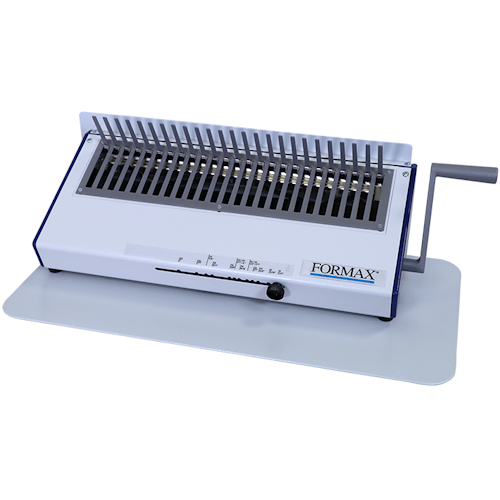

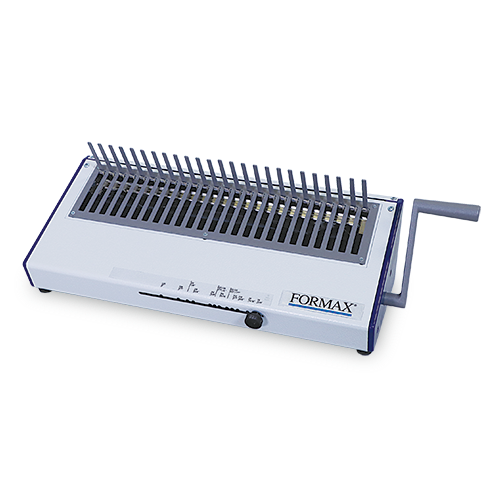

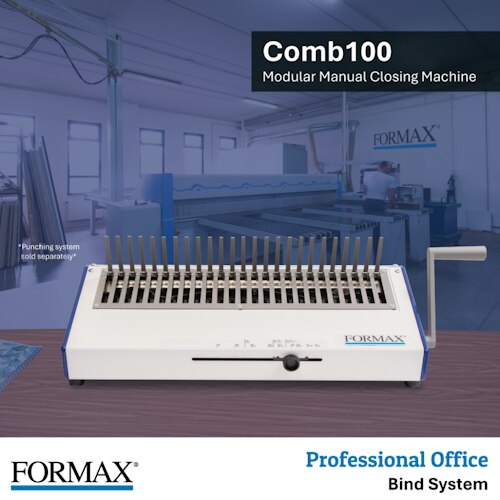

Formax Comb100 Manual Comb Binding System
The Formax Comb100 is a heavy-duty manual comb binding system designed to produce bound documents quickly and easily. Its compact all-metal construction, manual lever operation, and precision closure control provide a simple and dependable solution for professional comb binding.
The Comb100 uses a lever-activated comb opening and closing mechanism to provide secure binding for booklets containing up to 480 sheets. Quick-adjust comb dimensions allow setup changes to be made in seconds, helping streamline production when working with different document thicknesses.
Comb-bound documents can be easily updated because pages can be added or removed without damaging the document or the binding itself. The Comb100 supports comb sizes from 1/4" to 2" and binding widths up to 13.8".
Key Features
- Manual comb binding system
- Heavy-duty all-metal construction
- Compact design
- Binds up to 480 sheets
- Manual lever-controlled binding
- Precision closure control
- Quick-adjust comb dimensions
- Simple, quiet operation
- Supports comb sizes from 1/4" to 2"
- Maximum binding width of 13.8"
- Binding speed up to 250 booklets per hour
- Can be used with the Punch100
- Can be configured for stand-alone use with optional support stand
Specifications
| Model | Comb100 |
|---|---|
| Pitch | US |
| Binding Thickness | 0.04" to 1.96" (1 to 50 mm) |
| Sheets Per Booklet | Up to 480 sheets |
| Minimum Binding Width | 0.39" (10 mm) |
| Maximum Binding Width | 13.8" (340 mm) |
| Comb Size | 1/4" to 2" (6 to 52 mm) |
| Binding Operation | Manual, lever operated |
| Binding Speed | Up to 250 booklets per hour |
| Dimensions | 19.6" W x 7.5" D x 6.7" H (500 x 190 x 170 mm) |
| Weight | 9.5 lb (4.3 kg) |

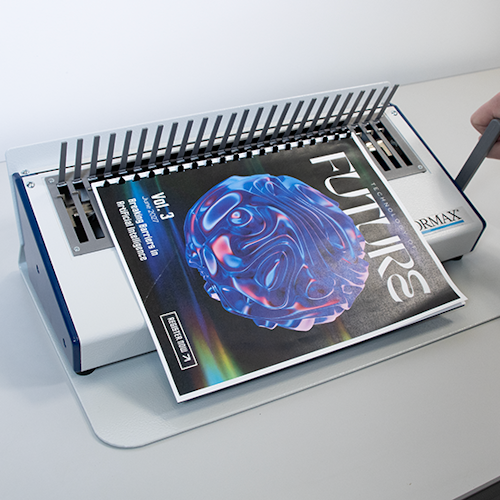

Precision Closure Control
The Comb100 features precision closure control for quick and easy comb opening and closing. Its lever-activated mechanism provides secure binding for booklets containing up to 480 sheets.

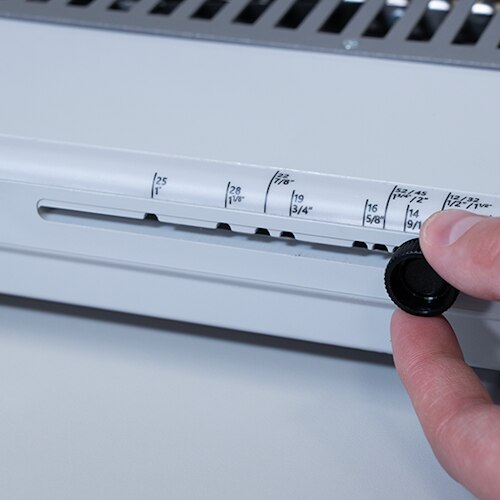

Quick-Adjust Comb Dimensions
Comb dimensions can be adjusted in seconds, making it easy to change settings when moving between documents of different thicknesses and comb sizes.
High-Capacity Comb Binding
The Comb100 accommodates binding thicknesses from 0.04" to 1.96" and comb sizes from 1/4" to 2". It supports binding widths from 0.39" to 13.8" and can produce up to 250 bound booklets per hour.

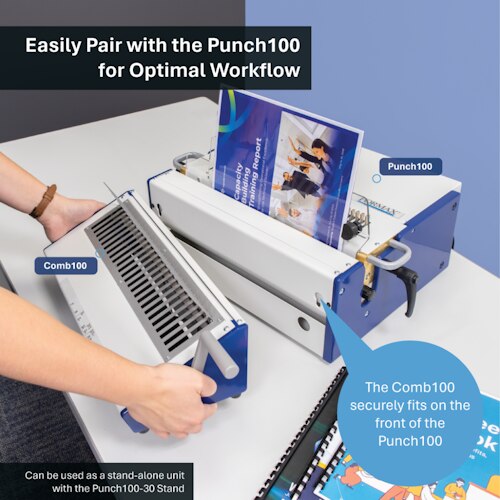

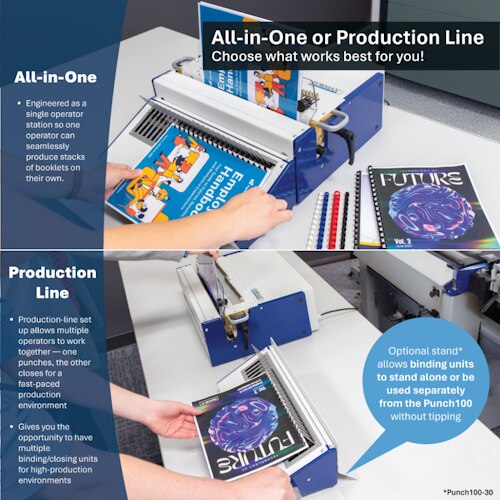

Modular Use with Punch100
For a combined punching and binding workflow, the Comb100 can be attached to the front of the Punch100 using the integrated mounting pins. This creates a convenient modular system for punching documents and completing plastic comb binding.
Stand-Alone Operation
The Comb100 can also be configured for independent stand-alone operation. Stand-alone use requires the optional Punch100-30 Support Stand.
Easy-to-Update Documents
Plastic comb binding allows pages to be added or removed without damaging the document or the binding itself, making the Comb100 well suited for manuals, reports, presentations, and other documents that may require future updates.
