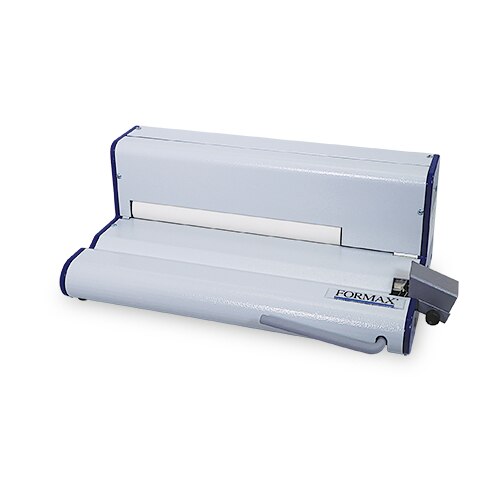

Formax Coil100 Electric Coil Inserter & Crimper
The Formax Coil100 is a compact electric coil inserting and finishing system designed for professional spiral-bound booklets. Its electric rubber roller quickly and effectively threads plastic spiral coil through punched documents, while the integrated manual cutting and crimping unit provides a complete finishing solution in one compact system.
The Coil100 accommodates coil elements from 1/4" to 3/4" (6 to 20 mm) in diameter and binding widths up to 13.4". An automatic stop feature on the electric roller provides added operator safety, while rugged all-metal construction supports dependable everyday use.
After coil insertion, the integrated cutting and crimping tool trims and crimps the plastic coil at a 45-degree angle for a professional finish. Plastic coil binding allows finished documents to open completely flat or fold back on themselves for convenient viewing.
Key Features
- Electric spiral coil inserting system
- Electric rubber roller for quick coil insertion
- Integrated manual coil cutter and crimper
- 45-degree coil crimp for a professional finish
- Supports coil diameters from 1/4" to 3/4" (6 to 20 mm)
- Binding thickness from 0.04" to 0.62"
- Maximum binding width of 13.4"
- Binds up to 80 books per hour
- Automatic roller stop for operator safety
- Rugged all-metal construction
- Quick, quiet operation
- Can be used with the Punch100
- Can be configured for stand-alone use with optional support stand
Specifications
| Model | Coil100 |
|---|---|
| Binding Operation | Electric insertion, manual crimp & cut |
| Pitch | 0.25" (6 mm) |
| Binding Thickness | 0.04" to 0.62" (1 to 16 mm) |
| Minimum Binding Width | 0.39" (10 mm) |
| Maximum Binding Width | 13.4" (340 mm) |
| Coil Diameter | 1/4" to 3/4" (6 to 20 mm) |
| Binding Speed | Up to 80 books per hour |
| Dimensions | 17.7" L x 4" D x 6.3" H (450 x 100 x 160 mm) |
| Weight | 21 lb (9.5 kg) |
| Power Supply | 115V, 60Hz, 90W |
Electric Coil Insertion

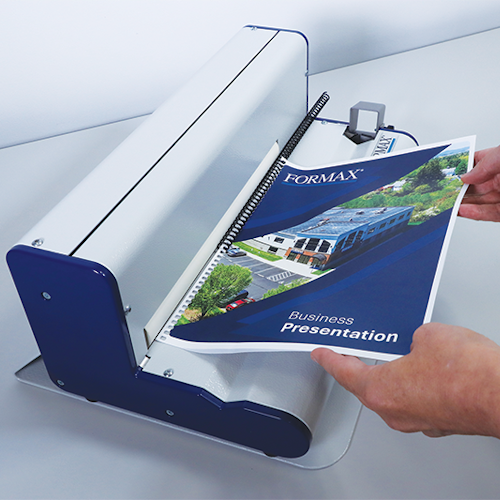

The Coil100 uses a convenient electric rubber roller to quickly thread plastic spiral coil through punched documents. The roller includes an automatic stop feature for added operator safety while maintaining a fast and efficient binding workflow.
Integrated Coil Finishing

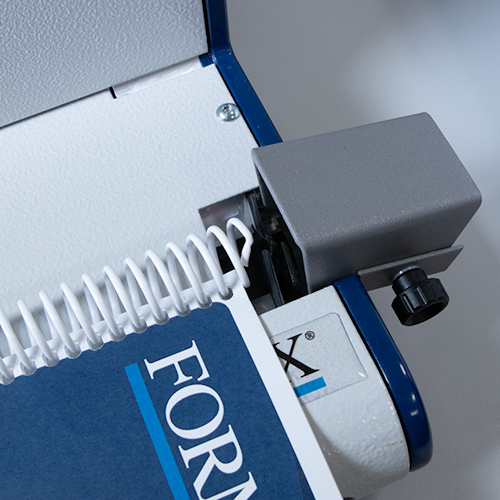

An integrated manual cutting and crimping unit provides the finishing step directly on the Coil100. After insertion, the tool cuts the plastic coil and creates a 45-degree crimp for a clean, professional finish.
Flexible Coil Binding

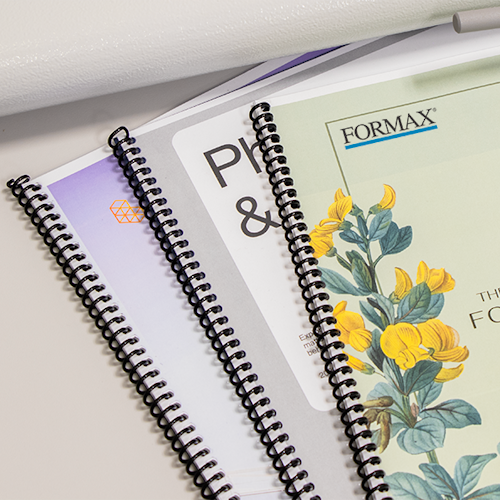

The Coil100 accommodates coil diameters from 1/4" to 3/4" and binding thicknesses from 0.04" to 0.62". Plastic spiral coil creates durable documents that can open completely flat or fold back on themselves for convenient viewing and handling.
Modular Use with Punch100

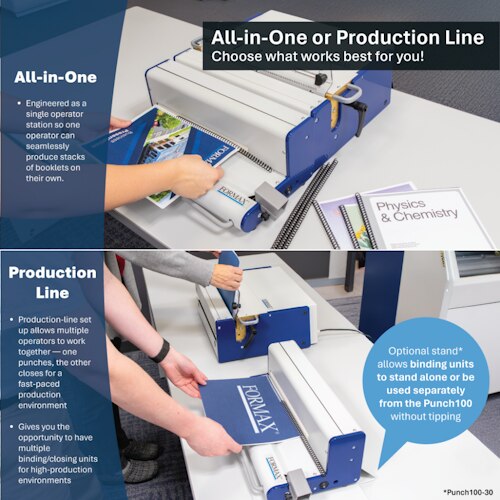

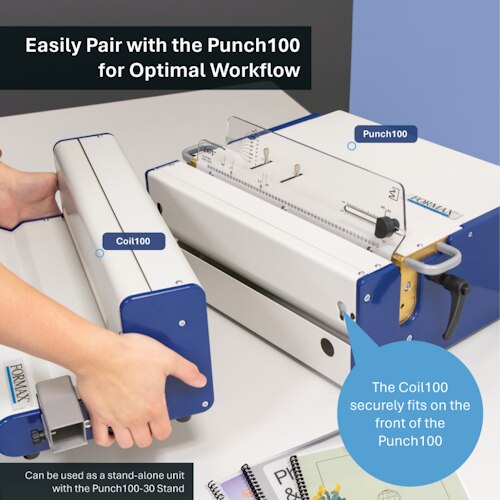

For a combined punching and binding workflow, the Coil100 can be attached to the front of the Punch100 using the integrated mounting pins. This creates a convenient modular system for punching documents and completing spiral coil insertion and finishing.
Stand-Alone Operation
The Coil100 can also be configured for independent stand-alone operation. Stand-alone use requires the optional Punch100-30 Support Stand.
