Akiles Coil-Mac-ER+ Plus Plastic Spiral Coil Paper Punch & Coil Book Bind Machine
20 Sheets Per Punch (20# Paper)
Oval 4:1 Holes
Manual Punch with Electric Inserter
1 Year Warranty
Frequently Bought Together
Total Price: $0
Expand - Choose Related Items:

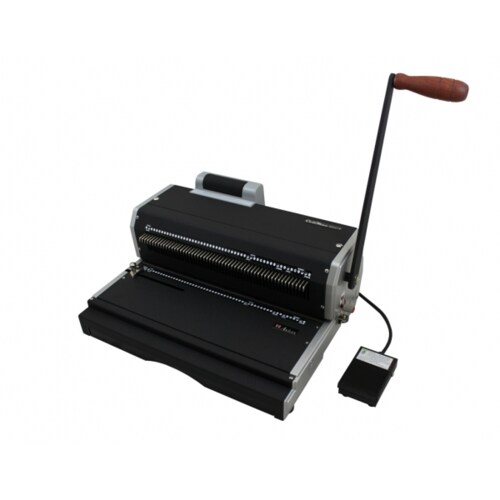

A fully featured, heavy-duty manual coil punching machine, with a built-in Electric coil inserter. The re-designed & improved CoilMac-ER Plus is the ideal partner for mid-volume workloads.
OVAL holes: Special 4 x 5mm oval holes. The first & only equipment of its class to offer this advanced feature. Makes coil insertion much faster as compared to standard round holes. When used together with our HD Electric Coil Inserter, it will drastically save your coil insertion time by up to 50%.
FULLY Disengageable Pins: For a completely clean & professional punching ofany paper size, all 54 pins can be independently pulled & disengaged.
LETTER 4:1 pitch (0.248"): This revolutionary 0.248” coil pitch is specifically designed to give you 44 evenly-centered holes in an 11” sheet, which provides the most ideal hole to edge-of-sheet margins and easier coil insertion. Hole pattern is 100% compatible with STANDARD 4:1 pitch coils.
Extended Single Punching Length (13"): With open ends & continuous punch guide to easily punch documents of any length (up to 26").
High Volume Punch Capacity: Suggested up to 20-sheet* for 20 lbs paper, or 2.6mm (28-sheet equivalent)** for hardboard, in 13" length (53 holes).
Super Strength Punch Mechanism with exclusive “Precision Guiding SystemTM" Blade Set: Cast-hardened & heat-treated steel dies provide superior strength & hardness. Exclusive “precision guiding system" guarantees a sharp & clean perforation everytime.

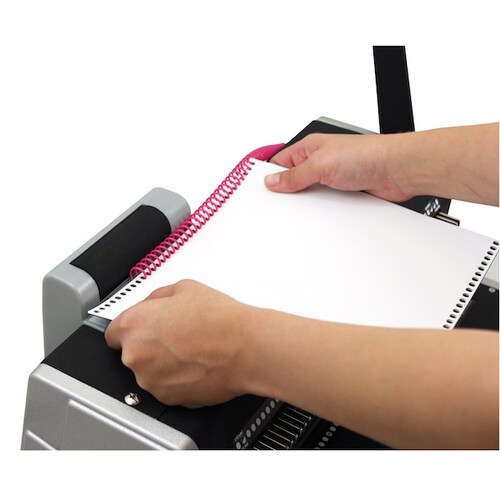

Top Electric Roller Coil Inserter (Foot Pedal Operated): This easy to use and durable roller makes coil inserting surprisingly fast and easy. It is strategically placed on the left side of the machine so your coil will clear the punch handle while you are inserting.

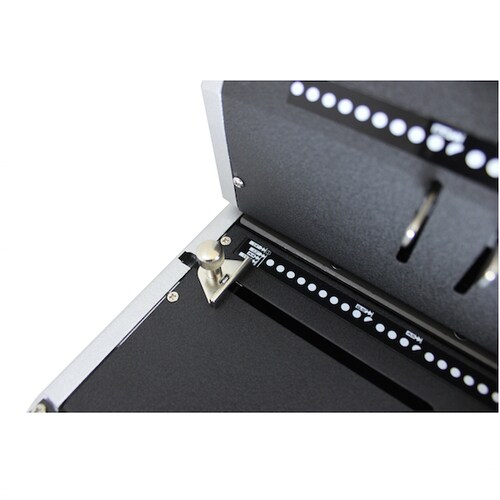

Side Margin Control: Provides an evenly centered punch for all document sizes.

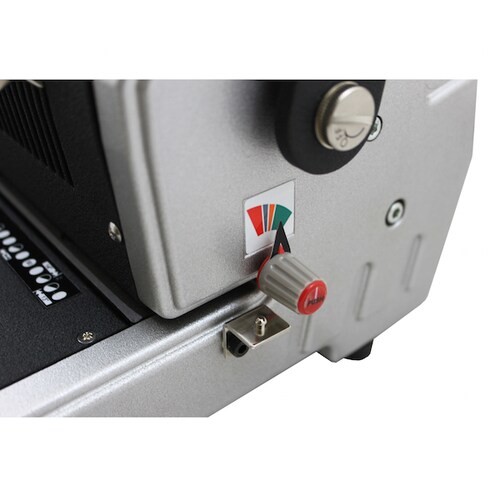

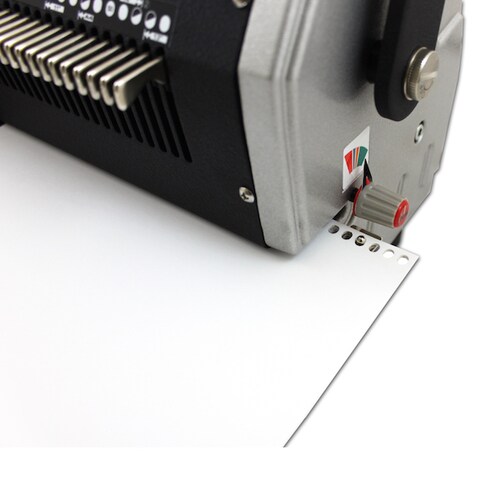

Punching Margin Control: Provides the correct punch-margin-depth for each coil size and maximizes the document's tear resistance.
Open Throat and Continuous Punch Guide: For an easy alignment and punching of longer documents up to 26".
Rugged ALL Metal Construction: Makes it the most reliable & durable coil binding system in its class.
Large Waste Drawer and Non-Skid Feet
CE Certification: All components certified & approved by CE for most stringent safety requirements
ISO9001 & 14001 Quality: Manufactured under ISO9001 & 14001 guidelines for highest quality control & environmental management standards.
Includes Coil Diameter Selector & Premium Oval Coil Crimpers
Standard 4:1 (0.250)
[ Other pitches also available upon special request ]
Letter 4:1 (0.248)
Punching - Manual
Inserting - Electric (with built-in Electric Roller)
Single Punch Capacity:
Up to 20 sheets for 20 lbs paper*
Up to 2.6mm for hardboard
(28-sheet equivalent thickness)**
