Phoenix 440-ML Mounting Laminator
Details

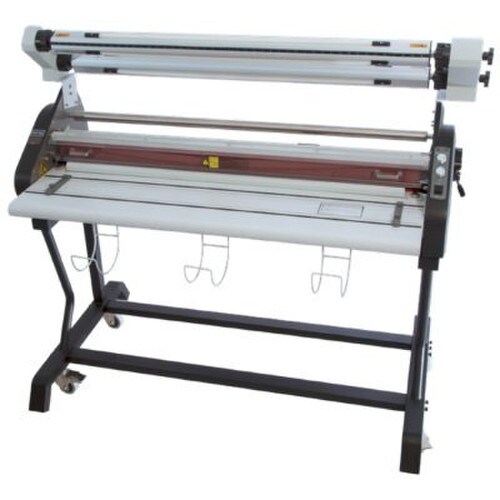

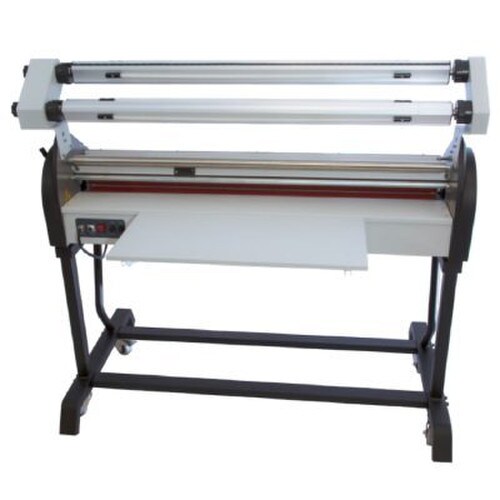

Phoenix 440-ML Mounting Laminator
The Phoenix 440-ML Mounting Laminator was designed to be a flexible and economical resource for producing signage & display materials. The top heated roller allows for thermal product applications while the release liner rewind makes it possible to easily work with pressure sensitive materials.
KEY FEATURES:
- Five Roller Gap Settings
- Variable Speed Control
- Variable Temperature Control
- Quick-Grip Film Shafts
- Single Knob Tension Control
- Fold Down Rear Exit Tray
- Chain Driven Rewind
- Print Roll Hangers
- Print Feed Guides
- Print Hold Down Clamp
- Emergency Stop Button
- Photoelectric Eye for Safety
- Sleep & Auto-Off Energy Saver
- Stand with Locking Casters
Use Your Phoenix 440ML to Make:
- Signs
- Posters
- POP Displays
- Trade Show Displays
- Single-sided Lamination
- Mount Graphics
- Mount Photos
- Window Graphics
- Pre-mask
- Mounting Boards
- Pouch Boards
- PSA Film
Specifications:
Maximum Width: | 44" |
Roller Diameter: | 3.5" |
Adjustable Speed: | 0-5 Feet Per Minute |
Temperature Range: | 100° - 302° F |
Heating Method: | Quartz Heater |
Film Weights: | 1.5 - 5 Mil |
Gap / Pressure Settings: | 0", 1/16", 1/8", 3/16", & 1/4" |
Supply Unwind/Rewind: | Quick-Grip Top |
Auto Stand By: | 3 Hours Idle, Drop to 176° F |
Auto Sleep Function: | 4 Hours Idle, Turns heat off |
Tension Adjustment: | Single Knob |
Power Supply: | 120V 12A |
Power Consumption: | 1440 W |
Foot Pedal / Stand: | Included with Unit |
Dimensions with Rear Deck Up: | 57" L x 37.75" D x 50" H |
Shipping Dimensions: | 59.25" L x 35.5" W x 26.75" H |
Net / Shipping Weight: | 264lbs / 395 lbs |
Warranty: | 1 Year Parts / 3 Months Labor & Rollers |
