Formax Wire200 Electric Wire Binding & Closing System
Details
Details

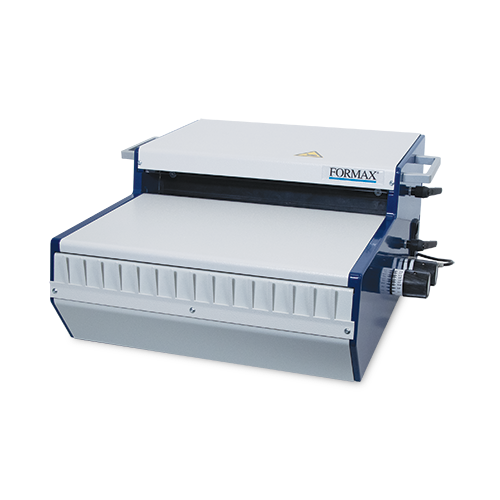

Formax Wire200 Electric Wire Binding System
The Formax Wire200 is a heavy-duty electric wire binding system designed for fast, effortless booklet finishing with consistent, professional results. Its rugged all-metal construction, electric foot-pedal operation, and intuitive adjustments provide an efficient solution for demanding wire binding applications.
The Wire200 accommodates 2:1, and 3:1 pitch binding and supports ReadyWire diameters from 1/4" to 1-1/2". It can bind documents containing up to 340 sheets and handles binding widths up to 14", making it suitable for a wide range of booklet sizes.
An integrated easy-loading wire holder helps position pages onto the wire, while the quick-adjust diameter control simplifies setup for different wire sizes. A parallel adjustment setting helps provide precise, consistent wire closure from the first document to the last.
Key Features
- Heavy-duty electric wire binding system
- Rugged all-metal construction
- Electric foot-pedal operation
- Supports 2:1 and 3:1 pitch binding
- Binds up to 340 sheets
- Binding speed up to 400 books per hour
- Supports wire diameters from 1/4" to 1-1/2"
- Maximum binding width of 14"
- Quick-adjust diameter control
- Integrated easy-loading wire holder
- Parallel adjustment setting for precise binding
- Automatic safety shut-off sensor
Specifications
| Model | Wire200 |
|---|---|
| Pitch | 2:1, 3:1 |
| Binding Thickness | 0.03" to 1.3" (1 to 34 mm) |
| Minimum Binding Width | 0.39" (10 mm) |
| Maximum Binding Width | 14" (360 mm) |
| Minimum Unbound Edge | 2.5" (65 mm) |
| Maximum Unbound Edge | 23.6" (600 mm) |
| Binding Operation | Electric / foot pedal |
| Binding Speed | Up to 400 books per hour |
| Binding Capacity | Up to 340 sheets |
| Wire Binding Diameter | 1/4" to 1-1/2" |
| Dimensions | 21" W x 21" D x 9.25" H (533 x 533 x 235 mm) |
| Power | 115V, 60Hz, 250W |
| Weight | 84 lb (38 kg) |

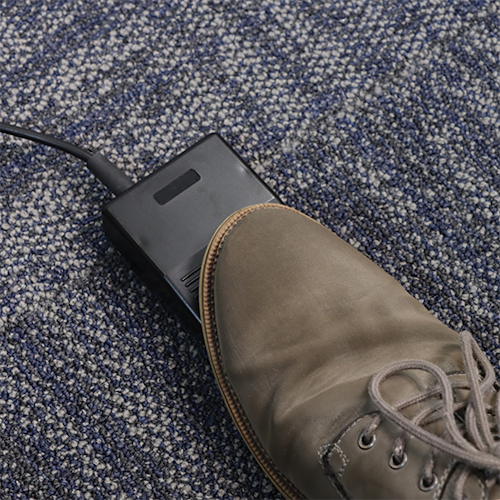

Electric Foot-Pedal Binding
The Wire200 uses convenient electric foot-pedal operation to provide fast, efficient wire binding while allowing the operator to keep both hands available for positioning and handling documents.

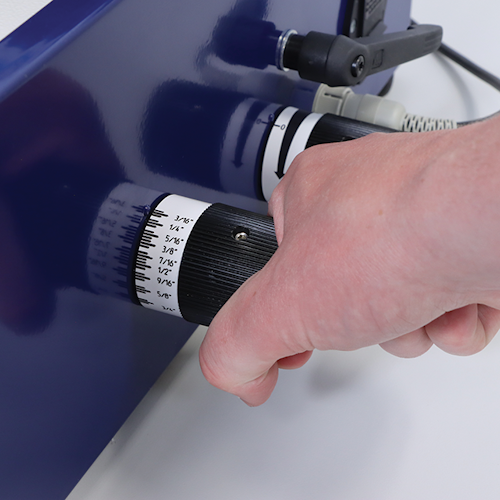

Easy Wire Diameter Adjustment
A quick-adjust diameter hand wheel provides a comfortable and straightforward way to set the machine for different wire sizes. The Wire200 accommodates ReadyWire diameters from 1/4" through 1-1/2".
Easy-Loading Wire Holder
An integrated wire holder features convenient fingers that help hold the wire in position while punched pages are loaded. This simplifies document loading and helps maintain an efficient binding workflow.

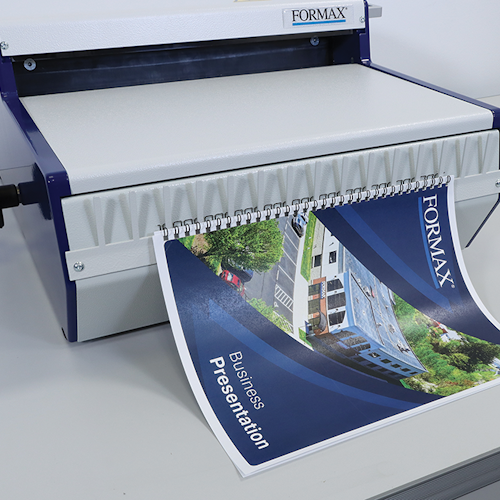

Precise, Consistent Wire Closure
A parallel adjustment setting helps provide precise wire closure throughout a binding run, supporting consistent results from the first document to the last.

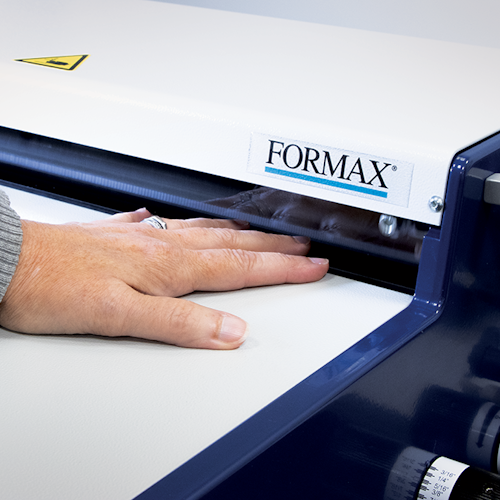

Operator Safety
The Wire200 includes an automatic safety shut-off sensor that stops the machine and cuts power when activated, helping enhance operator safety during use.
ReadyWire Double-Loop Binding Supplies
Formax ReadyWire Double-Loop supplies are available in diameters from 1/4" to 1-1/2". They are packaged in patented wire sheets designed to keep the bindings neatly organized, undamaged, and easy to remove. ReadyWire is thicker than industry standard and designed to close in a perfect circle.
