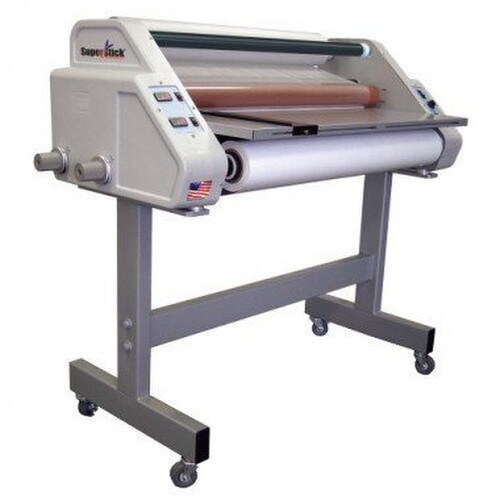

EXP-42 Wide format laminator


Ships via Truck



The EXP-42P heavy duty 42 Plus Laminator, made in the USA, The EXP-42P is an industrial strength wide format laminating machine complete with its own stand.

EXP-42P is Easy-To-Use

  • Mounts, laminates, encapsulates
  • Fast set-up and easy operation
  • Roller lift for easy film loading
  • Adjustable, spring-loaded roller pressure
  • Accommodates rolls up to 8" in diameter
  • Pressure-Sensitive Film Release Liner Rewind included!
  • Optional in-line slitter (for trimming during lamination) sold seperately - call 866 455 9900

EXP-42P is Operator Friendly

  • "Ready" and "Wait" lights indicate when the laminator has reached preset temperatures
  • Independent upper and lower electronic temperature controls with LED display
  • Foot switch allows for hands free operation
  • Auto-grip shafts

EXP-42P is Heavy Duty

  • Designed for mounting and laminating low-temp, thermal and pressure sensitive films
  • Heated silicone rubber rollers
  • Heavy-duty forward/reverse variable speed motor
  • Sturdy feed-back table
  • Adjustable feed guide
  • Chain and sprocket drive
  • 4 high-capacity forced air cooling fans

All D&K laminating machines are Made in the USA.

Product Specifications:

Model: ExpressionTM 42" PLUS
Roller Diameter: 3"
Max. Laminating Width: 41"
Max. Project Thickness:up to 1/2" thick
Max. Temperature:300°F
Max. Laminating Speed:10 ft/min
Machine Weight: 205 lbs.
Machine Dimensions: 57" W x 19 1/4" H x 27 1/2" D
Shipping Weight: 255 lbs.
Electrical Requirements: 230V
WarrantyParts - 1 year
Labor - 6 months
Rollers - 3 months
