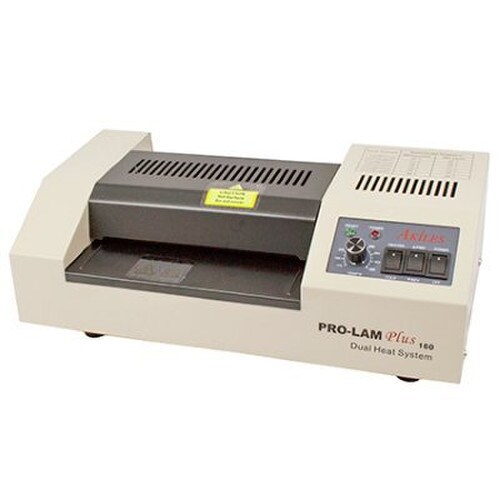

Akiles ProLam Plus 160 Pouch Laminator



Akiles Pro Lam 160 Plus Pouch Badge Laminator

High Productivity with no carrier required, Uses 3, 5, 7, and 10 mil pouch thicknesses.

The ProLam Plus series uses a heated roller system that allows for balanced heat distribution during the laminating process. This system guarantees crystal clear and bubble-free results even when you laminate photos and ink-jet printouts.

  • Metal Cover (Dual Color): For a longer lasting lifespan & a more professional, heavy duty look.
  • Silicon Rollers: Provide the flexibility of laminating with or without a carrier.
  • Metal Gears: To guarantee strength and durability.
  • Ready Light / Power Light / Power Switch
  • Forward / Reverse Switch: Allows easy corrective action for jams. i.e. when document is improperly fed or temperature was set too high.
  • Heat / Cold Switch: Offers cold lamination function.
  • Electronic Circuit (PCB) & Gradual Temperature Control: For a fast, consistent and easy fine-tuning of temperature. Ideal when operator requires frequent changing of pouch thickness, pouch composition or when laminating different materials.
  • 13” Throat: Extra-wide entrance for easy pouch feeding.
  • Dual Heat System (heated rollers & heat plate combination): For a more efficient lamination at lower temperatures. Allows for a perfect lamination of all standard pouch thicknesses (from 3 mils up to 10 mils).
  • Photo Ready: Heated-rollers allow a balanced heat distribution during laminating process, thus guaranteeing a crystal clear, bubble-free laminating result even when you laminate photos & ink-jet printouts.
Model:ProLam Plus 160ProLam Plus 230ProLam Plus 330
Throat Capacity:6.3″ (160 mm)9.1″ (230 mm)13″ (330 mm)
Max Laminating Speed:23″ / min
Max Pouch Thickness:10 mil
Max Laminating Thickness:1 mm
Heated Roller System:2 Hot / 2 Cold
Dimensions:14.5″ x 8.5″ x 4.5″16.75″ x 8.5″ x 4.5″21″ x 8.5″ x 4.5″
Weight:14 lbs (16 Kg)16 lbs (20 Kg)20 lbs (26 Kg)
ShippingFree Shipping!
Warranty:1 Year
