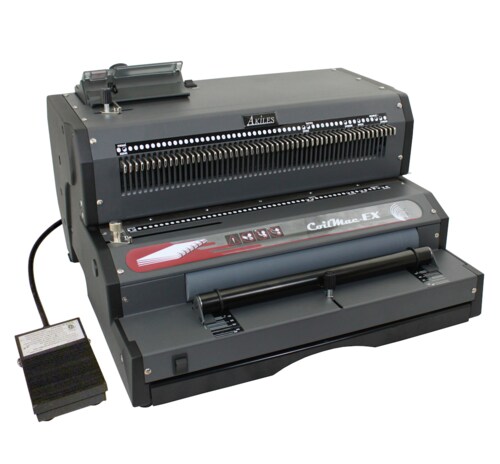

Akiles CoilMac-EX Pro All-In-One Electric Coil Binding Machine
All-In-One Electric Coil Punch, Electric Inserter, and Electric Coil Crimper
For the first time ever, Akiles introduces a true electric all-in-one coil binding machine. The CoilMac-EX Pro combines an Electric Punch, Electric Coil Inserter and Electric Coil Crimper to create our most complete coil binding machine ever.
- All Electric Operation: Powerful punching, inserting and crimping capabilities in one machine.
- Extended Single Punching Length (13”): With open ends & continuous punch guide to easily punch documents of any length (up to 26″).
- High Volume Punch Capacity: Suggested up to 25-sheet for 20 lbs paper, or 2.6mm (28-sheet equivalent) for hardboard*, in 13” length (53 holes).
- Super Strength Punch Mechanism with exclusive “Precision Guiding System” Blade Set: Cast-hardened & heat-treated steel dies provide superior strength & hardness. Exclusive “precision guiding system” guarantees a sharp & clean perforation every time.

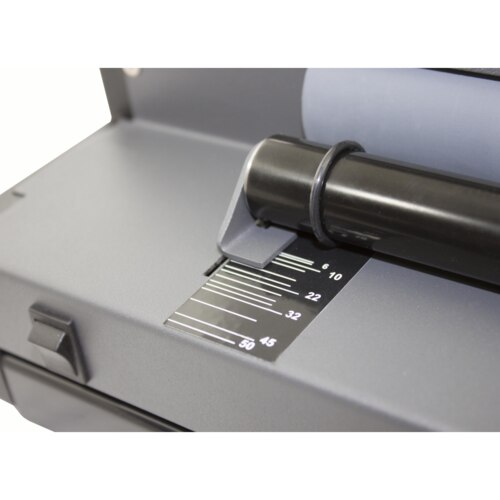

- Full Length Heavy-Duty Electric Coil Inserter with Double Roller Mechanism: Dual roller system with an adjustable bottom roller makes it simple to insert small and large coils.
- Industrial-Grade Roller Motor: Heavy-Duty motor (3 times heavier-duty than other similar machines in its class).
- Depth Margin Control: 4 adjustable settings, provides the correct punch margin depth for each coil size and maximizes the document’s tear resistance.
- Side Margin Control: Provides an evenly centered punch for all document sizes.
- Open Throat and Continuous Punch Guide: For an easy alignment and punching of longer documents up to 26”.
- Rugged ALL Metal Construction: Makes it the most reliable & durable coil binding system in its class.
- Included Coil Diameter Selector: Helps you pick the correct coil size for your project.
|Punching Capacity||Up to 25 sheets (20 lbs paper)|
|Punching & Crimping Operation||Electric (Foot Pedal)|
|Coil Inserting||Electric (On / Off Switch)|
|Hole Size||Oval (4mm x 5mm)|
|Pitch||Letter 4:1 (0.248″)|
|Disengageable Dies||All 54|
|Punching Length||13.5″ with open throat for longer documents|
|Binding Capacity||Up to 2″ (50 mm)|
|Dimensions||18″ W x 16″ D x 10″ H|
