- 24 Years and Thousands of Satisfied Customers Akiles CoilMac-EX+ Oval All-In-One Electric Coil Binding Machine with Cutter/Crimper Pliers
Details

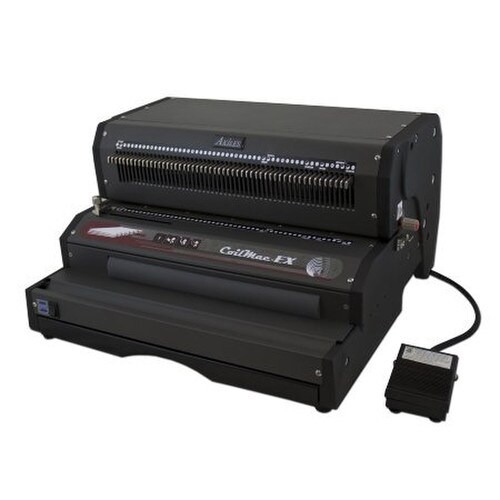

The Akiles CoilMac EX+ Oval is an All-In-One Electric Coil Binding Machine that is All-Metal, Heavy Duty, and built to last. Take your binding to the next level today!
- Heavy-Duty Punch & Roller Motor: Heavy-duty motor with the thermal overload protection to prevent downtime.
- Open Ended Punch Throat & Extended Punching Guide: Allows easy alignment & punching of longer documents.

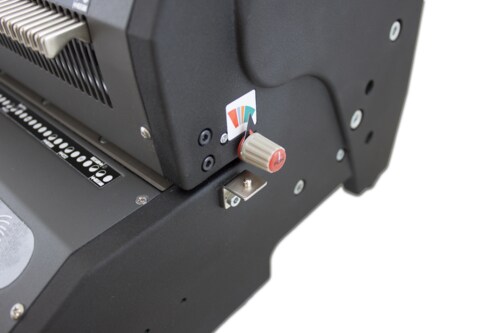

- Adjustable Depth Margin Control: Provide documents with the correct depth margin for optimal paper thickness and coil diameter ratio.

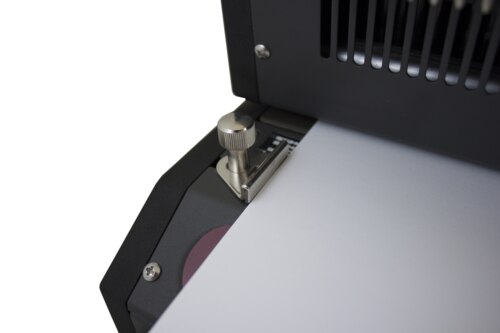

- Side Margin Control: Easy alignment of paper before punching.
- U-Shaped Alignment Channel: Helps to conform the spine of larger documents to the coil's shape for faster and easier insertion.

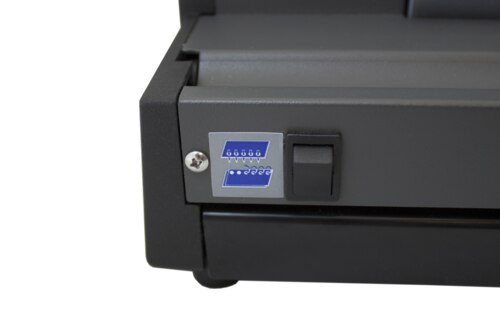

- Reverse Function: Manually reverse motor in case of a jam.

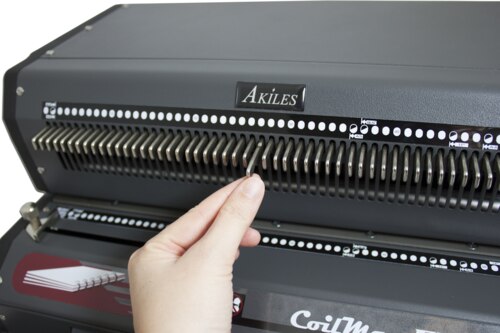

- Fully Disengaging Pins: Quick and easy adjustment of punching.
- Heavy-Duty All Metal Construction guarantees maximum productivity and durability.

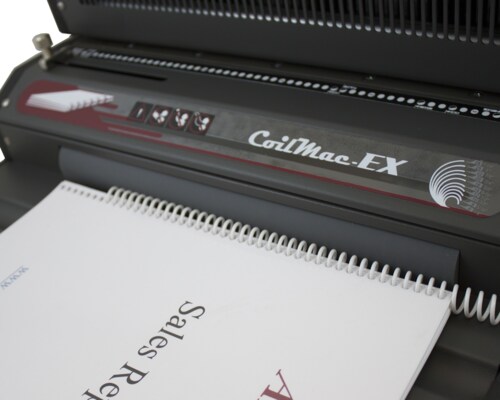

- Electric Full-Size Inserter: Large built-in roller for faster and easier coil insertion.
- Foot Pedal Operated.
| Model | CoilMac-EX+ Oval |
| Punching Type | Electric (Foot Pedal) |
| Punching Capacity | 25 Sheets (20lb paper) |
| Punching Length | 13.5" with Open Throat for Longer Documents |
| Hole Size & Pitch | Oval (4mm x 5mm), Oval 4:1 Pitch |
| Disengaging Dies | All 54 |
| Binding Capacity | Up to 7/8" Electric, or up to 2" Manual |
| Machine Dimensions | 18" Wide, 16" Deep, 10" High |
| Machine Weight | 50lbs |
| Warranty | 1 Year |

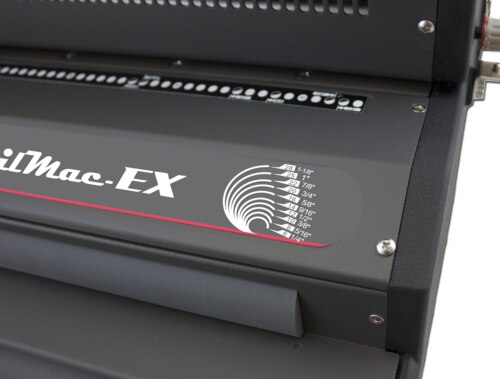

Machine comes with coil crimper pliers and a coil selector guide. To order the Akiles CoilMac-EX+ Oval All-In-One Electric Coil Binding Machine by phone, call us at 1-866-455-9900.
