Akiles CoilMac-EX All-In-One Electric Coil Binding Machine
Quick Compare:
| Model | CoilMac EXSKU: AMCM-EX | CoilMac EX+SKU: AMCM-EX+ | CoilMac EX ProSKU: AMCM-EX-PRO |
|---|---|---|---|
 |  |  | |
| Capacity & Finishing | |||
| Hole Shape / Size | RoundWorks with all 4:1 coil | OvalWorks with all 4:1 Coil Faster coil insertion | OvalWorks with all 4:1 Coil Faster coil insertion |
| Binding Capacity (Coil Size) | 6 MM - 22 MM(Up to 7/8") | 6 MM - 22 MM(Up to 7/8") | 6 MM - 50 MMLarger books and manuals (Up to 2") |
| Coil Inserting | Electric Roller | Electric Roller | Electric Roller + Adjustable GuideConsistent feed from small to large coils |
| Coil Crimping | Manual Pliers (included) | Manual Pliers (included) | Built-in Electric CrimperFaster finishing, no hand fatigue |
| Electric Crimping Capacity | – | – | 6 MM - 50 MMOne tool for all coil sizes |
| Disengageable Dies | 5 of 53 | All 54Punch any paper size cleanly | All 54Punch any paper size cleanly |
| Shared Core Specs (All Models) | |||
Related Categories:
Details
Details

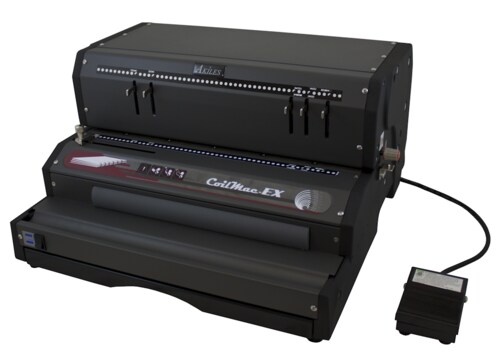

The Akiles CoilMac EX is an All-In-One Electric Coil Binding Machine that is All-Metal, Heavy Duty, and built to last. Take your binding to the next level today!
- Heavy-Duty Punch & Roller Motor: Heavy-duty motor with the thermal overload protection to prevent downtime.
- Open Ended Punch Throat & Extended Punching Guide: Allows easy alignment & punching of longer documents.
- Adjustable Depth Margin Control: Provide documents with the correct depth margin for optimal paper thickness and coil diameter ratio.

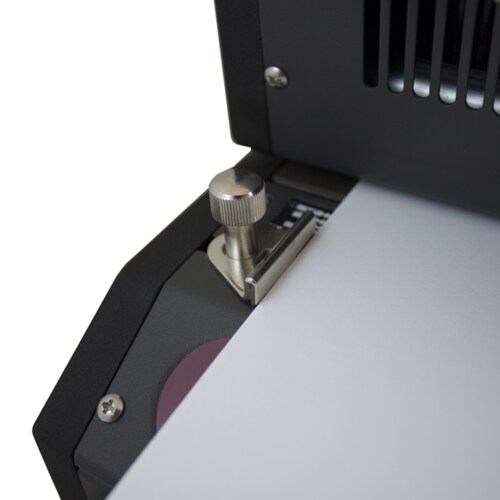

- Side Margin Control: Easy alignment of paper before punching.
- U-Shaped Alignment Channel: Helps to conform the spine of larger documents to the coil's shape for faster and easier insertion.

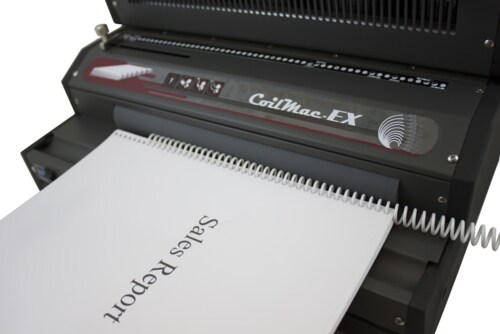

- Electric Full-Size Inserter: Large built-in roller for faster and easier coil insertion.

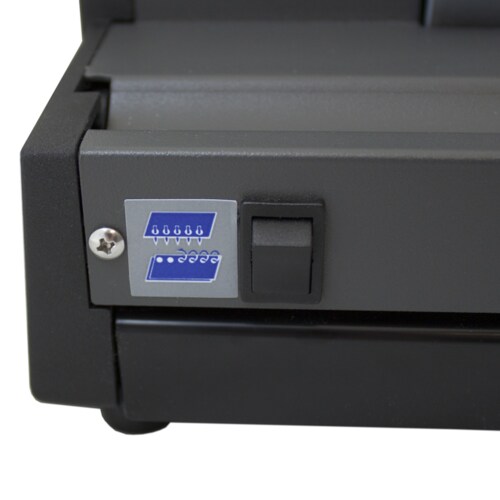

- Reverse Function: Manually reverse motor in case of a jam.

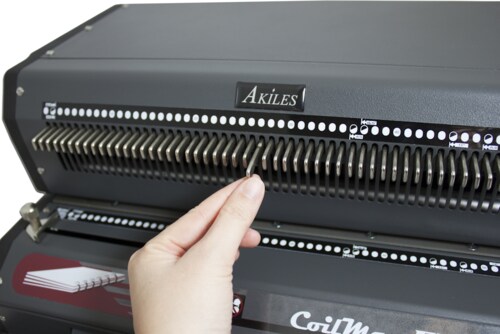

- Disengaging Pins: Quick and easy adjustment of punching.
- Heavy-Duty All Metal Construction guarantees maximum productivity and durability.
- Foot Pedal Operated.
| Model | CoilMac-EX |
| Punching Type | Electric (Foot Pedal) |
| Punching Capacity | 25 Sheets (20lb paper) |
| Punching Length | 13.5" with Open Throat for Longer Documents |
| Hole Size & Pitch | Round (4mm), Standard 4:1 Pitch |
| Disengaging Dies | 5 out of 53 |
| Binding Capacity | Up to 7/8" Electric, or up to 2" Manual |
| Machine Dimensions | 18" Wide, 16" Deep, 10" High |
| Machine Weight | 50lbs |
| Warranty | 1 Year |
Machine comes with coil crimper pliers and a coil selector guide. To order the Akiles CoilMac-EX All-In-One Electric Coil Binding Machine by phone, call us at 1-866-455-9900.
