Keencut Excalibur 3S 63" Vertical Substrate Cutter - EXC3S

$3,896.10
SKU: KC-EXC3S

Ships via Truck

Details

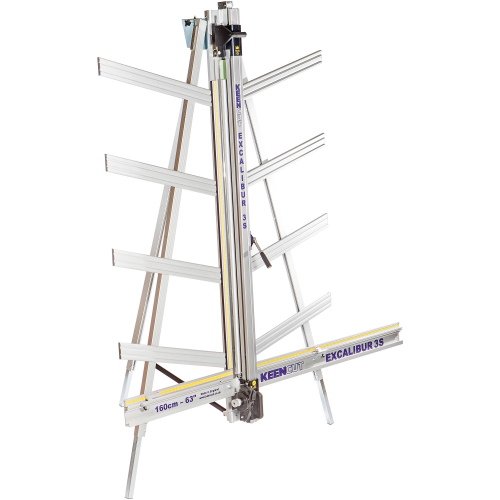

Excalibur 3S

Medium-duty board cutter for tough materials.

The Excalibur 3S is a premium cutting machine with exceptional return on investment. It is ideal for those who do not need the heavy production features of the SteelTrak. The Excalibur 3S is suited to the regular cutting of light and medium-weight boards and can also cut tough materials including 3mm (3/32″) aluminium composite panels. Simple alignment and permanently mounted blades guarantee a fast and accurate finish. Its unique features will allow you to improve quality, reduce waste and increase productivity.

Features:

Perfect cuts:

Accuracy is assured with a clear sightline strip acting as your guide to precise alignment. A one-piece horizontal squaring arm ensures positioning and rigidity either side of the cut line. Once aligned, materials are held firmly by a unique pressure-sensitive clamp, which is designed to protect delicate surfaces from damage.

Safety by design:

Blades are securely mounted within the cutter head and fitted with a safety lock so all of the blades automatically disengage when not in use. When in operation the Excalibur 3S creates no distracting noise and no dust.

Reduces set-up time:

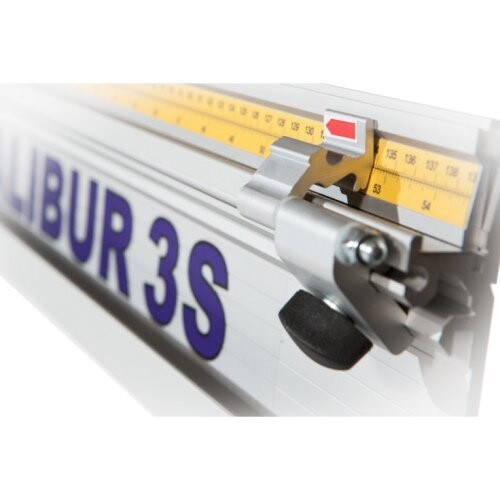

To increase productivity, the Excalibur 3S has been designed for a quick set-up. The cutting and scoring tools are permanently fitted for immediate engagement and the quick set production stops can be adjusted rapidly to provide consistent high production runs or one-off cutting.

Reduces user fatigue:

The vertical design utilises body weight to minimise the effort needed to cut tough materials, there is no need for electric power. The upright cutting position and the low friction bearing system combine to reduce user fatigue, whilst telescopic legs can be fixed at the most comfortable working height.

Space conscious:

The option for wall mounting saves workshop space but for those with limited wall space or requiring more flexibility, a free-standing kit is available.

Cost-effective solution:

The lower cutter uses off-the-shelf blades, so no costly specialist blades are required. The twin wheel cutters circular blades are made of high-grade tool steel.

Versatile cutter:

The Excalibur 3S will cut a wide variety of materials. The twin wheel cutter will tackle tougher materials including aluminium composite panels, e.g DiBond and MDF up to 3mm (3/32″), producing a clean, safe edge in a single pass.

Five year guarantee:

By manufacturing in-house, with only the highest quality materials, Keencut can guarantee that the Excalibur 3S will provide reliable long-lasting and accurate service. All Keencut products are offered with a comprehensive five year guarantee. Register your product to activate your guarantee for years of reliable cutting.

In the box:

  • 100 medium duty utility blades
  • Twin wheel cutter (mounted)
  • Spare sightline strip

Materials cut:

Rigid materials:

  • Aluminium composite panel, e.g Dibond ≤ 3mm (3/32″)
  • MDF ≤ 3mm (3/32″)
  • Cast acrylic / Plexiglas ≤ 3mm (3/32″) (scoring only)

Semi-rigid materials:

  • PVC foamboard ≤ 13mm (1/2″)
  • Corrugated/fluted plastic, e.g Correx ≤ 13mm (1/2″)
  • Corrugated cardboard ≤ 13mm (1/2″)
  • Foam centred board ≤ 13mm (1/2″)
  • Magnetic sheet ≤ 4mm (1/8″)

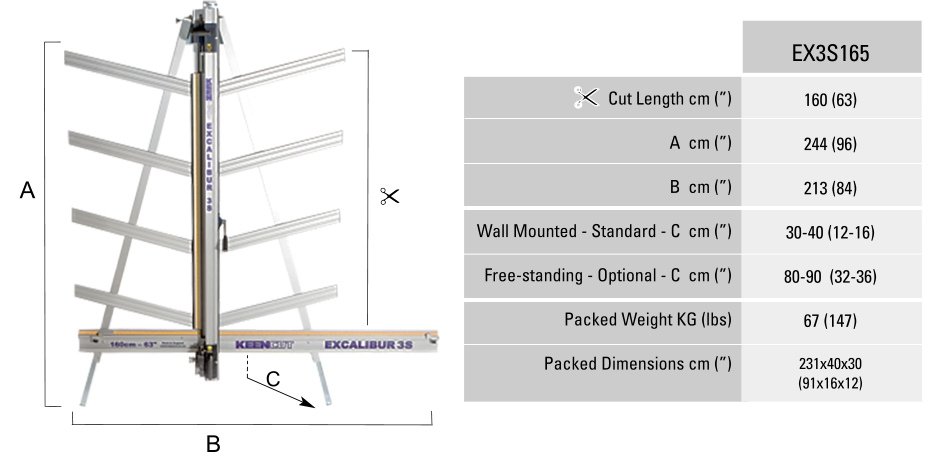

Dimensions:



Available Accessories:

Medium duty utility blades:

A double ground edge, reversible blade suitable for cutting all types of material

Free standing kit:

Enables the Excalibur 3S to be installed without fixing to a wall

Squaring arm extension:

Extends the squaring arm on the left side to support larger boards


Additional item number(s): 60373
