The ultimate cutting tool for the busy production environment

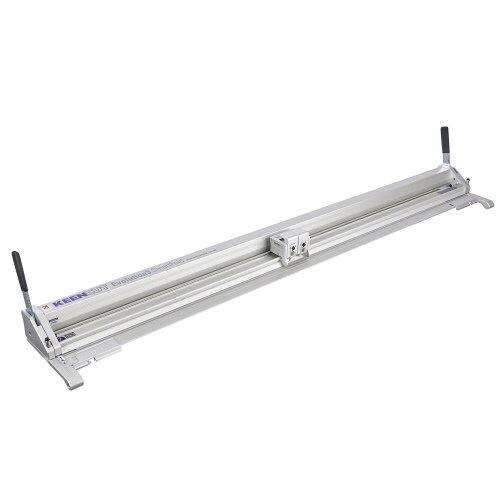

Designed for the busiest production facility, the Evolution3 SmartFold includes all the superior features of the Evolution3 range with the addition of an integral cutting strip for textiles and fragile materials. The SmartFold can be folded down to clear the bench and then returned in seconds to be immediately ready for use. Keencut’s unique Lift-and-Hover (patent pending) technology enables fast single-handed, and accurate alignment of all material, irrespective of thickness. Lower the clamping bar until it hovers just above the material surface with zero sag, even on the longest 5.5m (216") length cutter, then use the sightline strip to see where the cut will be made, and finally, fully engage the clamp and cut – it’s so simple.
Top 5 Features:
- Cuts rigid, semi-rigid and flexible materials - everything from ACP to tissue paper
- Accurate, fast single-handed alignment with the unique Lift-and-Hover
- Guaranteed to cut within 0.2mm of a straight line for the full length of cut
- Future-proofed with unique QuikSwap tool heads for cutting and creasing
- Practical folding system to clear workbench
Single-handed, fast accurate alignment:
Two unique features enable single-handed, fast and accurate alignment of all materials irrespective of thickness. The Lift-and-Hover system enables the clamping bar to be easily raised and then lowered so it hovers just above the material surface. The anti-sag mechanism means the cutter bar can be suspended exactly parallel to the media surface over the whole length of the cut with zero sag, even on the longest sized cutter.
The Evolution3 is the most accurate cutter of its type on the market and is guaranteed to cut within 0.2mm (0.008") of a straight line for the full length of the cut. The in-built ultra-high precision accuracy, combined with the perfect alignment made possible using the sightline strip, means every butt-jointed panel will join seamlessly. This ultra-high precision accuracy will save you time and money with less waste and fewer mistakes.
The self-adjusting track roller system fitted to the QuikSwap tool heads provides a strong and smooth movement up and down the length of the cutter bar, with zero sideways movement to ensure a perfect straight line. This, coupled with rigid blade clamping, gives perfect blade control and spot-on accuracy, so less wastage and mistakes.
Simple to use:
The combination of the Lift-and-Hover and the sightline strip really does make cutting easier and faster than ever before. Even first-time users will be able to cut accurately with confidence.
Heavy duty reliability:
The entire Evolution3 range has been built to last, using high quality materials and well tested engineering principles. The cutting head bearing system and clamping are tough enough to keep perfect blade control, even with the most difficult of materials. Keencut makes the majority of components on its precision CNC machines, keeping tolerances and quality under constant control, assuring exceptional accuracy and total reliability.
Future proof and versatile QuikSwap tool heads:
The QuikSwap tool head family gives users the ultimate flexibility. Each tool is designed for a specific purpose, such as general cutting, creasing and fabric cutting and can be attached or detached from the cutter in seconds. You can mount single or multiple tool heads to suit your work. The Graphik tool head is supplied as standard with other optional QuikSwap tool heads available to extend your cutting capability. New tools are also being developed to meet emerging requirements.
The versatile Rocker head:
The optional Rocker tool head is the latest addition to the QuikSwap range. It is a versatile general-purpose tool for cutting materials such as banners, cardboard and foamboard up to 10mm (3/8"). The ergonomic design follows the natural curvature of your hand and offers maximum comfort for everyday cutting. It also provides two-way cutting – pulling to cut lighter weight materials and pushing for those that require more effort. For those who occasionally cut aluminium composite panels, such as Dibond or Alupanel, the Rocker head can be fitted with the Tech-D.012 blade. The cutting technique requires a series of careful strokes and we advise that you watch our video guide to perfect your cutting action.
Cutting strip included:
The SmartFold includes an integral polymer cutting strip for textiles and fragile materials. A simple push button at each end of the bar allows the cutter to be set on any of four cut lines, extending the life of the strip. There is no need for a separate cutting mat.
Within a few seconds, you can fold the SmartFold down to clear your bench for other work and then simply flip it back up ready for action.
Five year guarantee:
Like all Keencut machines, the Evolution3 is built to give many years of excellent service. All components are manufactured in-house to ensure quality and all Evolution3 cutters come with a five year comprehensive guarantee. Register your product to activate your guarantee and enjoy the reliable operation for years to come.
Also in the box:
- 100 Graphik blades
- Double Graphik tool head (mounted)
- Corrugated cardboard ≤ 13mm (1/2")
- PVC foamboard ≤ 13mm (1/2")
- Corrugated plastic ≤ 13mm (1/2")
- Foam centred board ≤ 13mm (1/2")
- Cast acrylic / Plexiglas ≤ 3mm (3/32") scoring only
- Aluminium composite panel, e.g. DiBond ≤ 3mm (3/32") Rocker tool head only, for occasional use
- Magnetic sheets
- Self-adhesive vinyls
- Delicate materials: tissue paper, wallpaper
"The Evolution3 allows us to increase throughput. We complete more work and as such it has a direct and positive impact on our business"
“The Evolution3 allows us to increase throughput. We complete more work and as such it has a direct and positive impact on our business. It’s very, very simple to use and it makes a massive difference to our productivity. I would estimate that it saves us about 10% of production time. The new Lift-and-Hover technology saves us a lot of time. Once the clamp is fully down there is no movement at any point. You do not need to hold onto the handle so you have both hands free to work. The plastic sightline strip is really important, especially when cutting longer pieces of material. You can clearly see the crop marks through the strip so you can very quickly and accurately align the material ready for cutting”
John Walliker of JDP Solutions (UK)
A double ground cutting edge, with special tip design to increase durability and reduce tip breakage. Suitable for cutting all types of materials especially tougher materials where extra stability is required.
Fabric tool head
Optional head for use on Evolution3 cutters with a cutting wheel for cutting more delicate materials and fabrics.
Creaser tool head
Optional head for use on Evolution3 cutters with three different shaped wheels for creasing corrugated and plain card.
Rocker tool head
The optional medium-duty Rocker head is a QuikSwap tool for the Evolution3. Used for general purpose cutting and aluminium composite panel cutting, e.g DiBond, with the Tech-D.012 blade.
Rectangular double-sided blades made from a higher grade steel than most comparable blades on the market giving increased durability and reduced blade tip wear/breakage.
Designed specifically for all sizes of Evolution3 SmartFold and Evolution E2. Extension kits are available for extra wide benches.
Additional item number(s): 61384
