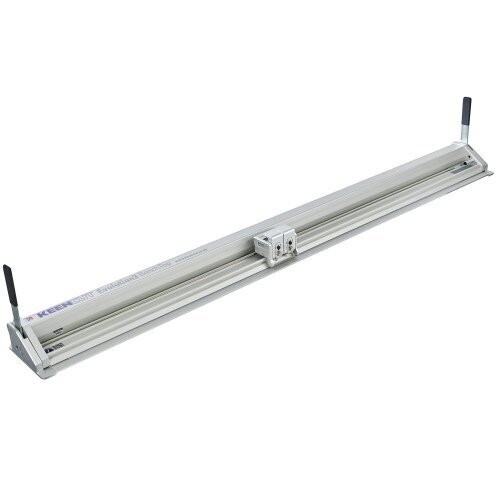

Keencut Evolution3 160" BenchTop Cutter - E3BT410
Single handed, fast and accurate cutting.

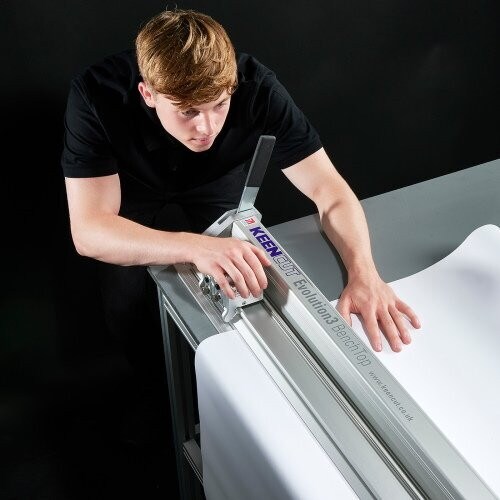

Permanently installed for immediate use, the Evolution3 BenchTop is perfect for a busy studio or high use production environment. Keencut’s unique Lift-and-Hover (patent pending) technology enables single-handed, fast and accurate alignment of all material, irrespective of thickness. Lower the clamping bar and it hovers just above the material surface with zero sag, even on the full length 5.5m (216") cutter. Use the sightline strip to see where the cut will be made, then fully engage the clamp – it’s so simple. You can rapidly change the QuikSwap heads to provide general cutting, creasing or fabric cutting, and you are always guaranteed ultra-high 0.2mm (0.008") precision accuracy with every cut.
Single handed operation:

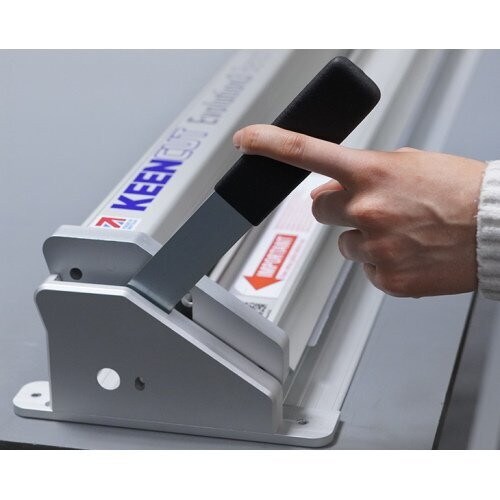

Two unique, patent pending features enable single-handed, fast and accurate alignment of all materials, irrespective of thickness. The Lift-and-Hover system enables the clamping bar to be easily raised and then lowered so it hovers just above the material surface. The anti-sag mechanism means the cutter bar can be suspended exactly parallel to the media surface over the whole length of the cut with zero sag.
The Evolution3 is the most accurate cutter of its type on the market and is guaranteed to cut within 0.2mm (0.008") of a straight line for the full length of the cut. The in-built ultra-precision accuracy, combined with the perfect alignment made possible using the sightline strip, means every butt-jointed panel will join seamlessly. This ultra-precision accuracy will save you time and money with less waste and fewer mistakes.
The self-adjusting track roller system fitted to the QuikSwap tool heads provides a strong and smooth movement up and down the length of the cutter bar, with zero sideways movement to ensure a perfect straight line. This, coupled with rigid blade clamping, gives perfect blade control and spot-on accuracy, so less wastage and mistakes.
Simple to use:
The combination of the Lift-and-Hover and the sightline strip really does make cutting easier and faster than ever before. Testing has proven that the Evolution3 features increase accuracy and the speed of production. The ease of use makes it possible for even first time users to cut confidently and accurately.
Heavy duty reliability:
The entire Evolution3 range has been built to last using high quality materials and well tested engineering principles. The cutting head bearing system and clamping are tough enough to keep perfect blade control, even with the most difficult of materials. Keencut makes the majority of components on its precision CNC machines keeping tolerances and quality under constant control, this assures exceptional accuracy and total reliability.
Future proof and versatile Quikswap tool heads:
The QuikSwap tool head family gives users the ultimate flexibility. Each tool is designed for a specific purpose, such as general cutting, creasing and fabric cutting and can be attached or detached from the cutter in seconds. You can mount single or multiple tool heads to suit your work and the Graphik tool head is supplied as standard with other optional QuikSwap tools available to extend your cutting capability. New tools are also being developed to meet emerging requirements.
The versatile Rocker head:
The optional Rocker tool head is the latest addition to the QuikSwap range. It is a versatile general-purpose tool for cutting materials such as banners, cardboard and foamboard up to 10mm (3/8"). The ergonomic design follows the natural curvature of your hand and offers maximum comfort for everyday cutting. It also provides two-way cutting – pulling to cut lighter weight materials and pushing for those that require more effort. For those who occasionally cut aluminium composite panels, such as Dibond or Alupanel, the Rocker head can be fitted with the Tech-D.012 blade. The cutting technique requires a series of careful strokes and we advise that you watch our video guide to perfect your cutting action.
Five year guarantee:
Like all Keencut machines, the Evolution3 is precision built using top quality materials. All components are manufactured in-house to ensure quality and all Evolution3 cutters come with a five year comprehensive guarantee. Register your product to activate your guarantee and enjoy years of easy, reliable cutting.
Also in the box:
- 100 Graphik blades
- Double Graphik tool head (mounted)
- Corrugated cardboard ≤ 13mm (1/2")
- PVC foamboard ≤ 13mm (1/2")
- Corrugated plastic ≤ 13mm (1/2")
- Foam centred board ≤ 13mm (1/2")
- Cast acrylic / Plexiglas ≤ 3mm (3/32") scoring only
- Aluminium composite panel, e.g. DiBond ≤ 3mm (3/32") Rocker tool head only, for occasional use
- Magnetic sheets
- Self-adhesive vinyls
- Delicate materials: tissue paper, wallpaper
A double ground cutting edge, with special tip design to increase durability and reduce tip breakage. Suitable for cutting all types of materials especially tougher materials where extra stability is required.
Fabric tool head:
Optional head for use on Evolution3 cutters with a cutting wheel for cutting more delicate materials and fabrics.
Creaser tool head:
Optional head for use on Evolution3 cutters with three different shaped wheels for creasing corrugated and plain card.
Rocker tool head:
The optional medium-duty Rocker head is a QuikSwap tool for the Evolution3. Used for general purpose cutting and aluminium composite panel cutting, e.g DiBond, with the Tech-D.012 blade.
Rectangular double-sided blades made from a higher grade steel than most comparable blades on the market, providing increased durability and reduced blade tip wear/breakage.
