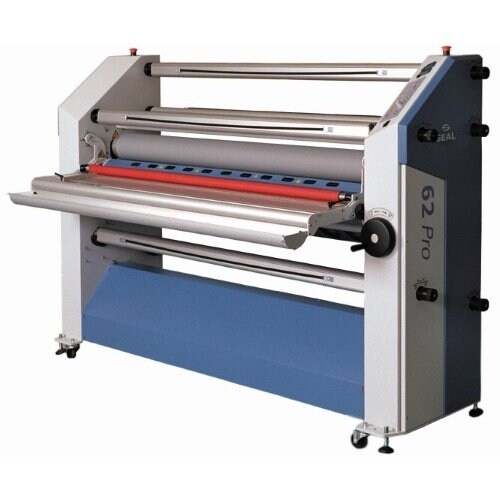

SEAL 62 Pro D Laminator, 61" Max. Width

The SEAL 62 Pro D is a 61" wide mounting laminator and encapsulator offering industrial performance at exceptional value. With fully adjustable dual temperature, speed and pressure settings, the 62 Pro D is ideal for the more experienced operator. The 62 Pro D is ETL and CE certified.

Features:

• Dual heated rollers make most applications, including encapsulation, easy while superior roller technology delivers better processing of soft substrates
• Laminates graphics up to 61" wide
• Capable of laminating at speeds up to 20 feet/minute
• 1 1/2" manual nip adjustment allows for precise operation and accommodates most substrates
• Roll-to-roll operation (from bottom unwind) to accommodate applications including vehicle wraps
• 14.28 lbf/in (2.5n/mm) line pressure for superior cold lamination

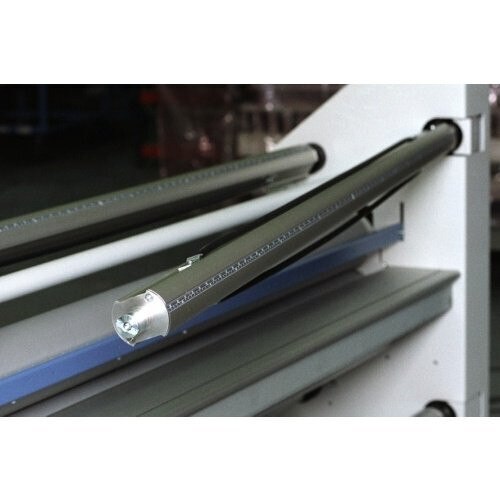

• Lightweight drop-in supply shafts with auto-grip for easy loading of materials in tight spaces
• Auto-grip upper take-up shaft for winding release liners
• Exclusive ‘stay-put' swing up feed table keeps table up, making media handling and set-up a snap and flip up pull rollers for no hassle loading
• Comprehensive safety system with emergency stops and self-checking safety eyes
• Foot switch for hands free operation
• Ergonomic touch pad control panel
• Image guide to ensure perfect alignment and roll trough to keep rolled prints in place before and during lamination both standard
• Optional easy-in feed table and slitter to make laminating a snap while the optional fan banks cools the machine down when both rolls are heated

Product Specifications

• Laminator Type: Wide Format
• Dimensions: 56.3" x 87.4" x 17.7"
• Core Diameter: 3"
• Laminating Speed: 20' per minute
• Film Type: Hot, Cold
• Roll Width: 61"
• Weight: 994 lbs ( 450 kg)
