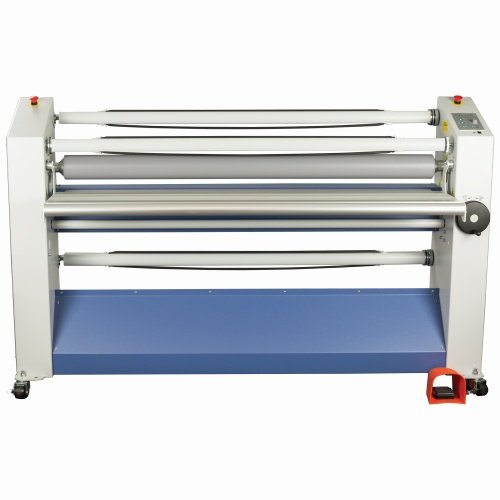

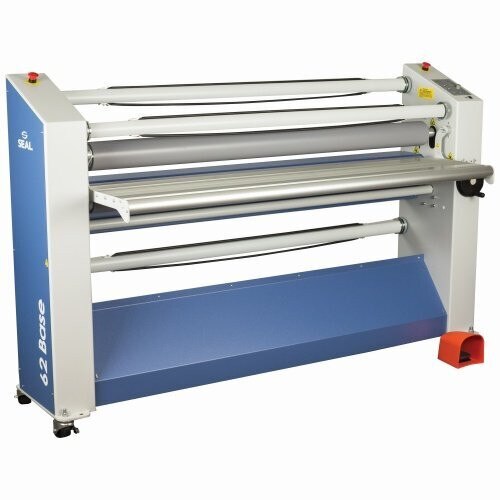

SEAL 62 Base-1 Laminator

The SEAL 62 Base is ideal for mounting and laminating pressure-sensitive graphics up to 61”, this machine represents a flexible package at an affordable price - without compromising its functionality. Equipped with adjustable pressure and speed settings for maximum versatility and a 2” nip opening to cover a wide range of substrates. The SEAL 62 Base is easy-to-use, and will deliver genuine flexibility and high performance levels for the small to medium grade user. The 62 Base is ETL and CE certified.

Features:

• Heat assisted top roller for superb lamination performance
• 61” working width to handle a wide range of media
• Adjustable pressure and speed settings with maximum operating speed of 16.4’/minute
• 2” nip with manual adjustment suitable for working with a sled for road signs
• Auto-grip shafts for user friendly webbing
• Swing-up feed table to facilitate easy set up
• Foot switch for hands free operation
• Self checking safety eyes for increased operator safety

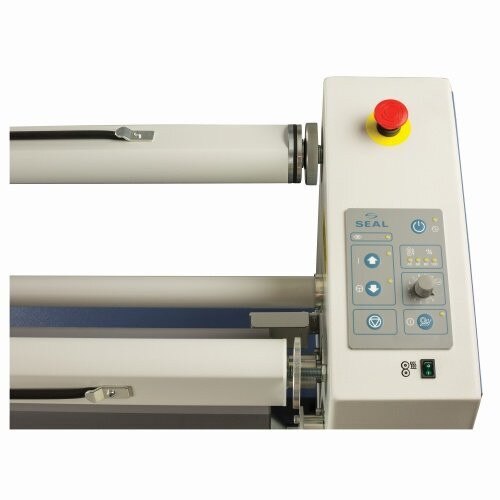

• Easy to use ergonomic control panel
• Optional rear power take up for roll-to-roll applications including vehicle wraps
• Optional image guide ensures perfect alignment and flat lamination
• Optional roll trough keeps rolled prints in place before and during lamination
• Optional leveling feet keeps the laminator stable for the highest quality finished product

Product Specifications:

• Laminator Type: Wide Format
• Dimensions: 52" x 82" x 27"
• Core Diameter: 3"
• Laminating Speed: 16.4' per minute
• Film Type: Cold
• Roll Width: 61"
