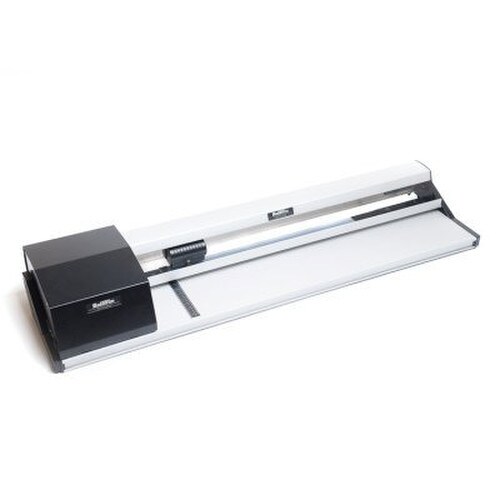

Rotatrim PowerTech 73" High Speed Power Technical Rotary Trimmer

$5,665.50
SKU: FS-60435

Ships via Truck

Details

Rotatrim PowerTech 73" High Speed Power Technical Rotary Trimmer

An “all day, every day-use” trimmer that cuts up to 100"

The PowerTech is a powered version of the Technical, operated by a foot pedal. Heavy-volume, large-format shops will see a quick return on investment through reduced manpower and increased productivity.

  • The PowerTech frees both hands and decreases operator fatigue.
  • The trimmer is electrically driven through a steel-reinforced belt for longevity.
  • All-metal construction (and extruded aluminum baseboard, end frames and head) ensure robustness.
  • An auto-lifting clamping mechanism locks materials into place as the head begins to cut, then automatically releases at the completion of the cut; prevents material and substrate scratching.
  • A triple roller mechanism provides extreme down force for the cutting of heavy materials (maximum cut depth of 3mm).

If you’re looking for an “all day, every day-use” extremely heavy duty rotary trimmer that is capable of cutting the widest array of substrates and materials – from flexible to semi-rigid– this large format powered trimmer (up to 100") is the answer. The PowerTech’s normal speed variant cuts at 0.5M/sec and is better for trimming heavier materials.

Optional Stand & Waste Catcher Package:

  • This convenient quality steel stand that supports the Rotatrim PowerTech Series trimmers offers rigid support at the ideal working height of 34 inches. Black finished, this stand includes an integrated, transparent space-saving waste catcher that secures off cuts.

Helpful Hints:

Two-way cutting option is available on all Rotatrim machines by removing the overload protection plate. The overload protection system ensures that it is virtually impossible to overload the machine. But, if cutting appropriate material, this plate can be removed in order to offer bi-directional cutting.

Perfect for Cutting Up to 3mm:

  • Aluminum (.5mm)
  • Banners
  • Canvas
  • Card
  • Cellophane
  • Cibachrome
  • Cork
  • Digital prints
  • Encapsulations
  • Engraving lam (1mm)
  • Flexographic plates (.067")
  • Floor graphics
  • Foamex (1mm)
  • Foil
  • Inkjet paper
  • Laminations
  • Leather
  • Lithoplate
  • Magnetic Vinyl
  • Masonite (2mm)
  • MDF (2mm)
  • Mount board
  • Photo Paper
  • Photo Film
  • Polyester
  • Polystyrene
  • Posters
  • Self-adhesive film
  • Tissue paper
  • Veneers

Outstanding Features of the Pro Series:

  • All-metal construction (and extruded aluminum baseboard, end frames and head).
  • Triple roller mechanism provides extreme down force for the cutting of heavy materials.
  • Maximum cut depth of up to 3mm.
  • Trimmer Voltage: 120V

Self-Sharpening, Long-lasting, Rotary Blades

Ground to extremely tight tolerances twice and then deflashed to remove any edge burring.

An initial hollow grind places a concave profile to the inside of the blade and a chisel grind creates an angled bevel edge on the blade for precision and outstanding longevity.

Foot Pedal Operated

The trimmer is electrically driven through a steel-reinforced belt for longevity.

The cutting head will move alternately from left to right and right to left each time the footswitch is depressed.

Optional 36" Rule Extension:

  • For improved accuracy and versatility. Fits all Rotatrim Technical sizes; model# 62326).

Optional Stand & Waste Catcher Package:

  • 34" H Black finished Stand with an integrated, grey waste catcher.

Optional Stand Mounted Roll Dispenser:

  • The Roll Dispenser attaches to the stand and waste catcher. Adjustable arm rods and cones allow for variable thickness and length rolls.

Features:

  • Two-way cutting option is available on all Rotatrim machines by removing the overload protection plate
  • Triple roller mechanism
  • ISO9001:2008 quality certified
  • Powered trimmer operated by a foot pedal
  • 1 year general warranty under normal use (excluding cutting wheels, motors and clamping strips)
  • 100% made in England

Rotatrim PowerTech

60400Rotatrim PowerTech 26" Rotary Trimmer
60405Rotatrim PowerTech 38" Rotary Trimmer
60410Rotatrim PowerTech 49" Rotary Trimmer
60420Rotatrim PowerTech 61" Rotary Trimmer
60425Rotatrim PowerTech 61" High Speed Power Technical Rotary Trimmer
60430Rotatrim PowerTech 73" Rotary Trimmer
60435Rotatrim PowerTech 73" High Speed Power Technical Rotary Trimmer
60440Rotatrim PowerTech 85" Rotary Trimmer
60450Rotatrim PowerTech 100" Rotary Trimmer

Stand & Waste Catcher Package:

62840For 26" PowerTech (60400)
62841For 38" PowerTech (60405)
62842For 49" PowerTech (60410)
62843For 61" PowerTech (60420)
62844For 73" PowerTech (60430)
62822For 85" (60440) & 100" (60450) PowerTech
62845For 100" (60460) PowerTech

Rotatrim Roll Dispensers:

62832For 26" PowerTech (60400)
62833For 38" PowerTech (60405)
62834For 49" PowerTech (60410)
62835For 61" PowerTech (60420)
62836For 73" PowerTech (60430)
62837For 85" PowerTech (60440) & 100" PowerTech (60450)

Accessories and Cutting Wheels:

69305Replacement Cutting Wheel for all PowerTech trimmers
6232636" Rule Extension Kit- Fits all PowerTech trimmers
