SEMI AUTOMATIC PUNCHING
The semi automatic system developed by Renz, creates an entirely new
class of machines. It is the first punching system to feature ease of
operation, high output speeds, and flexibility at an economical price.
An EXAMPLE of how you can save time and money:
punching books in all formats, includingl A4, 60 sheets of 80g/m² (20#bond), you can produce:
– traditional punching: approximately 70 to 100 books/h**
– with DTP 340 A in semi-automatic mode approximately 300 to 350 books/h**
** Depending on the operator
Articles

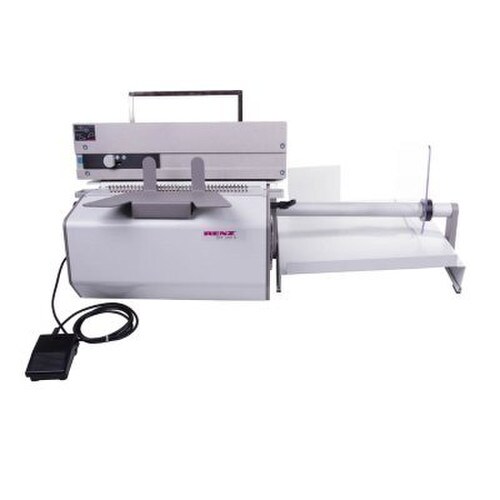

Renz DTP 340 A
Article no.: 363400212
EAN: 4029126470395
Features:
- The fastest punching system in its class
- Simple control panel for adjustment of all parameters
- Paper stop with sensor activates the punching cycle
- Paper tray collects punched sheets
- Quality - Made in Germany
Technical Details:
| Punching speed: |
max. 26.000 sheets/h (depends on product, logistics und operator) |
| Working width: |
340 mm (13,5?) |
| Punching thickness: |
max. 3,5 mm / 35 sheets
(70/80 gr./m² paper, 20# bond) |
| Deselectable punching pins: |
yes |
| Change of dies: |
in less than 1 minute |
| Paper feed: |
vertical |
| Machine: Lenght x Width x Height: |
88 x 64 x 38 cm
(34,7 x 25,2 x 15?) |
| Weight: net / gross: |
52 kg / 89 kg
(114,4 lbs. / 196 lbs.) |
| Packing – Length x Width x Height: |
crate / 108 x 60 x 50 cm
(42,5 x 23,6 x 20?) |
| Electrical connection: |
230 V / 50 Hz / 300 Won request115 V / 60 Cc. / 300 W |
| Paper ejection: |
horizontal – automatic |
| Exchangeable dies: |
yes |
| Change of format: |
fast change-over time by de-selectable punching pins |
| Variable margin clearance: |
yes |
| International voltages: |
all local voltages available on demand |
|
|
|
|
|
