The MBM Triumph 3905 has been replaced by the Triumph 4305. This Triumph machine is a manual tabletop cutter with spindle-guided back gauge, fast-action clamp, and SCS safety features.
SCS safety features: hinged, transparent safety guard on front table (locks automatically while cutting); transparent safety cover on rear table; safety catch (locks blade lever in up position); blade changing device covers cutting edge of blade; blade depth adjustment from outside of machine; blade and cutting stick can be changed without removing covers.
Features:
- Spindle-guided back gauge with calibrated crank and measurement scale
- Patented, lever-activated, fast-action clamp
- Precision side guide with measurement scale (mm / inches)
- High quality, German steel blade
- Solid steel blade carrier and adjustable blade guides
- All-metal construction

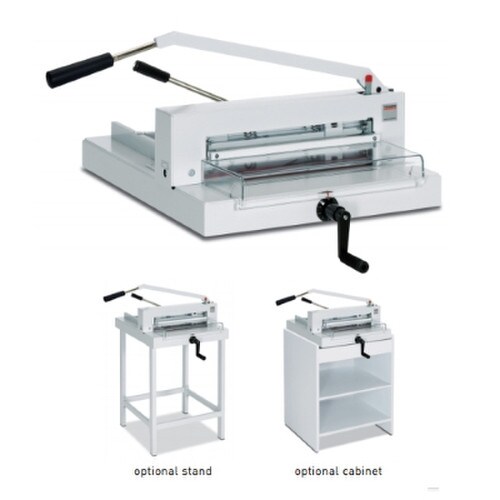

- Optional stand (shown above), or cabinet with storage shelves
- UL and C UL approved.
Dimensions (D x W x H), inches: 34 5/8 x 34 5/8 x 15 3/4 (45 1/4 H with stand, 44 H with cabinet)
Shipping weight, pounds: 115 (141 with stand, 210 with cabinet)
| Cutting width, inches |
16 7/8 |
| Cutting height, inches |
1 1/2 |
| Narrow cut, inches |
1 5/16 |
| Length behind blade, inches |
17 |
|
|
|
|
|
