  • James Burn Wire-O Bind 3000S Semi-Automatic Binder

James Burn Wire-O Bind 3000S Semi-Automatic Binder

SKU: JB-04JBWOB3000S

Quantity discounts available:

QuantityPrice
  • Speed up to 1,000 documents per hour.
  • Document thickness - Up to 1-1/8" (28 mm)
  • Allows all types of Wire-O® binding styles for a wide variety of documents
  • Wire-O® size changeovers are done in 2-5 minutes including spool replacement.

Details

Details

Take advantage of the James Burn Wire-O Bind 3000S Semi-Automatic Binding Machine's exceptional productivity. This semi-automatic binding machine offers unparalleled versatility when used with Wire-O spools or cut lengths. By allowing settings for sizes and formats to be programmed in and altered without the need for manual changes, the distinctive touch screen digital keypad simplifies setup and operation. The document can be correctly aligned without the use of stops or paper guides by sending it to the closing unit. This wire binding machine automatically feeds, chops, and positions the wire element so that it is prepared for insertion. Because of this automatic setup, waste is also reduced.

Because of its versatility, the WOB3000S can bind a variety of papers with flush cut or overlapping covers as well as larger index tab paper stocks. The task is completed quickly and with little effort thanks to a pace of up to 1,000 documents per hour. Even simple tasks like switching the size of the Wire-O connector and replacing spools can be finished in 2 to 5 minutes.

The machine's ergonomic design, which offers a spacious table-top workplace, considerably reduces fatigue. This useful tool is transportable and comes with easy-rolling rollers. Use the James Burn Wire-O Bind 3000S Semi-Automatic Binding Machine to automate wire binding for a quick and effective binding procedure.

Features:

  • Versatile: By employing Wire-O® spools or cut lengths, it is possible to use all forms of Wire-O® binding techniques for a variety of documents with flush cut or overhanging covers as well as extended index tabs.
  • Effective: One hour can be used to handle 1,000 pages. Waste can be decreased by using an automated setup. There are three additional plug-and-play reception kinds that can support a variety of workflow scenarios.
  • User-friendly: No mechanical changes are required because all size and format sets are instantaneously customizable using a "touch screen" digital keypad. The spool can be replaced, along with the size of the Wire-O, in 2 to 5 minutes.
  • Thanks to adaptive design, a large tabletop workstation reduces operator fatigue. Because of its caster wheels, it can fit in any location without the need for air.
  • Safety: Components created for the safest operation.



Specifications:

Item #04JBWOB3000S
BrandJames Burn
Manufacturer Part Number04JBWOB3000S
Max document size12" B.E. (300mm) x 13" (330mm)
Min document size1.5" B.E. (38mm) with spools or 2.8" B.E (71mm) x 1.5" (38mm) with cut lengths
Document thicknessUp to 1-1/8" (28 mm)
Cycle speedUp to 1 000 documents/hour
Wire-O® sizes3:1 Pitch 1/4" to 9/16" & 2:1 Pitch 5/8" to 1-1/4"
Oversize coversPossible
Skip binding1 with 2 loops min. (Only in spool mode)

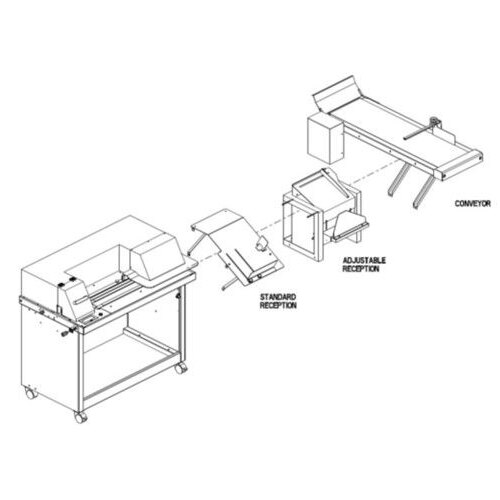

Reception capacity with standard trayup to 2" (50mm)

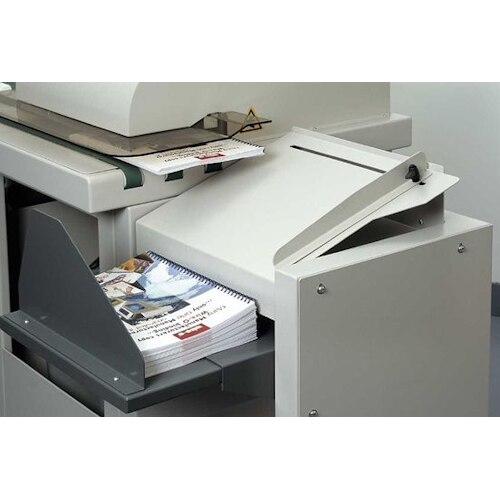

Optional adjustable reception binup to 7" (180mm)

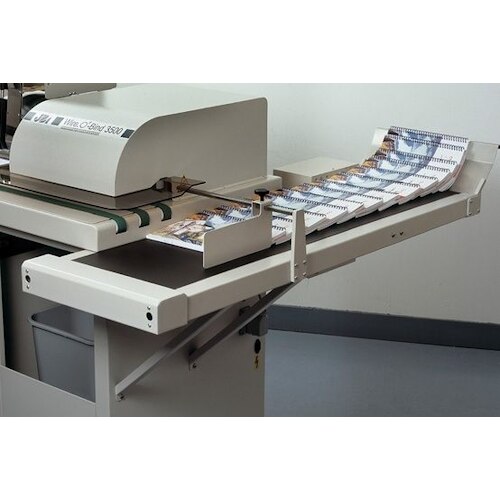

Optional conveyor receptionup to 50 books 3/8" (10 mm) thick

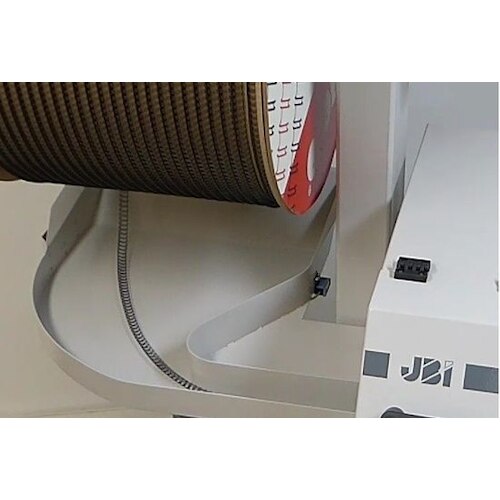

Spool change overIn less than 5 minutes
Control panelTouch screen
Format set upFully automatic
Format set up timeless than 2 minutes
Power110/120 V (60Hz) 1ph
Machine dimensions with standard reception ( L x W x H)8'x 2' 10"’x 5' (2250 x 850 x 1540 mm)
Net weight550 lbs. (250 kg)
