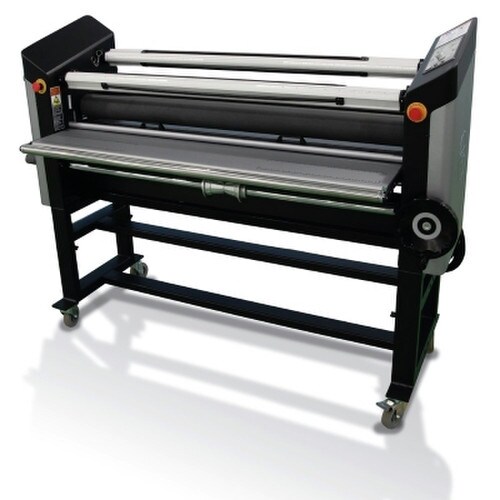

GBC SPIRE II 64C - 64" Cold Wide Format Laminator - 1737181

SKU: GBC-Spire-II-64C
Replaced by the Tamerica TCC 1655 HC 65" Wide Format Hot and Cold Laminator

Click the link above to view the new model's info.

Ships via Truck


Spire II 64C takes cold laminating to a new level. The top of the line machine features sleek yet durable, all steel design and capabilities found in only premium machines.

Created to protect heat sensitive media, the Spire II 64C promises improved productivity, versatility and quality – all at a great price. Featuring run speeds up to 16 feet per minute and 2" mounting capabilities, the Spire II 64C makes laminating and mounting displays, tradeshow graphics and easier than ever.


  • Simple, intuitive control panel with LED
  • Variety of speed adjustments for operator comfort
  • Removable front feed table and fixed rear output table facilities roll changing and feeding
  • Foot pedal for hands-free operation
  • Up to 64" wide laminating and mounting capabilities
Item number1737181
Laminating Width64"
Unwinds / RewindsTop - 1 Unwind, 1 Rewind
Bottom Front - 1 Multicore Media Unwind
Lower Rear - 1 Optional Rewind
Maximum Speed16 ft./min. — Variable
Nip Roller Diameter4"
Maximum Mounting Gap1-3/8"
Type of Roller Pressure Adjust.Infinite crank handle with scale indicator for gap and LED pressure readout
Protective Shield (Main Rollers) Photo Eye
Foot SwitchYes
Type of Supply ShaftsDrop In, AUTOGRIP with additional media unwind shafts
Maximum Film Outside Diameter8.5"
Digital KeypadYes
Front and Rear Feed TablesFront, Removable
Rear, Fixed
Pivot-up, Optional
Drive SystemSprocket & Chain
Rear Cut OffOptional
Roll-to-Roll CapabilitiesOptional
Available StandStandard
Weight, lbs.690 lbs. - Free Shipping!
Voltage/Amperage115 VAC, 13 Amps (NEMA 545)

Free Shipping included! Order yours today, or call us at 1-866-455-9900 to order the Spire II 64C by phone.
