Square iT2
SQUAREBACK BOOKLET FINISHER
- Squares binding and trims face edge
- Color touchscreen with text and bold graphics
- Three-sided full-bleed trimming
- Outfeed conveyor stacker
- Compact unit with casters for mobility

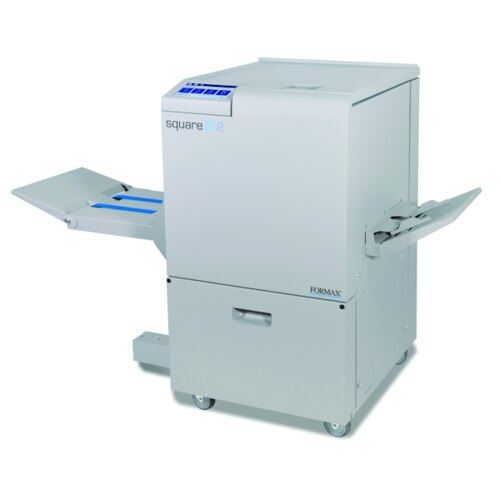

The Square iT2 Squareback Booklet Finisher is a compact unit that squares booklet bindings and trims the face edge in a single pass. Squarebacked booklets lie flat, making them easier to pack, store, and ship, with the added option of printing on the spine. For full-bleed jobs, the side trim function trims the top and bottom of the booklet in multiple passes. The Square iT2 accommodates a wide range of booklet sizes, from 5" x 4.15" up to 12.6" x 12.2". It can handle booklets of up to 50 folded and stapled sheets / 200 page booklets of 20# Bond. The user-friendly color touchscreen allows operators of any skill level to store and recall custom job settings or simply walk up and start producing finished booklets.
DESIGN
- Easy-To-Use Color Touchscreen: Graphics and text offer step-by-step setup instructions
- Infeed Options: Hand-feed booklets or run in-line with a digital printer
- Full-Bleed Trimming: Face trim with top-bottom trimming in multiple passes
- Outfeed Conveyor Stacker: Keeps finished booklets in a neat, sequential order
- Convenient Waste Tray: Trimmed edges are collected in the waste tray for easy disposal
STANDARD FEATURES
- Squares bindings on booklets up to 50 folded/stapled sheets
- Graphics-based color touchscreen
- Squares and face trims in a single pass
- Automatic belt stacker keeps booklets in a neat, sequential order
- Waste tray is easy to access and empty
- Rugged, all metal unit with heavy-duty casters
- Automatic / manual settings
- Adjustable pressure setting for perfectly squared bindings
- Hand-feed or use in-line with digital printer
- Programmable jobs
- Choose from standard sheet sizes, or create custom settings
- Full-bleed trimming with multiple passes
- Resettable counter
- Multiple languages available on control panel
SPECIFICATIONS
| Speed | Up to 900 booklets per hour |
|---|---|
| Duty Cycle | Up to 20,000 booklets per month |
| Number of Sheets | Up to 50 stapled and folded / 200 page booklet 20# bond * |
| Paper Weight | 63 - 350gsm |
| Input Book Size | Min: 5.85" W x 4.15" L (149 x 105mm) Max: 12.6" W x 12.2" L (320 x 310mm) |
| Finished Book Size | Min: 5.85" W x 3.93" L (149 x 100mm) Max: 12.6" W x 12.2" L (320 x 310mm) |
| Face & Side Trimming | Min: 0.04" (1mm) Max: 8.26" (210mm) |
| Dimensions | 56" W x 27" D x 39" H (1422 x 689 x 990mm) |
| Weight | 313 lbs |
| Power | 100 / 240V, 50-60Hz |
*Squaring and trimming is subject to the number of sheets and paper weight
