Formax FD87 Plasti Plastic & Laminate Shredder
Details
Details
FD87 Plasti
PLASTIC & LAMINATE SHREDDER
FEATURES
- Dual Blade System: Strip Cut and Spiral Cut heat-treated solid-steel blades work together in a two-stage process
- LED Control Panel: Easy to use with load indicator and energy-saving ECO Mode

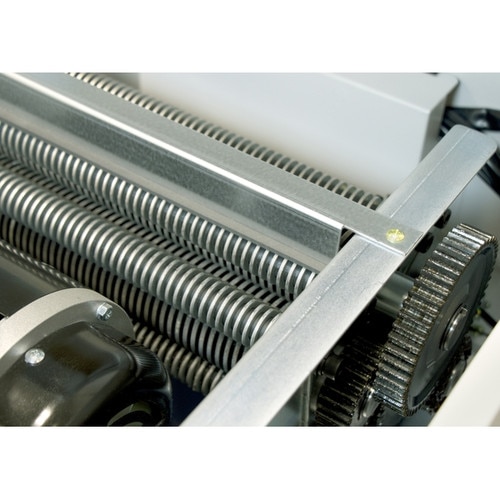

- All-Metal Gears: Heavy duty steel gears for high performance and minimal noise
- Heavy Duty Waste Bin: Rugged molded plastic with a lifetime guarantee
- Rugged all-metal cabinet on casters
- Shreds plastic sheets, laminated cards, and more
Specially designed dual-blade system handles plastic and laminated sheets

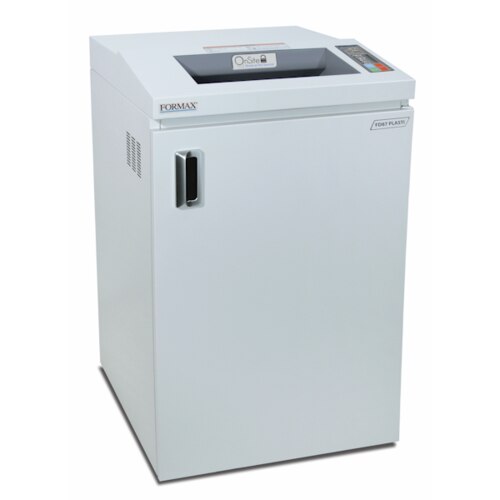

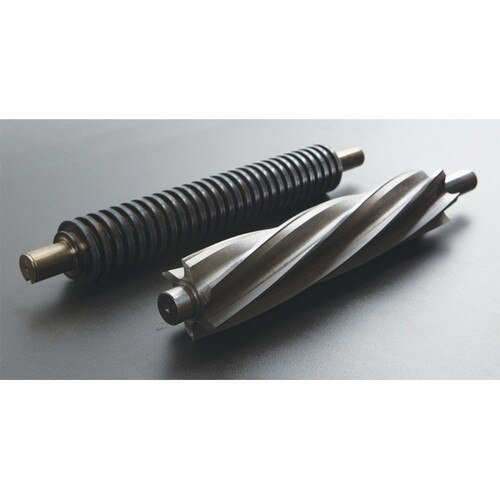

The FD 87 Plasti Shredder features a two-stage dual-blade system to quickly shred plastic sheets, laminated cards, paper and more. The special cutting system uses a strip cut blade, in conjunction with a spiral blade to ensure efficient shredding while avoiding jams. The solid steel blades are heat-treated and specially ground for longevity and minimal maintenance. Standard features include a user-friendly LED control panel, steel cabinet with heavy-duty casters, lifetime guaranteed waste bin, and a powerful AC geared motor for years of reliable performance.
DESIGN

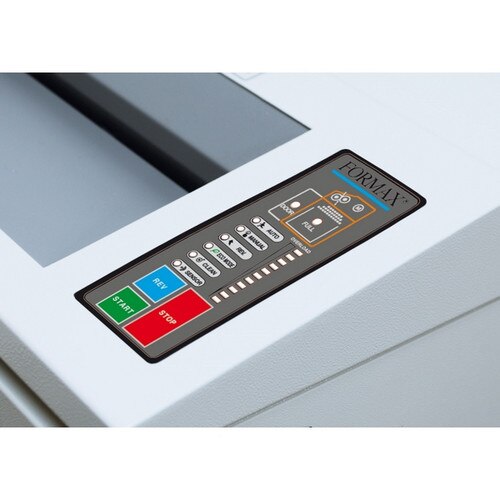

- Easy-to-Use Control Panel: Auto reverse, auto stop, and door open/bin full indicator lights
- Heat-Treated Steel Cutting Blades: Specially ground steel for durability, longevity, and minimal oil
- Dual-Blade Shredding: Strip cut and spiral cut work together in a two-stage process
- Rugged All-Metal Cabinet: Includes casters for mobility

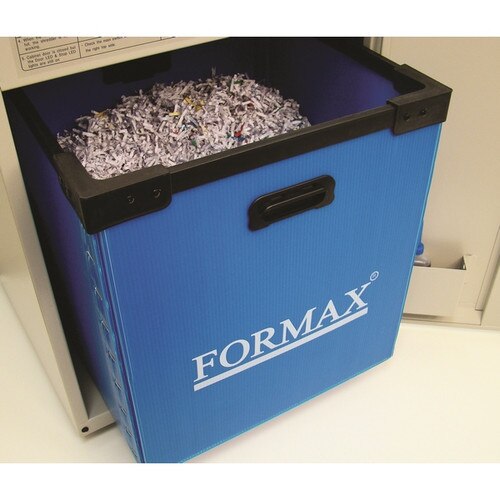

- Durable Waste Bin: Lifetime guaranteed rugged molded plastic for durability
OPERATING FEATURES
- Dual-blade cutting system
- Heat-treated steel cutting blades
- Auto start/stop/reverse
- LED control panel
- Load indicator
- ECO mode
- Door safety sensor
- Rugged AC geared motor
- All-metal cabinet with casters
- Waste bin full sensor
- Lifetime guaranteed heavy-duty waste bin
- Auto cleaning
- Oil indicator
- Thermal overload protection
- Safety circuit breaker
- Manual function
SUPPLIES
- Cutting Head Lubricating Oil: #8000-10, six 8-ounce bottles
- Shredder Bags: #8000-50, case of 100
WARRANTY
- All parts: 1 year warranty
SPECIFICATIONS
| Cutting Style | Cross Cut |
|---|---|
| Shred Size - laminated | .12" x .55" (3 x 14mm) |
| Shred Size - paper | .24" x .55" (6 x 14mm) |
| Paper Capacity | 36 to 38 sheets* |
| Laminate Capacity | 1mm to 2.25mm stack** |
| Speed | 10 fpm (3m) |
| Feed Opening | 12.2" (31cm) |
| Dimensions | 21.6" W x 21.6" D x 38" H (55 x 55 x 89cm) |
| Bin Capacity | 30 gal (114l) |
| Weight | 238 lbs (108kg) |
| Security Level | P-4 |
| Certifications | CSA approved |
| Power supply | 115V, 60Hz, 400W |
* Paper capacity varies depending on paper type and power supply
** Capacity varies based on laminate thickness and power supply. Samples can be sent to Formax for testing.
