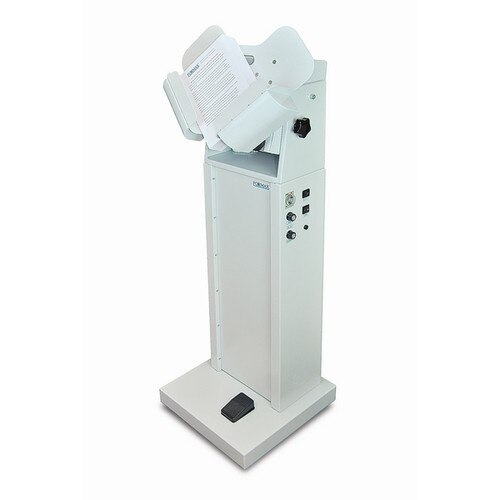

Formax FD 404A1 High-Capacity Air Jogger

FD 404A1

HIGH-CAPACITY AIR JOGGER

• Dries, aligns, and reduces static electricity
• Up to 3,000 vibrations per minute
• Convenient foot pedal control
• Variable air pressure, up to 29,000 rpm
• Tilting jog bin adjusts from vertical to horizontal

The FD 404A1 High-Capacity Air Jogger offers variable vibration speed and air pressure controls to reduce static electricity while allowing press sheets and digital printouts to be air-dried immediately. The convenient foot-pedal switch allows for two-handed loading and unloading. Its V-shaped jog bin is ideal for jogging a criss-cross stacked pile of papers, while the vertical-to-horizontal tilt feature helps keeps large paper stacks from bending. Using the 60-second countdown timer, operators can set it for unattended jogging. With a capacity of up to 940 sheets and rugged all-metal construction, the FD 404A1 is an ideal piece of equipment for any print shop.

DESIGN

• Countdown Timer: Set the 60-second countdown timer for accurate unattended jogging
• Variable Air Pressure: Up to 29,000 rpm, adjustable for heavy stock
• Variable Jog Speed: Up to 3,000 vibrations per minute, adjustable for heavy stock
• Tilting Jog Bin: V-shaped bin adjusts from vertical to horizontal for large format paper
• Convenient Foot Pedal: Allows for easy two-handed paper loading and unloading

STANDARD FEATURES

• Align, dry, and remove static in one step
• Convenient foot pedal control
• Easy-to-use control panel
• Variable speed up to 3,000 vibrations per minute
• Handles sheets up to 12" x 18"
• Variable air pressure up to 29,000 rpm
• Tilting jog bin
• Holds up to 940 sheets of 20# paper
• 60-second countdown timer
• Capable of unattended jogging
• Three operating modes: vibrate and air, air only, vibrate only

SPECIFICATIONS
