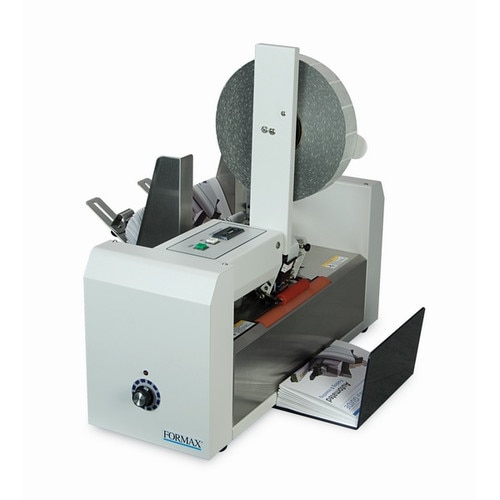

Formax FD 262 Tabber Single-Head Tabbing System

FD 262 Tabber

SINGLE-HEAD TABBING SYSTEM

• Tabs up to 12,000 pieces per hour
• “Crash tab" technology

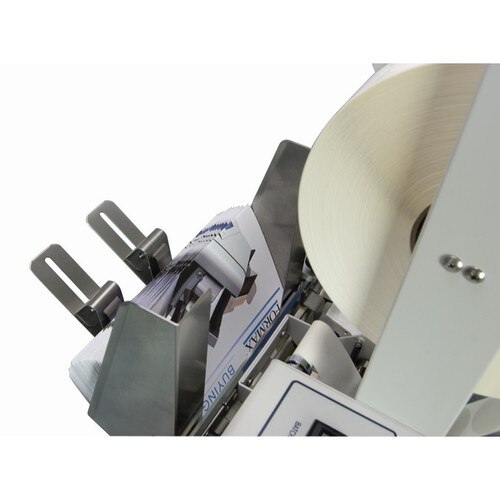

• Integrated bottom feeding for continuous operation
• Handles media up to 5/32" thick
• Built-in waste take-up spool

The FD 262 Single-Head Tabber uses “crash tab" technology to apply tabs to folded mail pieces, and is designed to meet all USPS requirements for mailing and automation discounts. The FD 262 tabs up to 12,000 pieces per hour (8 1/2" tri-folds), and handles media up to 17" wide, up to 5/32" thick. Its advanced design includes an integrated bottom feeder allowing for continuous operation, and a built-in waste take-up spool to reduce down time. The controls include a 5-digit resettable LCD counter and a tab sensitivity control to adjust for tab stock density. Various tab stocks can be used, including translucent, paper, and clear, in sizes up to 1 1/2" in diameter. An optional 3-foot drop-stacking conveyor is also available.

DESIGN

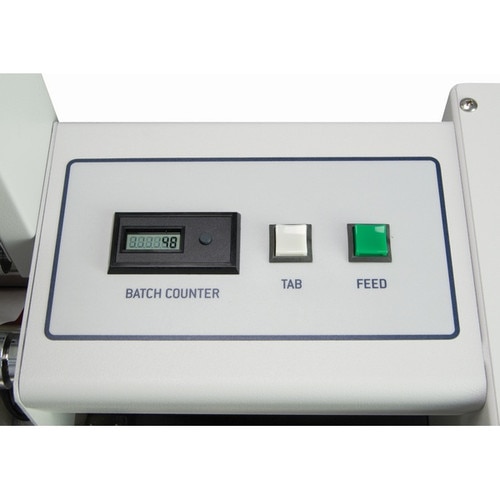

• User-Friendly Controls: 5-digit resettable LCD counter and a tab sensitivity control

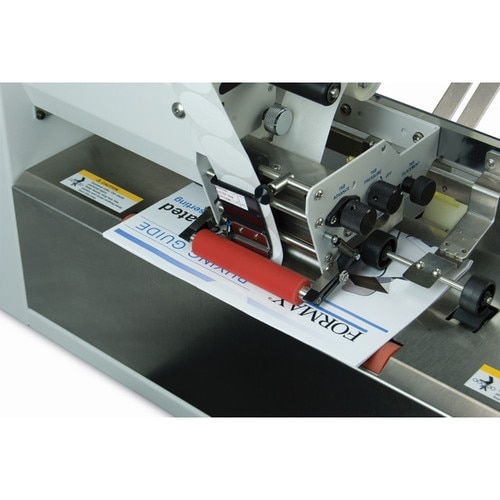

• Applicator and Rollers: Ensure tab is tightly folded and sealed to the media

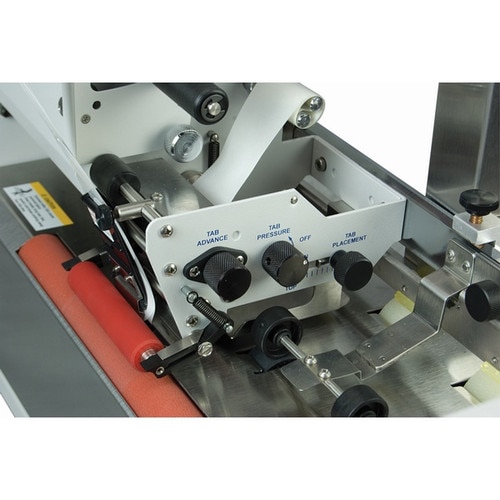

• Easily Accessible Knobs: Easily access knobs to adjust tab placement
• Integrated Bottom Feed: Holds up to 200 tri-fold pieces, designed for continuous operation
• Optional Drop-Stacking Conveyor: 3-Foot conveyor/stacker offers adjustable speed from 0 - 124 fpm

STANDARD FEATURES

• Tabs up to 12,000 pieces per hour
• Integrated bottom feeder
• User friendly controls
• 5 digit LCD counter
• Built-in waste take-up spool
• Tab sensitivity control
• Handles media up to 17" wide
• Uses rolls of up to 10,000 tabs
• Continuous media loading
• Easily accessible knobs for tab placement
• Applicator and rollers ensure tabs are tight
• Made in USA

OPTIONS

• FD 282-30 Drop-Stacking 3-Foot Conveyor

SPECIFICATIONS
