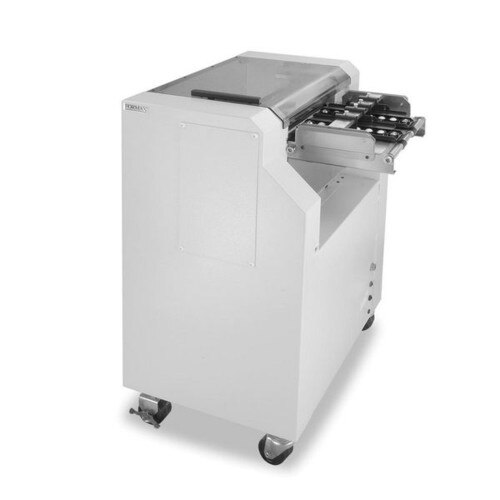

Formax AutoSeal FD 2200-10 Stand-Alone Pressure Sealing System

AutoSeal® FD 2200-10

STAND-ALONE PRESSURE SEALING SYSTEM

• Stand-alone pressure sealing system
• Integrates easily into floor model folders
• Precision ground clutching 4-roller system
• Three interface connections
• Eight-ball transfer deck

The FD 2200-10 Stand-Alone Pressure Sealer is the ideal solution for high-volume mailers who want to utilize existing floor model folding systems. Purchasing a “sealer-only" system versus a complete folding and sealing solution drastically reduces the up-front cost of adding pressure seal capability. The FD 2200-10 processes forms at speeds of up to 40,000 per hour, combined with heavy-duty construction built to last in demanding environments. Standard features include a precision ground clutching four-roller system, 8-ball transport deck for a smooth transition from the fold rollers to the sealer, infrared fault detectors, safety interlock, mounting bracket, plexi-cover, static eliminator, and heavy-duty casters.

STANDARD FEATURES

• Designed to work with various floor model folders
• Heavy duty construction
• Precision ground clutching four-roller system
• Infrared fault detection
• Clutching rollers reduce belt & motor wear
• Safety cover interlock
• Static eliminator
• Three interface connections
• Hinged plexi-cover
• 10-inch 8-ball enclosed transport deck
• Adjustable height heavy-duty casters
• Mounting bracket for secure attachment to folder

SPECIFICATIONS
