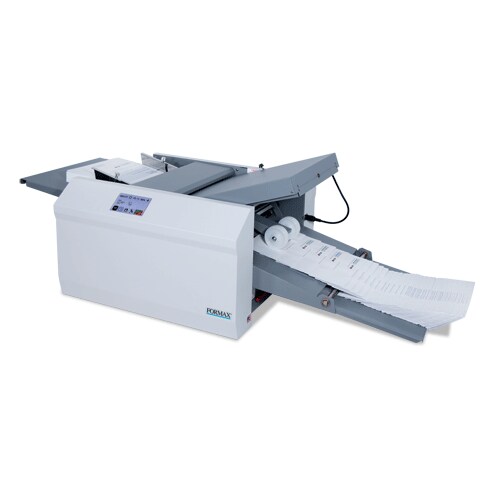

Formax AutoSeal FD 2056 High-Volume Tabletop Pressure Sealer

AutoSeal® FD 2056

HIGH-VOLUME TABLETOP PRESSURE SEALER

• Color touchscreen
• High volume, up to 16,450 forms per hour
• Processes forms up to 17" long
• Integrated conveyor holds up to 500 forms
• Automatic form size detection

The AutoSeal® FD 2056 is a fully automatic high-volume tabletop pressure sealer, which can process forms at up to 16,450 per hour. Stand-out features include a color touchscreen control panel, drop-in feed system, and an integrated telescoping conveyor which extends to hold up to 500 forms. The FD 2056 automatically senses and adjusts for form sizes including 11", 14" and 17", and the AutoStackTM wheels automatically adjust for neat, sequential stacking. It features 5 preset standard folds and the ability to store up to 35 custom fold settings. The advanced software allows for all standard fold types and form sizes to be customized. Options include the V-Stack36i which vertically stacks up to 22" of processed forms for easy unloading. Proudly made in the USA, the FD 2056 is an ideal high-volume solution for pressure-sensitive mailers.

DESIGN

• Color Touchscreen Control Panel: Graphics-based and designed for easy, walk-up use
• Integrated Telescoping Conveyor: Extends from 14" to 36" in length and holds up to 500 folded pieces
• AutoStackTM Stacker Wheels: Fully automated to adjust for various form sizes
• Removable Feed Wheels: Easily accessible to change without removing side covers
• Optional V-Stack36i Stacker: Vertically stacks up to 22" of folded documents, for easy unloading

STANDARD FEATURES

• Processes up to 16,450 forms per hour
• Color touchscreen control panel
• Drop-in feed system, no paper fanning
• Handles forms up to 17" long
• Automatically adjusts for various form sizes
• Integrated telescoping conveyor
• AutoStack™ Wheels
• Pre-programmed for 5 common folds
• Stores up to 35 custom jobs
• Insulated for noise reduction
• Six-digit resettable counter
• AutoBatch™ counter
• Adjustable feed table pressure
• Seven-point fold stops for accuracy
• Removable roller cover
• Easy-off feed wheel shaft
• Double feed detection

OPTIONS

• Locking Cabinet: Fully enclosed for storage
• 402 Series Jogger: Reduces static electricity and aligns forms for proper feeding
• V-Stack36i Stacker: Vertically stacks up to 22" of folded documents, making them easier to unload

SPECIFICATIONS

U.S. Patents 5,772,841 5,865,925 5,968,308 6,264,592
