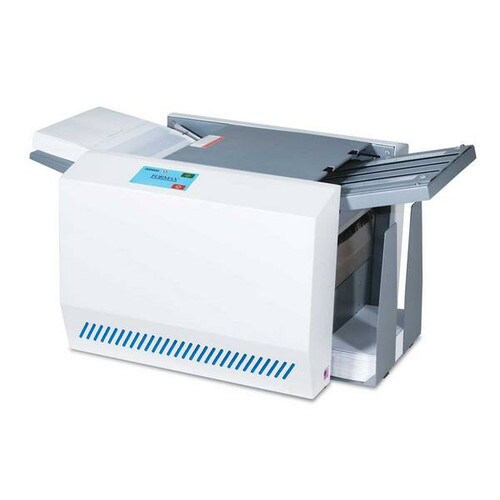

Formax AutoSeal FD 1506 Mid-Volume Pressure Sealer
Details
Details
AutoSeal® FD 1506
MID-VOLUME PRESSURE SEALER
- Color touchscreen control panel
- Drop-in feed system
- Six-digit resettable counter
- Processes up to 100 forms per minute
- Handles forms up to 14" long
The FD 1506 AutoSeal® is a user-friendly mid-volume solution for processing pressure sensitive mailers, frequently used for applications that can be printed on one sheet, including checks, invoices, school reports, and tax forms. It processes a variety of forms, up to 14" in length, at speeds of up to 100 forms per minute. Standard features include a graphics-based color touchscreen, drop-in top feed system, adjustable catch tray, and clearly marked fold plates that can be set for custom folds. Fold types include Z, C, Uneven Z and C, Half and custom. The FD 1506 is proudly built in the USA with proven Formax technology, and is ideal for any church, school, or small business looking to utilize the convenience of pressure seal forms.
DESIGN
- Color Touchscreen Control Panel: Graphics-based and designed for easy, walk-up use
- Drop-In Feeding System: Produces dependable feeding of forms without paper fanning

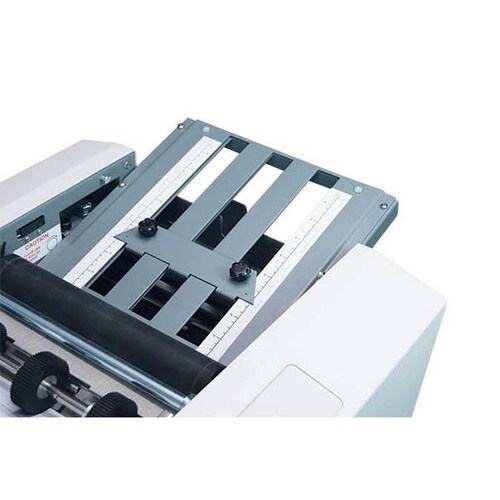

- Clearly Marked Fold Plates: Marked with five of the most popular folds
- Adjustable Catch Tray: Accommodates any fold type, stacks forms neatly and sequentially
- Optional 402 Series Jogger: Reduces static electricity from forms and aligns them for proper feeding
STANDARD FEATURES
- Color touchscreen control panel
- Compact desktop design
- Drop-in top feed system
- 14" form length capability
- Processes up to 100 forms per minute
- Z, C, uneven Z and C, half and custom folds
- Hopper holds up to 200 forms
- Easy-adjusted pre-marked fold plates
- Six-digit resettable counter
- Adjustable catch tray
- Adjustable infeed side guides
OPTIONS
- 18" Conveyor with photo eye
- Reverse Stacking Conveyor: Allows for A-to-Z input and A-to-Z output
- Locking Cabinet with casters
- 402 Series Jogger
SPECIFICATIONS
| Hopper Capacity | Up to 200 forms 20# |
|---|---|
| Fixed Speed | Up to 100 forms per minute, based on 11" Z fold |
| Paper Size | Up to 8.5" W x 14" L (216 x 356mm) |
| Fold Types | Z, C, Uneven Z and C, Half, Custom |
| Monthly Duty Cycle | Up to 35,000/month |
| Dimensions | 24" L x 17" W x 13" H (610 x 432 x 330mm) |
| Weight | 81 lbs (37kg) |
| Power | FD Model: 120 Volts AC 50/60Hz FE Model: 220 Volts AC 50/60Hz |
| Document Sequence | Standard sequence is A-to-Z input, Z-to-A output |
| Certifications | UL, CE, and CUL Approved |
| Made in USA |
U.S. Patents 5,772,841 5,865,925 5,968,308 6,264,592
