Formax AutoSeal FD 1406 Low-Volume Pressure Sealer

AutoSeal® FD 1406

LOW-VOLUME PRESSURE SEALER

• Color touchscreen control panel
• Drop-in feed system
• Six-digit resettable counter
• Processes up to 73 forms per minute
• Handles forms up to 14" long

The FD 1406 AutoSeal® is a user-friendly low-volume solution for processing pressure sensitive mailers, frequently used for applications that can be printed on one sheet, including checks, invoices, school reports, and tax forms. It processes a variety of forms, up to 14" in length, at speeds of up to 73 forms per minute. Standard features include a graphics-based color touchscreen, drop-in top feed system, adjustable catch tray, and clearly marked fold plates that can be set for custom folds. Fold types include Z, C, Uneven Z and C, Half and custom. The FD 1406 is proudly built in the USA with proven Formax technology, and is ideal for any church, school, or small business looking to utilize the convenience of pressure seal forms.

DESIGN

• Color Touchscreen Control Panel: Graphics-based and designed for easy, walk-up use
• Drop-In Feeding System: Produces dependable feeding of forms without paper fanning

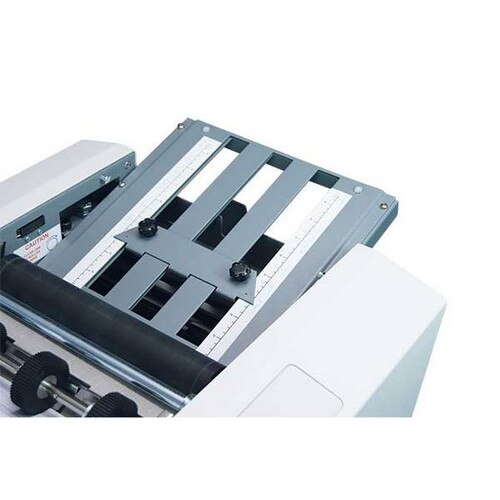

• Clearly Marked Fold Plates: Marked with five of the most popular folds
• Adjustable Catch Tray: Accommodates any fold type, stacks forms neatly and sequentially
• Compatible with Various Forms: Processes forms up to 14" long, in Z, C, Uneven Z/C, Half & Custom folds

STANDARD FEATURES

• Color touchscreen control panel
• Compact desktop design
• Drop-in top feed system
• 14" form length capability
• Processes up to 73 forms per minute
• Z, C, uneven Z and C, half and custom folds
• Hopper holds up to 160 forms
• Easy-to-adjust pre-marked fold plates
• Six-digit resettable counter
• Adjustable catch tray
• Adjustable infeed side guides

OPTIONS

• Locking cabinet with casters
• 402 Series Jogger

SPECIFICATIONS

WARRANTY SUPPORT

The FD 1406 comes with a 90-day factory-direct warranty* that includes phone support and depot service.

The following optional on-site services are also available:

• *On-site installation and training only (one visit), by our local provider
• *Service Contract providing preventive maintenance and on-site support after the 90-day warranty. (On-site installation and training not included with service contract but available separately.)

U.S. Patents 5,772,841 5,865,925 5,968,308 6,264,592

*90-day factory warranty begins at time of shipment to customers

** Will not process 14" uneven “c" forms. Will not process 14" uneven “Z" forms with an address panel less than 3 inches long.
