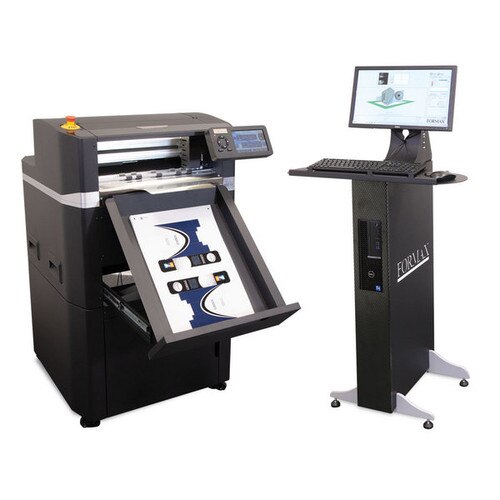

Formax Cut-True DDC50 Automatic High-Speed Digital Die Cutter

Cut-True DDC50

AUTOMATIC HIGH-SPEED DIGITAL DIE CUTTER

• Cut-Sheet Die-Cutting, Kiss-Cutting, Creasing and Perforating
• All-digital production with QR code recognition
• Processes mixed jobs in a single stack
• Ergonomic, compact, and mobile
• Cut-True Pro Production Studio Software included

The Cut-True DDC50 Digital Die Cutting System creates on-demand custom packaging, advertising displays, kiss-cut labels and more, with precision and easy setup. Fully automatic, it utilizes QR Code recognition to process mixed jobs in a single stack, transforming cut sheets up to 350 microns thick into virtually any shape imaginable. Features include a dual-action cutting/creasing head, high-capacity vacuum belt feeder, Cut-True Pro Production Studio Software, touchscreen control panel, and freestanding PC workstation for enhanced versatility. The Cut-True DDC50 sets the standard for on-demand print finishing with unmatched speed and accuracy in the mid-production market.

DESIGN

• QR Codes for Flexibility: Reads QR codes on mixed stacks of printed media and automatically recalls individual job settings
• Digital Cutting/Creasing Head: Dual-action head applies up to 750gf individually for both cutting and creasing tools

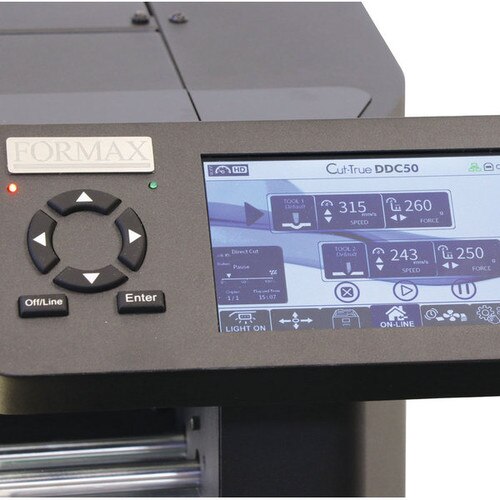

• 7-inch Touchscreen Control Panel: Graphics-based, pivots to various angles for user convenience

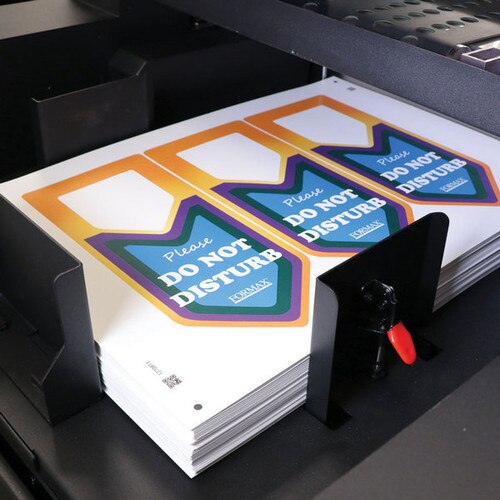

• High-Capacity Infeed Tray: Holds up to 1,000 sheets, media up to 28" long

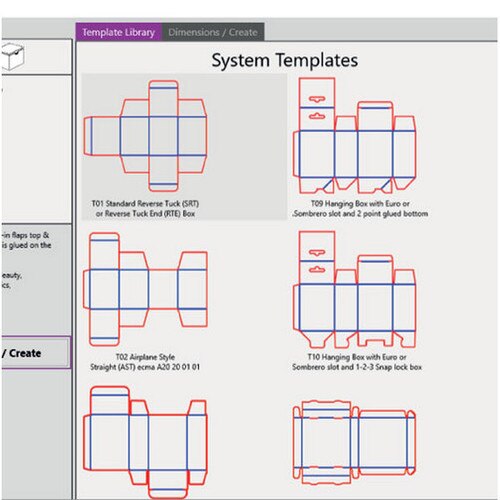

• Cut-True Pro Software: Easy-to-use interface, including template maker and job library
• Compact, Small Footprint: Space-saving integrated media catch tray folds away when not in use

STANDARD FEATURES

• All-digital production = no costly dies
• Dual-action cutting/creasing head
• Cut-True Pro Production Studio Software
• Processes mixed jobs in a single stack
• Includes PC workstation with stand
• Software integrates easily with Adobe Illustrator
• High capacity next-generation vacuum belt feeder
• 7-inch touchscreen control panel
• Automatic air blade and automatic jog function
• QR codes automatically link to Job Library file settings
• Dual grip & drive feed system

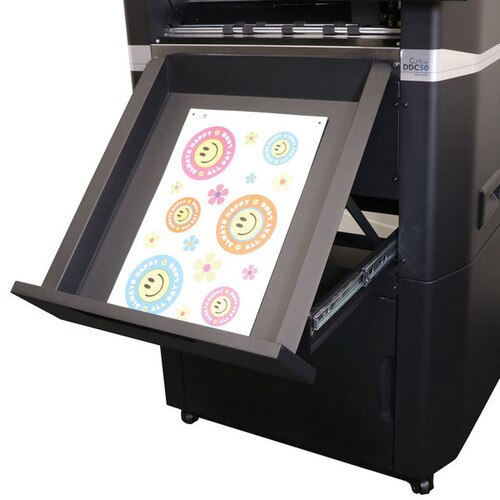

• Space-saving integrated media catch tray
• All-metal stand on casters for mobility
• Retention tags hold cut items in sheet
• Extendable paper infeed tray
• High-speed CCD camera registration for precision
• Revolutionary cutting strip for cut-through, creasing & kiss cutting

SUPPLIES

• DDC50-60 30° Cutting Blade, 3pk
• DDC50-70 45° Cutting Blade, 3pk
• DDC50-80 60° Cutting Blade, 3pk
• DDC50-30 Creasing Tool
• DDC50-40 Pen Tool
• DDC50-50 Premium Felt Cutting Strips, 2pk

SPECIFICATIONS
