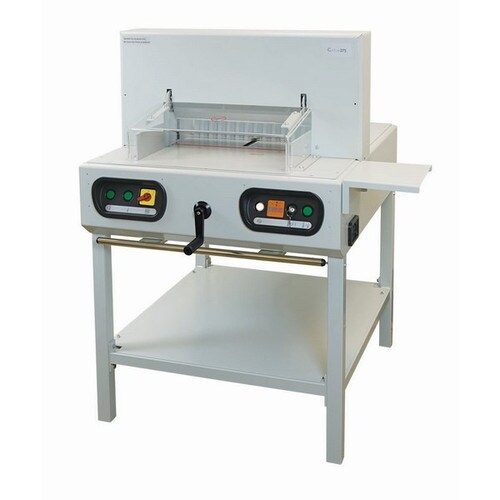

Formax Cut-True 27S Electric Paper Cutter
Details
Details
Cut-True 27S
ELECTRIC PAPER CUTTER
- LED laser for precision cutting
- Semi-automatic clamp and blade
- Cuts sheets up to 18.9" wide
- Front and rear safety guards
- Spindle-guided back gauge with LED display
- Precision Cutting with Minimal Effort - Hardened steel blade for razor sharp cuts, time after time
The Formax Cut-True 27S Semi-Automatic Electric Paper Cutter offers precision cutting for paper stacks up to up to 3.15" high and 18.9" wide. User-friendly features include dual-button electronic operation, automatic paper clamp, and LED digital readout. The bright red LED cutting line allows operators to make fine adjustments and see exactly where the blade will cut. Safety features include front and rear transparent safety guards, blade lock, safety lock with key, external blade depth adjustment, automatic blade return from any position, and an easy-to-use blade change safety tool.
DESIGN
- Rugged All-Metal Stand: Convenient storage shelf for tools and paper

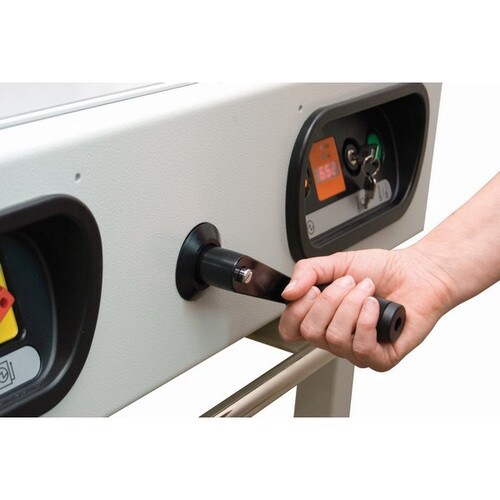

- Spindle Guided Back Gauge: Allows for fine adjustments in both inches and metric with LED display

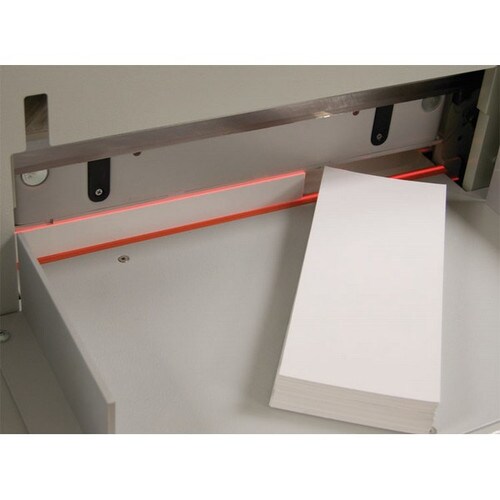

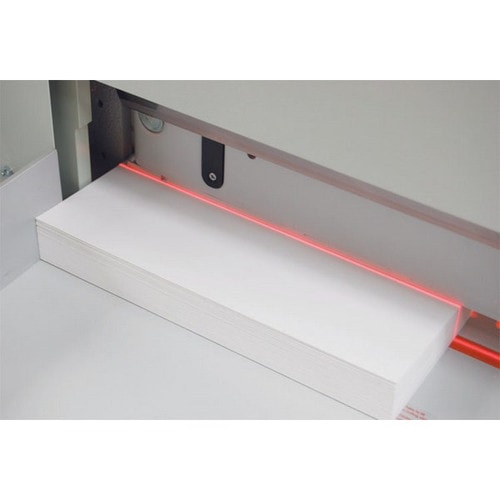

- LED Laser Cut Line: Shows where the blade will cut to make fine adjustments
- High-Quality Hardened Steel Blade: Accurately cuts stacks up to 3.15" high and 18.9" wide
- Blade Change Safety Tool Kit: Change blade safely and easily, and make adjustments
STANDARD FEATURES

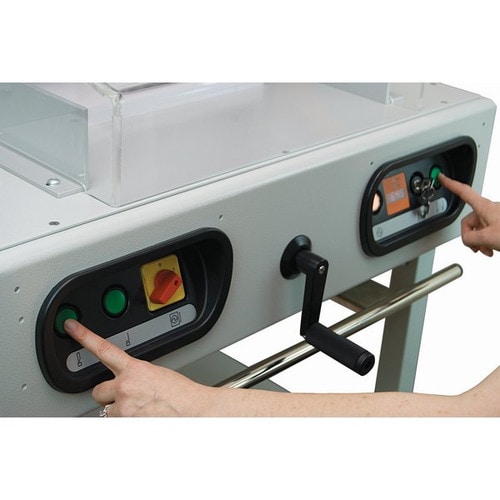

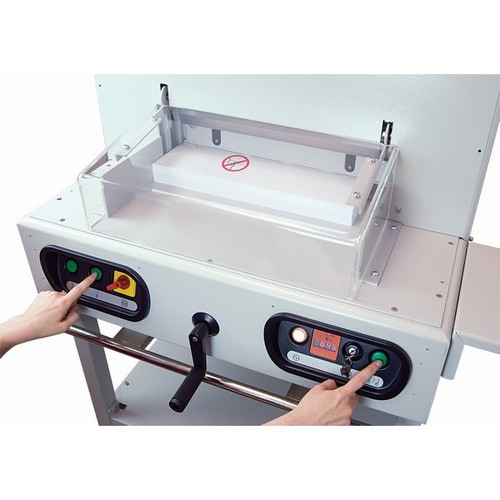

- Electronically-controlled two-hand operation
- Cuts paper stacks up to 3.15" H and 18.9" wide
- LED laser cutting line
- Automatic clamping system
- High-quality hardened steel blade
- Spindle-guided back gauge with LED display
- Safety lock with key
- Electronically-controlled front safety guard
- All-metal stand with shelf and side tables
- Transparent front and rear safety guard
- Automatic blade return from any position
- Calibrated scale in inches and metric
- Solid steel blade carrier
- Blade depth adjustment from outside machine
- Easy blade change access from the front
- Wooden paper push for safe alignment
- Blade change safety tool
SUPPLIES
- 27-10: Replacement Blade
- 27-20: Cutting Sticks, pkg of 8
SPECIFICATIONS
| Cutting Action | Dual-button electric |
| Maximum Cutting Width | Up to 18.9" (480mm) |
| Maximum Paper Stack Height | Up to 3.15" (80mm) |
| Length Behind Blade | 19.87" (505mm) |
| Length in Front of Blade | 12.37" (314mm) |
| Narrow Cut | 1.89" (48mm) |
| Table Size | 32" W x 37" D (811 x 941mm) |
| LED Laser Cut Line | Yes |
| Clamp Style | Automatic |
| Back Gauge Adjustment | Manual crank |
| Back Gauge Display | Digital, inches/metric |
| Blade Change Tool | Included |
| Dimensions | 51" H x 36" W x 39" D (1300 x 920 x 1000mm) |
| Weight | 550 lbs. (250kg) |
| Power Supply | 110V, 20A dedicated line |
| Safety Certifications | CE approved, UL pending |
