Formax ColorMaxLP3 Digital Color Label Printer

ColorMaxLP3

Digital Color Label Printer

• Compact, on-demand label printer
• Continuous roll-to-roll or print-and-cut operation
• Memjet print head features 70,400 inkjet nozzles
• Intuitive 7" color touchscreen
• Full-bleed CMYK printing up to 1600 x 1600 dpi

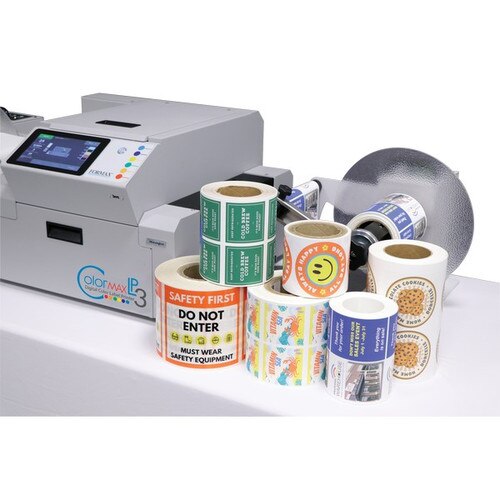

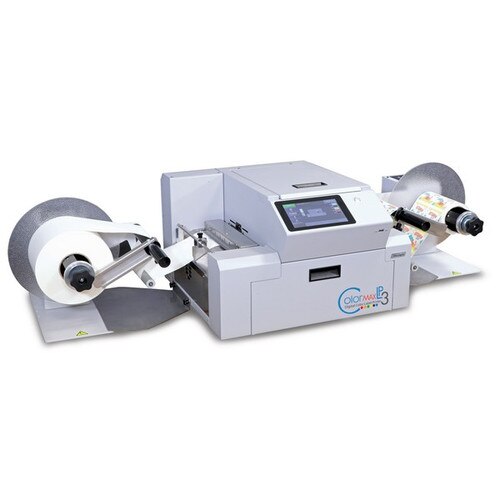

The ColorMaxLP3 produces brilliant full-color labels from a compact on-demand unit. Its high-speed standard Unwinder/ Rewinder System easily handles a variety of substrates for continuous roll-to-roll production at up to 60 fpm. The Memjet® print head features 70,400 inkjet nozzles for print resolution up to 1600 x 1600 dpi. High-capacity 250ml ink tanks allow for longer uninterrupted print runs. User-friendly features include an intuitive 7" color touchscreen with job storage,10-second warm start, and front access to ink cartridges.

DESIGN

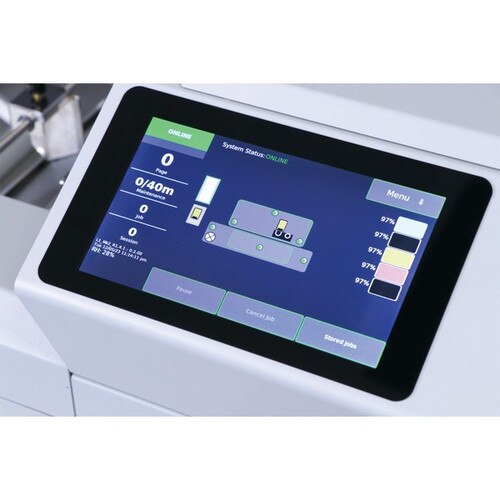

• Color Touchscreen Control Panel: Recall stored jobs, monitor status, check ink levels, perform maintenance operations
• Front Access Ink Replacement: 5 high-capacity 250ml ink tanks (CMYKK) are easy to access from the front, keeping the web intact
• Memjet® Inkjet Print Head: Stationary print head with no moving parts features 70,400 inkjet nozzles
• Compatible Across Substrates: Works easily with paper, polyester, polypropylene and vinyl label stocks

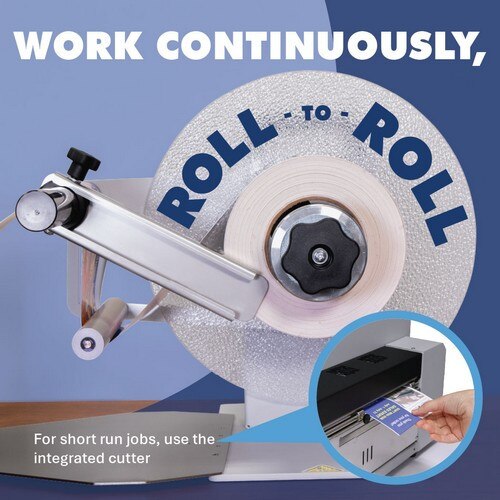

• Two Operating Modes: Continuous roll-to-roll for production, integrated cutter for short-run jobs

STANDARD FEATURES

• High-speed color label printing
• Memjet waterfall inkjet technology
• Full-color touchscreen
• Unwinder/Rewinder system
• Stationary print head w/70,400 nozzles
• Continuous roll-to-roll production
• Integrated cutter for short-run jobs
• Quick “warm start" in under 10 seconds
• Works with a variety of substrates
• Easily recall and edit stored print files
• Professional resolution 1600x1600 dpi
• On-the-fly maintenance keeps web intact
• Convenient front access to ink tanks
• Full-bleed labels up to 8.5" wide
• High-capacity ink tanks for low cost per print

SUPPLIES

• High-capacity ink tanks, 250ml each
• CJ-20 1600 dpi Memjet thermal inkjet print head

OPTIONS

CJ-16 Adjustable height cabinet

SPECIFICATIONS
