Formax ColorMax9 Digital Color Printer
Details
Details
ColorMax9
Digital Color Printer
- Full-color, dynamic data & graphics printing
- Vibrant pigment-based inks
- Intuitive 7" full-color touchscreen
- Handles a variety of media up to 15" wide
- Prints up to 10,000 #10 envelopes per hour
The ColorMax9 Digital Color Printer is the ideal solution for short-run inkjet printing. It provides full-color 1200 x 1200 dpi printing on envelopes and a variety of mailing and packaging materials. The system includes the printer and high-capacity intelligent belt feeder for incredible accuracy especially in landscape mode. Options include a 3-foot conveyor, a dedicated command station with PC and 32" curved monitor, and a sturdy workbench. The ColorMax9 utilizes HP print technology with vibrant pigment-based ink which resists fading, scratches, and water damage. Its wide print area and digital thickness control allow for media applications up to 1/2" thick and 15" wide. The intuitive 7" color touchscreen provides control over the entire process including image preview, system status, and access to up to 64 GB of stored print jobs.
DESIGN
- Feeder Alignment Deck ensures accurate prints in Landscape Mode

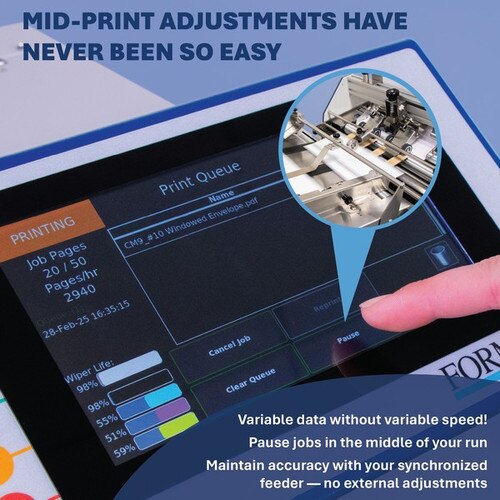

- Touchscreen Control Panel For centralized operation and easy adjustments
- Processes up to 10,000 #10 envelopes per hour: Production speeds in a robust tabletop printer
- ColorMax9 System - Printer, Intelligent Feeder & Alignment Deck
STANDARD FEATURES
- Full-color variable data and graphics
- Intuitive 7" color touchscreen
- Print width up to 11.7"
- Prints up to 10,000 #10 envelopes per hour
- Handles media up to 1/2" thick
- Built-in registration system
- CMYK output, up to 1200 x 1200 dpi
- Digital thickness control
- Intelligent belt feeding system
- Up to 64 GB of job storage
- Stationary print head w/59,000+ nozzles
- Vibrant pigment-based inks
- Automated print head maintenance
- Powered by HP print technology
- Prints up to 16.8 million colors
- All-metal housing
- Made in USA
CONFIGURATIONS
- ColorMax9 - Printer and Feeder
- ColorMax9C - Printer, Feeder, Conveyor
- ColorMax9Pro - Printer, Feeder, Conveyor and ColorMax Command Station
OPTIONS
- CCS9 ColorMax Command Station - mobile workstation, PC, and 32" curved monitor
- CK-10 3-foot Output Conveyor - 50" L
- CK-16 Workbench - 8’ L x 24" D x 29.5" H
- QUICKRIP RIP & Color Match Software
SUPPLIES
- HP High-capacity pigment-based inks
- CK-25 Print Head Maintenance Cartridge
- CK-26 Replacement Print Engine
SPECIFICATIONS
| Print Quality | Up to 1200 x 1200 dpi |
|---|---|
| Speed: Production | Up to 10,000 #10 envelopes/hour |
| Speed: High Quality | Up to 5,000 #10 envelopes/hour |
| Material Size | Min: 3" W x 3.75" L Max: 15" W x 15" L |
| Material Thickness | Up to 1/2" (12.5mm) |
| Image Area | Up to 11.7" H x 30" L (297 x 762mm) |
| Duty Cycle | Up to 500,000 per month, 30 million total |
| Ink Tank Capacity | C 238ml, M 233ml, Y 225ml, K 498ml |
| Ink Type | Pigment-based inkjet |
| Print Technology | HP Thermal Inkjet 4 Print Engine |
| Job Storage | Up to 64 GB |
| Fonts Available | All TrueType fonts available on PC |
| PC Interface | USB 2.0 & Ethernet |
| Dimensions | 60" L x 24" W x 26" H (152 x 61 x 66cm) |
| Weight | 195 lbs. (88kg) (Printer & Feeder) |
| Electrical | 110-240VAC, 50/60Hz / 2.5 A |
