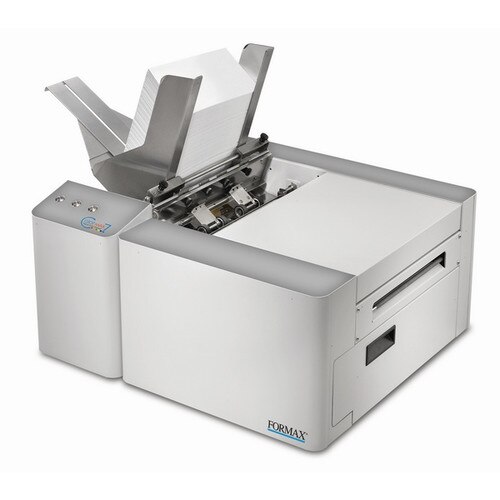

Formax ColorMax7 Digital Color Printer
Details
Details
ColorMax7
Digital Color Printer
- High-Speed CMYK Printing on a Variety of Media
- Memjet Print Head Features 70,400 Inkjet Nozzles
- Speeds of up to 7,500 Envelopes Per Hour
- Full-Bleed CMYK Printing up to 1600 x 1600 dpi
- High-Capacity Ink Tanks
The ColorMax7 Digital Color Printer uses innovative inkjet technology to produce full-color CMYK output, up to 16.8 million colors, on a variety of media, with full-bleed capability up to 8.5" wide. Its Memjet print head has 70,400 inkjet nozzles and no moving parts, for higher speeds, lower ink and maintenance costs and less noise. It can print up to 7,500 #10 envelopes per hour. Using thermal inkjet technology, it doesn’t require heat or contact to create an image, so it can safely be used with pre-printed envelopes and windowed envelopes without damaging the window or marring the original image. High-capacity ink tanks and fully-automated print head cleaning ensure print quality. An optional high-capacity belt conveyor is available.
DESIGN
- Built-In Top-Load Feeder: Easily reload during print runs, features a pressure roller transport system
- Lower Ink Cost Per-Page: Utilizes 5 high-capacity 250ml ink tanks (CMYKK)
- Memjet® Inkjet Print Head: Stationary print head is quiet and features 70,400 inkjet nozzles
- Full-Bleed CMYK Prints: Brilliant full-bleed CMYK output on envelopes, and sheets up to 8.5" wide
- Optional High-Capacity Belt Conveyor: Reach production-level output with an adjustable speed conveyor stacker
SUPPLIES
- High-capacity ink tanks, 250ml each
OPTIONS
- Belt Conveyor/Stacker
- cmColor RIP & Color Match Software
STANDARD FEATURES
- High-speed printing on a variety of media
- Prints on letterhead, envelopes, and more
- Full-color Memjet® thermal inkjet technology
- Safe to use with printed and window envelopes
- Speeds of up to 7,500 #10 per hour
- Print head has no moving parts
- Up to 1600 x 1600 dpi resolution
- Full-bleed capability up to 8.5" wide
- High capacity ink tanks
- Up to 16.8 million colors
- Built-in top-load feeder
- Automated print head maintenance system
- USB and ethernet PC interface
SPECIFICATIONS
| Speed, Page Printing | Up to 3,600 per hour |
|---|---|
| Speed, #10 Envelopes | Up to 7,500 per hour |
| Duty Cycle | 30 million pieces or 500,000 per month |
| Media Size | Min: 3" W x 4.25" L (76 x 108mm) Max: 9.5" W x 17" L (241 x 432mm) |
| Material Thickness | Up to 0.5mm / 430gsm 160# cover / 240# index |
| Print Quality | Up to 1600 x 1600 dpi @ 6 ips Up to 1600 x 800 dpi @ 12 ips |
| Print Area | Up to 8.5" W x 17" (216 x 432mm) |
| Ink Tank Capacity | C 250ml, M 250ml, Y 250ml, K 250ml x2 |
| Color Matrix | Up to 16.8 million colors |
| Hardware Required | Windows-based PC, XP and newer* |
| Fonts | All available TruType or Postscript |
| Dimensions | 24" (81" with conveyor) L x 20" W x 18" H (610 / 2057 x 508 x 457mm) |
| Weight | 90 lbs (41kg) |
| Electrical | 100VAC, 60Hz / 2A |
* Microsoft Office not supported
